Adjustable Coupling Relay Cristec Rcb+ From 50 To120 A

Name: ADJUSTABLE COUPLING RELAY CRISTEC RCB+ FROM 50 TO120 A
Brand: Cristec
SKU: 365545

Read more-Product description

230.90€

Recommended retail price : €245

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

CR-RCB-ADJ-120A

€230.90

Models & specificities Descriptive

Descriptive

Back to menu

Key features :

• 3-year warranty
• Adjustable current
• Lithium Ready
• Stabilized charging
• Compact
• Protection against reverse polarity

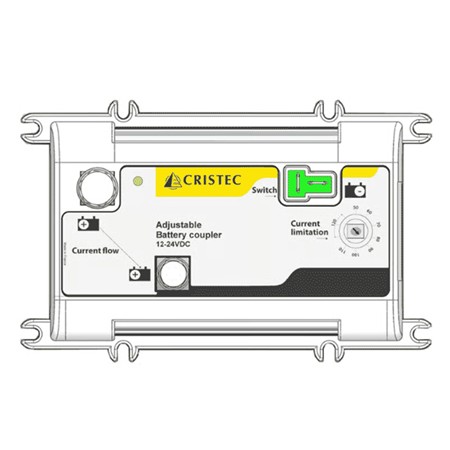

Battery coupling relay RCB+

12 & 24 VDC // With adjustment knobs (from 50 to 120 A)

With the increased use of Lithium batteries (LiFePo4) for onboard service systems, compatibility between different types of batteries has become a major issue. Indeed, the coexistence between starter batteries, often lead, and Lithium service batteries requires specific management of energy flows, particularly during alternator operation. The RCB+ relay from CRISTEC addresses this issue by providing an effective and secure connection between these two types of batteries.

This device is able to manage the current coming from the alternator by limiting it to the service battery, while prioritizing the charging of the starter battery.

The user can adjust this limit between 50 and 120A (depending on the model), thus ensuring flexibility according to the system's needs. This fine control helps preserve the alternator while optimizing battery charging.

USAGE ADVICE :
It is recommended to reserve about 30% of the alternator's capacity for the starter battery. For example, for a 110 Ah alternator, the limit can be set to 70A for the service. This type of setting ensures that the alternator is not overloaded, thereby increasing its lifespan.

• The current limitation can be set using a 50A to 120A coding wheel adjusted with a precision screwdriver
• Fast, complete and stabilized charging
• Compact : 159 x 100 x 36 mm / 0.45kg
• Maximum current to the service battery Adjustable (50 to 120A)
• Input voltages 12VDC , 24VDC
• Size of inputs and outputs M8
• Number of outputs 1
• Cooling Natural dissipation
• Operating temperature from -25°C to +65°C (-13°F to 149°F)
• Consumption 1.2mA@12V / 0.9mA@24V

User manual

Made in France(EN)
