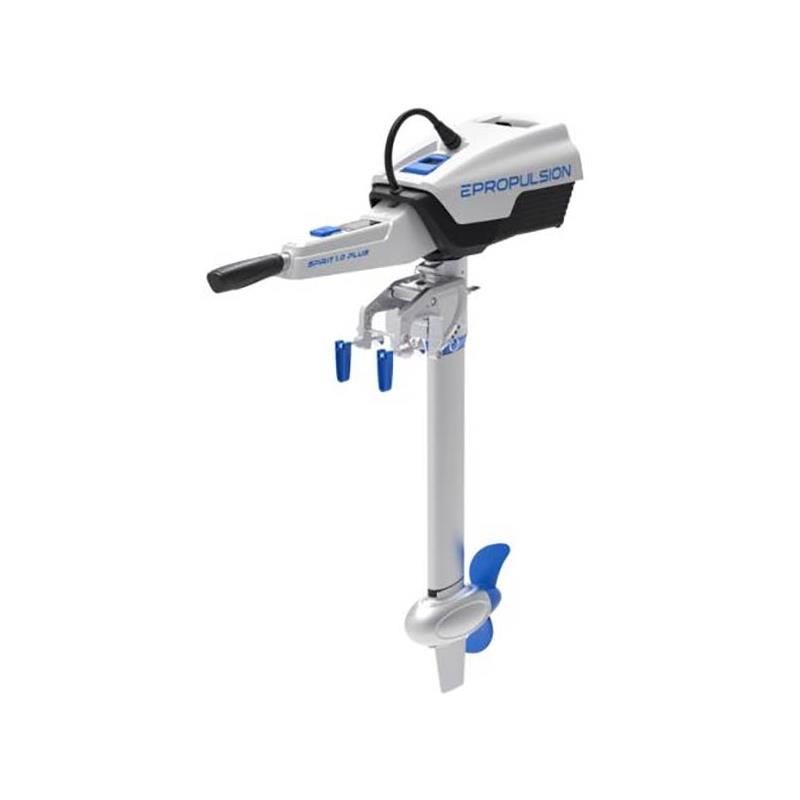

Electric Engine Epropulsion Spirit 1.0 Plus Xs

Read more-Product description

Epropulsion
2305.50
Recommended retail price : €2305.50
Alma
Pay it in 3 or 4 interest-free payments
20 days for returns
20 days for returns
Models & specificities Descriptive Reviews A question Besoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Weigth (kg)
Model
Shaft length (cm)
Price inc VAT
SP-0000-X1
19.1
Avec batterie
52.5
Models & specificities Descriptive Reviews A question Besoin de formation
Descriptive
Back to menu
The latest addition to the Spirit series, the Spirit 1.0 Plus was designed to meet the main requirement of electric motor users: increased range.
Identical physically to its predecessor (same weight and same power as the Spirit 1.0), it has a 1276 Wh battery, which is 25% more capacity than the 1028 Wh battery of the Spirit 1.0.
Thanks to the development of lithium battery technology, this new battery still retains the same weight and size due to its higher energy density: it offers 50% more range than other electric outboard motors of the same power from different brands, even at full throttle!
The operating voltage of 48 V for the Spirit 1.0 Plus allows it to work with an external battery for an even greater range! For this purpose, Epropulsion offers its E-Series lithium battery range and a replacement hood for the Spirit 1.0 Plus battery to dress up your motor.
The Epropulsion Spirit 1.0 Plus outboard motor thus remains the integrated battery electric outboard motor in its category with the greatest range currently on the market. It is perfectly suitable for propelling small boats, dinghies and yachts, up to 1.5 tons. It offers a propulsive power equivalent to that of a 3 HP gasoline outboard motor, and a thrust power equivalent to that of a 4 HP gasoline outboard motor.

Recommended transom height: 300 mm to 400 mm
Recommended motor size for shallow water navigation or for very small boats.

Motor specifications:
• Input power: 1 KW
• Propulsion power: 500 W
• Equivalent to a thermal outboard of (propulsion power): 3 hp
• Equivalent to a thermal outboard of (thrust): 4 hp
• Maximum overall efficiency: 55 %
• Static thrust: 66 Lbs
• Nominal voltage: 48 V
• Nominal current: 20.8 A
• Total weight: 19.1 kg (with battery)
• Continuous AV/AR acceleration: yes
• Shaft length: 525 mm
• Maximum propeller speed at full throttle: 1200 rpm
• Control: tiller
• Direction: 360°
• Tilting: manual: 75 °
• Tilt angles: 0°, 7°, 14°, 21°, 70° (manual syst.)
• Built-in computer: yes

Battery characteristics:
• Type: 1276 Wh Lithium Polymer
• Nominal voltage: 45.6 V
• Full charge voltage: 52.2 V
• Cut-off voltage: 33.6 V
• Temperature ranges: Charging: 0°C - 45°C / Discharging: -20°C - 60 °C
• Number of cycles (up to 80 % of its nominal capacity): 800
• Weight: 8.7 kg
• Dimensions (mm): 416 x 275 x 202

The Spirit 1.0 Plus XS motor comes standard with:
• Its rechargeable battery
• Its charger (never use another charger)
• Its propeller
• Its magnetic key
• Its French user manual

2-year Motor and battery warranty.
