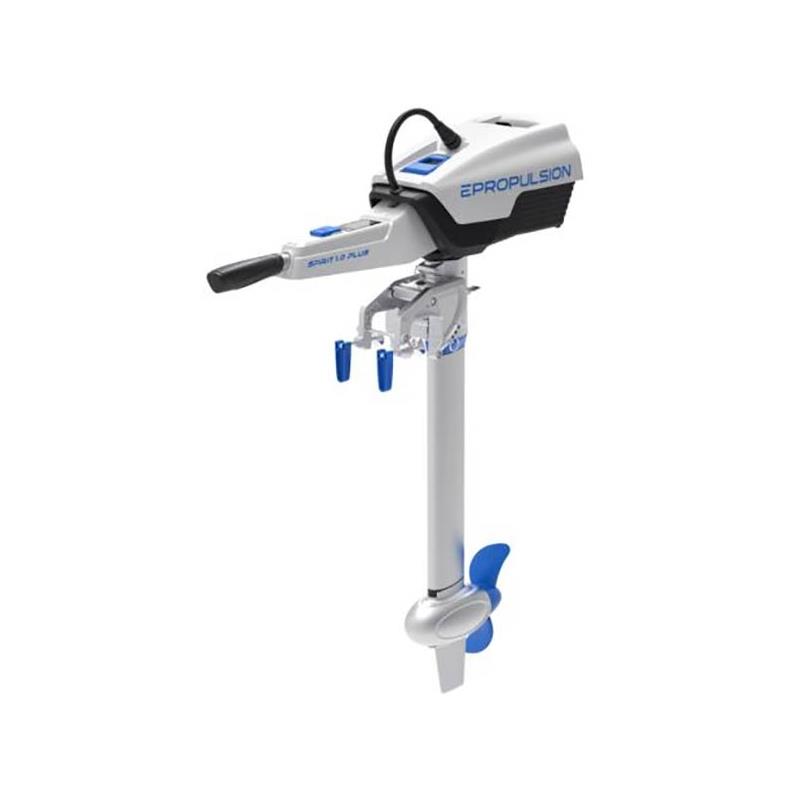

Electric Motor Epropulsion Spirit 1.0 Plus L

Read more-Product description

Epropulsion
2305.50
Recommended retail price : €2305.50
Alma
Pay it in 3 or 4 interest-free payments
20 days for returns
20 days for returns
Models & specificities Descriptive Reviews A question Besoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Weigth (kg)
Shaft length (cm)
Price inc VAT
SP-0000-L1
19.65
75
Models & specificities Descriptive Reviews A question Besoin de formation
Descriptive
Back to menu
the newest member of the spirit series, the spirit 1.0 plus has been designed to meet the main requirement of electric motor users: greater range.
physically identical to its predecessor (same weight and same power as the spirit 1.0), it features a 1276 Wh battery, i.e. 25% more capacity than the 1028 Wh battery of the spirit 1.0.
thanks to advances in lithium battery technology, this new battery nevertheless retains the same weight and size due to its higher energy density: it offers 50% more range than other electric outboard motors of the same power from different brands, even at full throttle!
the operating voltage of the spirit 1.0 plus of 48 V allows the spirit 1.0 plus to operate with an external battery for even greater range! To this end, epropulsion offers its range of e-serie lithium batteries and a cover to replace the spirit 1.0 plus battery to dress your motor.
the epropulsion spirit 1.0 plus outboard motor thus remains the integrated-battery electric outboard in its category with the greatest range currently on the market. It is perfectly suited for propelling dinghies, tenders and sailboats, up to 1.5 tonnes. It delivers propulsion power equivalent to that of a 3 hp petrol outboard motor, and thrust equivalent to that of a 4 hp petrol outboard motor.

recommended transom height : > 500 mm :

motor specifications :
• input power : 1 kW
• propulsion power : 500 W
• equivalent to a petrol outboard of (propulsion power) : 3 hp
• equivalent to a petrol outboard of (thrust) : 4 hp
• maximum overall efficiency : 55%
• static thrust : 66 lbs
• nominal voltage : 48 V
• nominal current : 20.8 A
• total weight : 19.6 kg (with battery)
• continuous forward/reverse throttle : yes
• shaft length : 750 mm
• maximum propeller speed at full throttle : 1200 rpm
• control : tiller
• steering : 360°
• tilt : manual : 75°
• trim angles : 0°, 7°, 14°, 21°, 70° (manual system)
• on-board computer : yes

battery specifications :
• type : 1276 Wh lithium polymer
• nominal voltage : 45.6 V
• full charge voltage : 52.2 V
• cut-off voltage : 33.6 V
• temperature ranges : charging: 0°C - 45°C / discharging: -20°C - 60°C
• number of cycles (to 80% of nominal capacity) : 800
• weight : 8.7 kg
• dimensions (mm) : 416 x 275 x 202

the spirit 1.0 plus l motor is supplied as standard :
• with its rechargeable battery
• its charger (never use any other charger)
• its propeller
• its magnetic key
• its user manual in French

engine and battery warranty of 2 years.
