| function | value |
|---|
| screen size | 5 inches |
| touchscreen | no |
| classic 2d | yes |
| down view | yes |
| side view | no |
| chirp | yes |
| gps | yes |
| bathymetry | yes |
| chart reader | yes |
| live | no |
| network | no |
*subtleties and options may be indicated in the full description, feel free to look further or ask for advice.
eagle® is designed to make fishing as simple and enjoyable as possible. easy to use and quick to install, eagle features hdi transducers, fishreveal™ technology and automatic settings for a fast and optimal configuration.
how to select the right hdi transducer?
the rule is quite simple! the 50/200hdi transducer is recommended for sea use and the 83/200hdi transducer for freshwater. there is no risk using an 83/200khz transducer at sea and vice versa! it's just a matter of depth between each transducer depending on the frequency used.
how to use your hdi transducer correctly?
for 2d fishfinder mode, each frequency opens a detection cone on the bottom that is more or less wide.
the high 200khz frequency opens a narrow, precise cone for vertical fishing and the lower 50 and/or 83khz frequency allows you to reach greater depths and/or to open a wide cone in shallow waters.
for hdi downscan mode at 455 and 800khz, it's an illumination of the bottom that varies depending on the frequency used. 800khz approx. 0 to 25m and 455khz beyond.
designed for fishing:
with its new robust and modern design made exclusively for anglers, by anglers, this simple self-adjusting fishfinder gives you optimal settings from the start so you don't have to spend time finding them yourself. moreover, an improved rotary locking connector makes installation and removal easier, making eagle an ideal portable solution for all fishing practices.
2d/hdi transducers:
the 2d/hdi transducers provide improved clarity, depth and sensitivity, all for optimal performance beneath the surface. additionally, fishreveal™ on downscan makes it easier than ever to distinguish fish from underwater vegetation. the strength of the eagle fishfinder: its "sharp eye", as its name suggests.

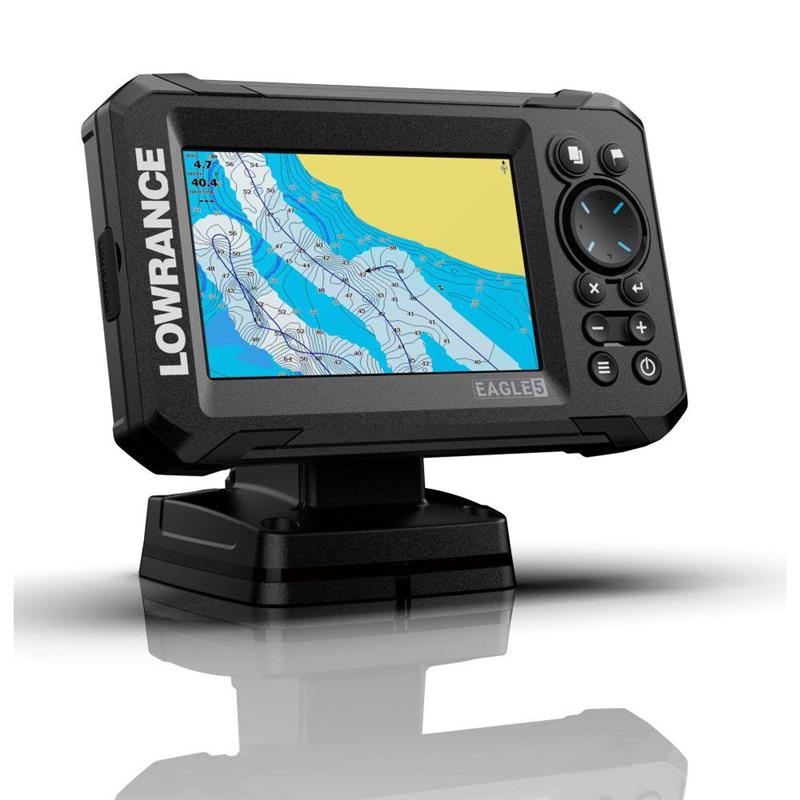

detailed mapping*:
eagle is supplied with a worldwide base map preloaded without details and offers the possibility of an upgrade to cmap® discover™.
thanks to genesis live, you can create custom bathymetric maps of your favorite lake or of still unexplored waters, with formidable precision and in real time, with all the details you need to discover and navigate faster to the best fishing spots. a simple blank micro SD card from stores of up to 32GB is required to activate the genesis live function on the mapping page.
eagle features a new analog IPS display offering improved resolution, clarity and visibility, even when you wear polarized sunglasses in full sunlight.
new color palettes allow you to adapt the display when facing changing conditions.

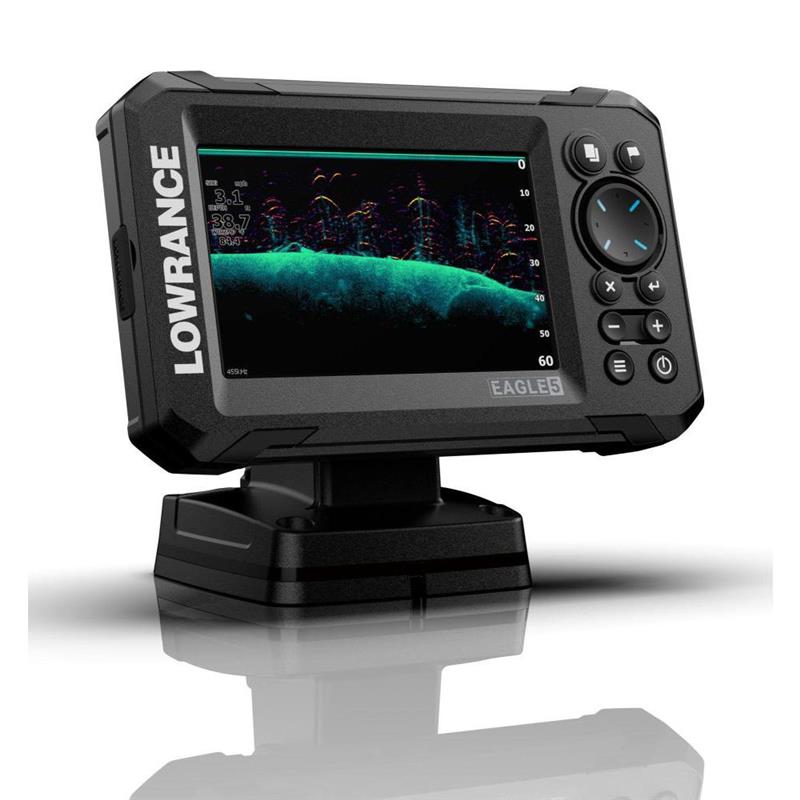

fishreveal function
fishreveal™ combines downscan imaging technology with chirp technology, making it easier than ever to distinguish fish from underwater vegetation. the strength of the eagle fishfinder: its sharp eye.
technical specifications :
• screen size 5''
• frequency 50/200 and/or 83/200 khz for 2d fishfinder mode
• frequency 455/800khz for downscan mode
• transducer type transom mount with 6ml cable for models with transom transducer
• protection rating ipx7
• analog IPS display
• screen resolution 800x480 pixels
• voltage 12v
• dimensions 182.1 x 113.2 x 110.6 mm
optional accessories :
• screen protection cover reference 000-16249-001
• flush mount gasket kit reference 000-16253-001
• spare power cable reference 000-16314-001
• screw cover clips 5/7/9 reference 000-16313-001
• replacement eagle 5 screen bracket reference 000-14170-001
• replacement locking nut for eagle transducer connector reference 000-16315-001
• hdi transducer 50/200 reference 000-15639-001
• hdi transducer 83/200 reference 000-15640-001
screen installation tip:
an articulated ram mount reference ra-h2 for example, allows you to position your screen as you wish and to orient it to your liking.
transducer installation tip:
a seanox stainless slide for transducer 410030/410050/410080 allows correct positioning of the transducer on your transom and to raise it by a few centimeters for launching to protect it.
eagle quick guide
eagle installation guide
