Lithium Battery Bsr Prestige Lifepo4 Gen3+ Spécial Brushless 24V100ah +1 Sortie Régulée Sondeur Et Chargeur Non Étan

Read more-Product description

BSR
2664
Recommended retail price : €2664
Alma
Pay it in 3 or 4 interest-free payments
20 days for returns
20 days for returns
Models & specificities Descriptive Reviews A question Besoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Voltage (V)
Amperage max.
Price inc VAT
BSR-BRUSH-24100+
€2664
24
100
€2664
Models & specificities Descriptive Reviews A question Besoin de formation
Descriptive
Back to menu
BRUSH 24100 GEN3+ BSR Prestige Special Brushless lithium battery in a 24V 100Ah case, supplied with a 10A charger and Bluetooth connection + an additional regulated 12V 30A waterproof output for your fishfinder(s) and electronic accessories.

The new GEN3 lithium battery range comes in an IPX7 waterproof transport case

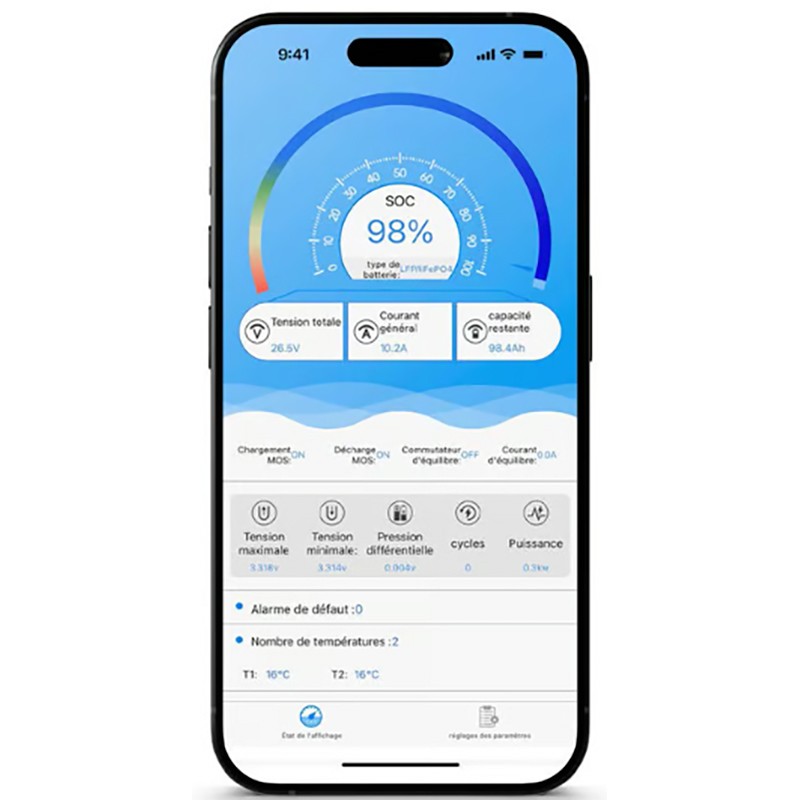

New generation 3: the BSR-Lithium app provides in real time:
• consumption
• number of cycles
• safety alert
• cell information monitoring
• voltage in volts
• temperature control
• state of charge

Designed for intensive boating use and specially developed to power Minn Kota Quest electric motors, which require an upgraded power supply to fully exploit their potential in terms of speed, control, constant power and efficiency + an additional regulated 12V 30A waterproof output for your fishfinder(s) and electronic accessories

Focus on your fishing session, the BSR GEN3+ battery takes care of the rest!

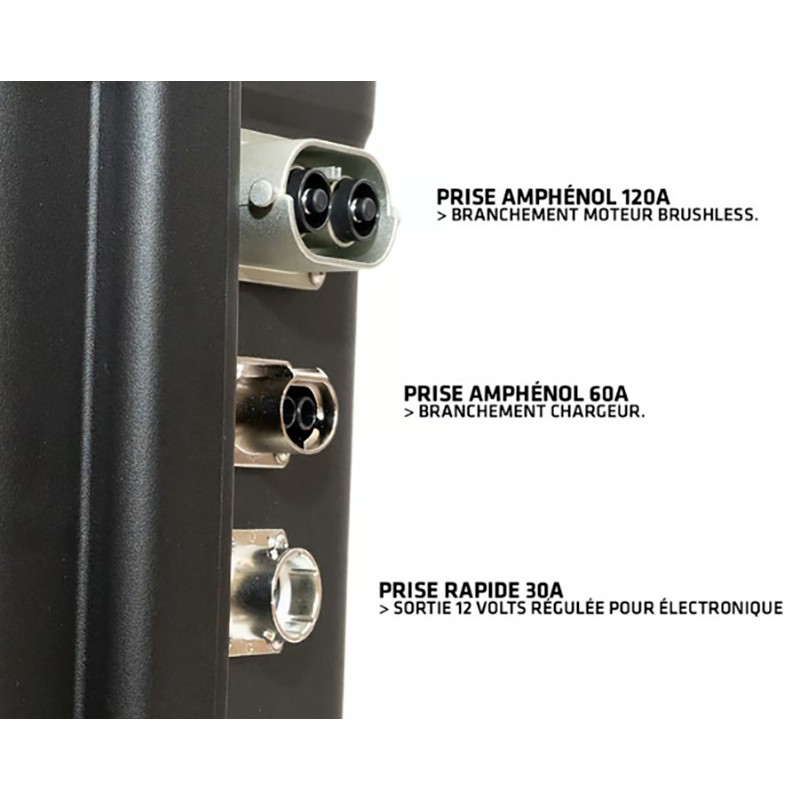

Amphénol connector 120A > brushless motor connection.
Amphénol connector 60A > charger connection.
Quick connector 30A > 13.8V regulated output for onboard electronics.

The integrated Nanuk auto-pressure valve equalises the atmospheric pressure difference. Using cutting-edge technology, the micro-vent lets air pass through while preventing water from getting in.

BSR Prestige Brushless GEN3+ battery specifications:
• type: 24V 100Ah
• voltage: 25.6V
• technology: LiFeP04 / 2560Wh
• discharge cycle: 2000-3000 at 100%
• dimensions (mm): 424x340x173mm
• net weight: 20.00 kg
• construction: suitcase
• connectors: quick waterproof motor connector 120A
• connectors: quick waterproof charger connector 60A
• fishfinder: quick waterproof fishfinder connector - 30A
• resistant to shock – vibration – sand – sea
• protection by integrated BMS 60A, breaker 60A, stainless steel fasteners.
• discharge: 2C i.e. 100A max
• cycle: 2000 at 100% DOD
• charge voltage: 29.2V
• connector waterproofing IP67 when coupled
• ideal charging temperature: 0 to 45 °C
• possible discharge temperature: -25 to +55 °C
• explosion-proof
• waterproof – IPX7
• fire standard: UL94 V0
• resistant to shock – vibration – sand – sea

Customer service in France
4-year warranty

In the box:
• 1 Prestige Brushless GEN3+ 24V 100Ah battery
• 1 29.2V 10A non-waterproof charger
• 1 quick charger connector 60A / IP67
• 1 quick motor connector 120A / IP67
• 1 fishfinder connector 30A - screw-on charger IP68/69

Additional optional connectors:
- additional male motor power connector ref BSR-PRMOT
- additional male fishfinder power connector ref BSR-PR30S
- non-waterproof charger 24V 10A Amphénol 60A connector ref BSR-CH24-P
