Reference
Price inc VAT
Voltage (V)
Amperage max.
Price inc VAT
BSR-BRUSH-36100+ (Unavailable)
€3586.50
36
100
€3586.50
Models & specificitiesDescriptiveReviewsA questionBesoin de formation
Descriptive
Back to menu

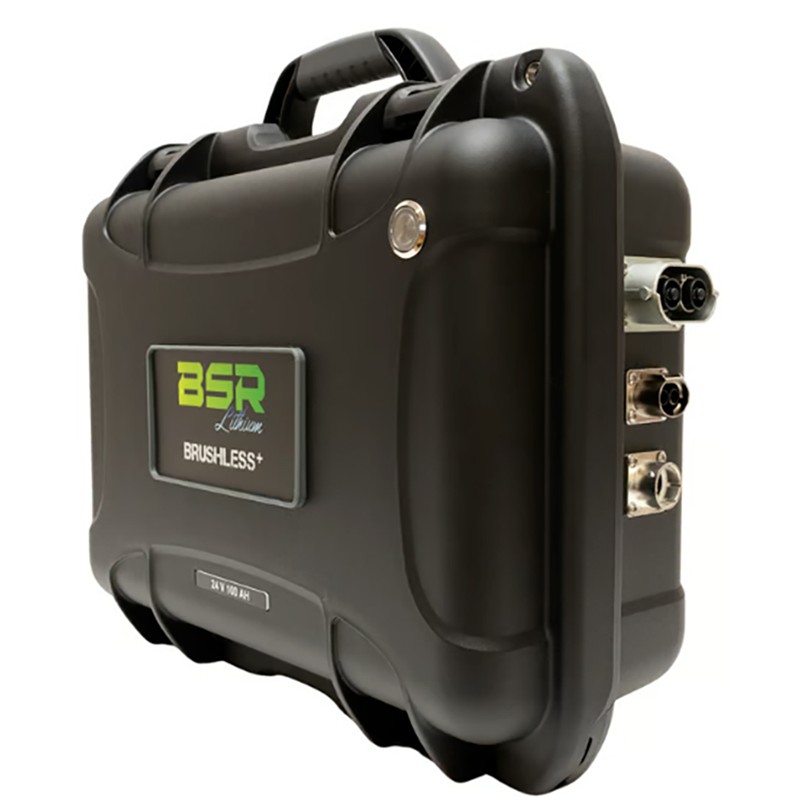

Brush 36100 Gen3+ BSR Prestige lithium battery, specially designed for brushless motors, in a transport case, 36V 100A, supplied with a 25A fast charger and Bluetooth connection + an additional regulated 12V 30A waterproof output for sonar(s) and electronic accessories.
The new Gen3 lithium battery range comes in an IPX7 waterproof transport case.

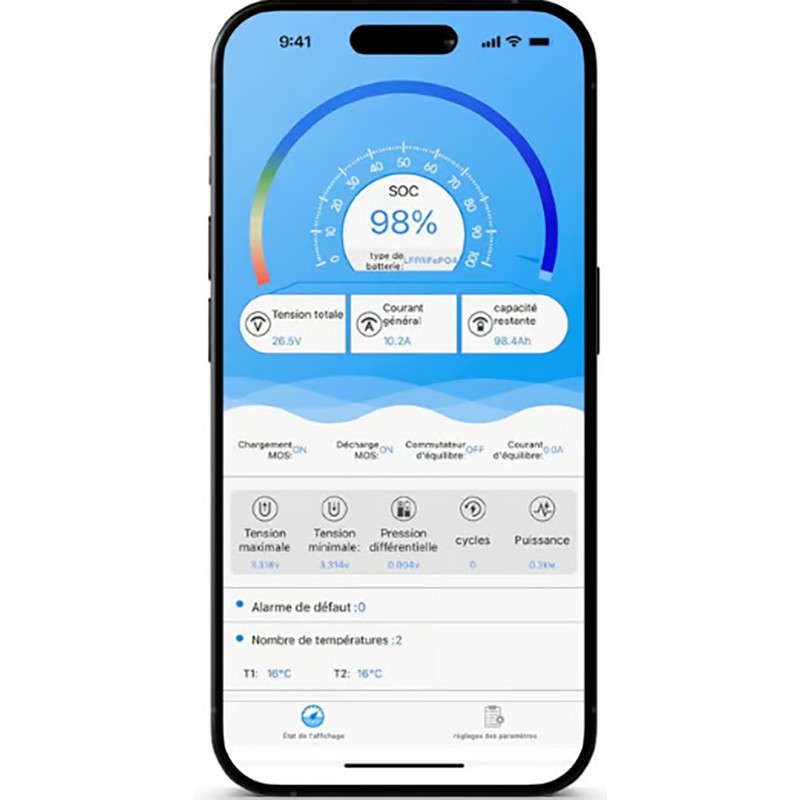

New Generation 3: BSR-Lithium app providing instant access to: • consumption • number of cycles • safety alerts • cell monitoring information • voltage in volts • temperature monitoring • state of charge
Developed for intensive use while underway and specially designed to power Minn Kota Quest electric motors, which required a revised power supply to fully exploit their potential in terms of speed, control, constant power and efficiency + an additional regulated 12V 30A waterproof output for sonar(s) and electronic accessories.
Focus on your fishing session, the BSR Gen3+ battery takes care of the rest.

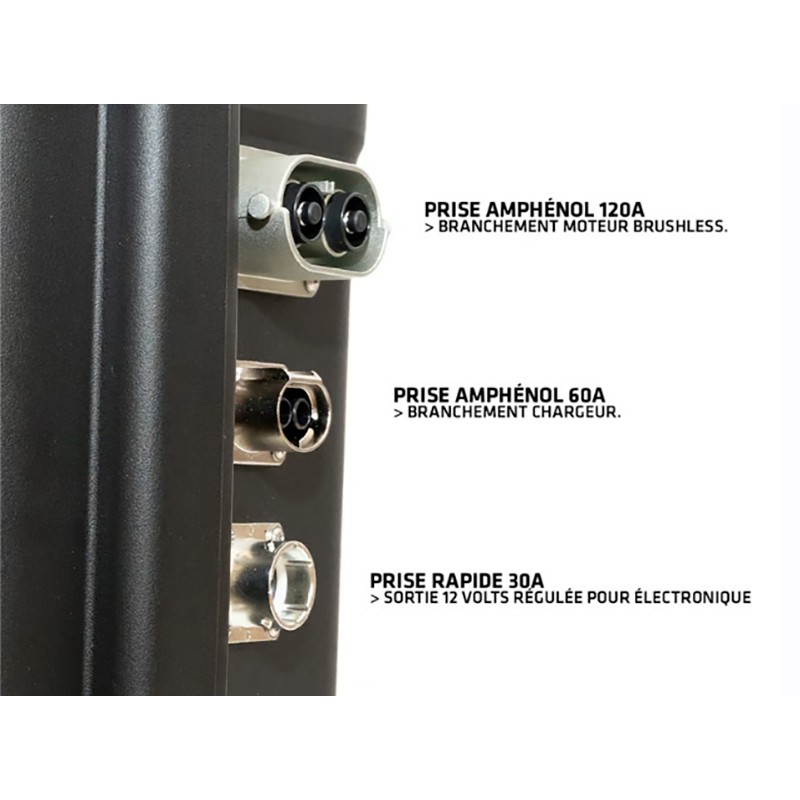

Amphenol connector 120A > brushless motor connection.
Amphenol connector 60A > charger connection.
Quick connector 30A > regulated 13.8V output for onboard electronics.
The integrated Nanuk automatic pressure valve equalises differences in atmospheric pressure. Using state-of-the-art technology, the micro-vent allows air to pass through while preventing water ingress.
BSR Prestige Brushless Gen3+ battery specifications: • type: 36V 100Ah • voltage: 38.4V • technology: LiFePO4 / 3840Wh • discharge cycle: 2000–3000 at 100% • dimensions (mm): 475 x 376 x 178 mm • net weight: 32.00 kg • structure: case • connectors: waterproof quick motor connector 120A • connectors: waterproof quick charger connector 60A • sonar: waterproof quick sonar connector – 30A • resistant to shock – vibration – sand – sea • protection by integrated 60A BMS, 60A breaker, stainless steel fasteners • discharge: 2C, i.e. 100A max • cycle life: 2000 at 100% DoD • charging voltage: 43.8V • connector waterproof rating IP67 when coupled • ideal charging temperature: 0 to 45 °C • permissible discharge temperature: -25 to +55 °C • explosion-proof • waterproof – IPX7 • fire standard: UL94 V0 • resistant to shock – vibration – sand – sea
Additional optional connectors: - additional male motor power connector ref bsr-prmot - additional male sonar power connector ref bsr-pr30s - non-waterproof fast charger 36V 10A Amphenol connector 60A ref bsr-ch36-p
