Models & specificitiesDescriptiveReviewsA questionBesoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Voltage (V)
Amperage max.
Weight (g)
Price inc VAT
BSR-VALG3-12100SOL (Unavailable)
€1895.50
12
100
12
€1895.50
Models & specificitiesDescriptiveReviewsA questionBesoin de formation
Descriptive
Back to menu

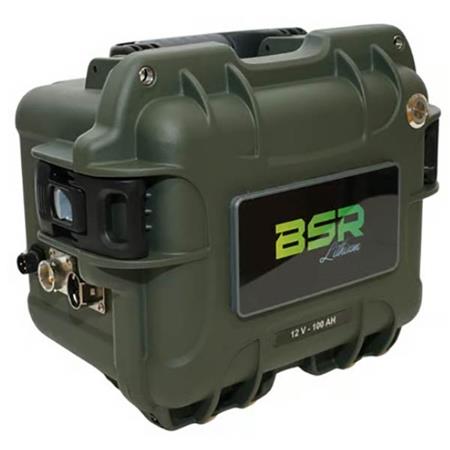

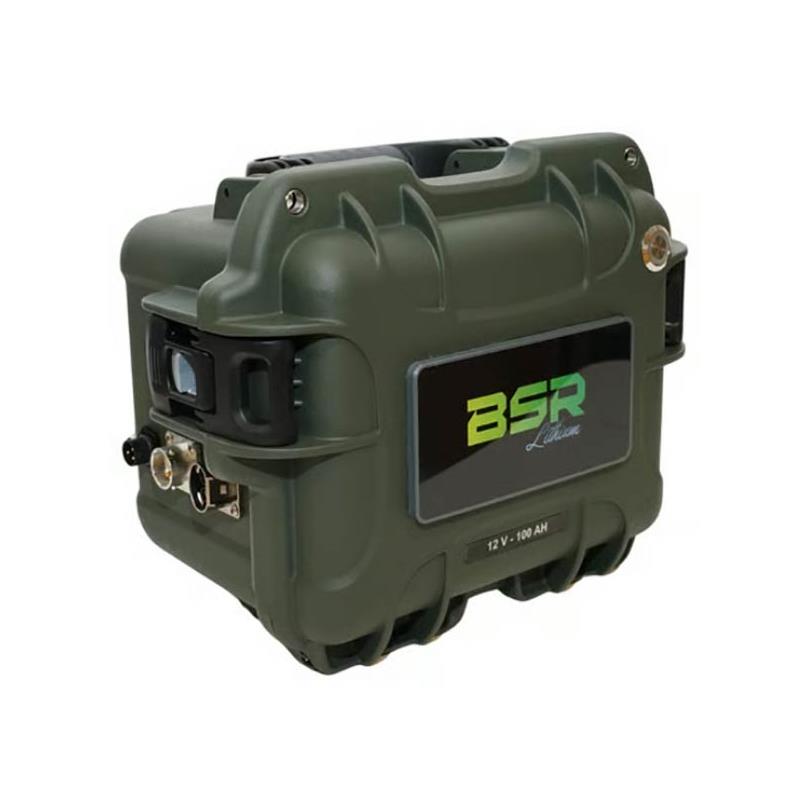

the bsr prestige+ lithium case battery series has been specially designed for intensive use in navigation, with particular attention paid to its optimal adaptation to power both minn kota® electric motors and humminbird® electronics.
• active balancing of 1a: during charge/discharge and at rest. • fire standard: ul94 vo only on the connectors • explosion-proof • 360 protection in interference-resistant alloy only on the fishfinder connector • structure resistant to shocks, vibrations, sand and seawater. • active balancing of 1a: during charge/discharge and at rest.
connectivity : • Amphenol 60a connector > motor & charger connection. • please check that your motor's consumption does not exceed the maximum consumption accepted by the battery. • max power = 60a • quick 30a connector > regulated 12 volts output for onboard electronics.

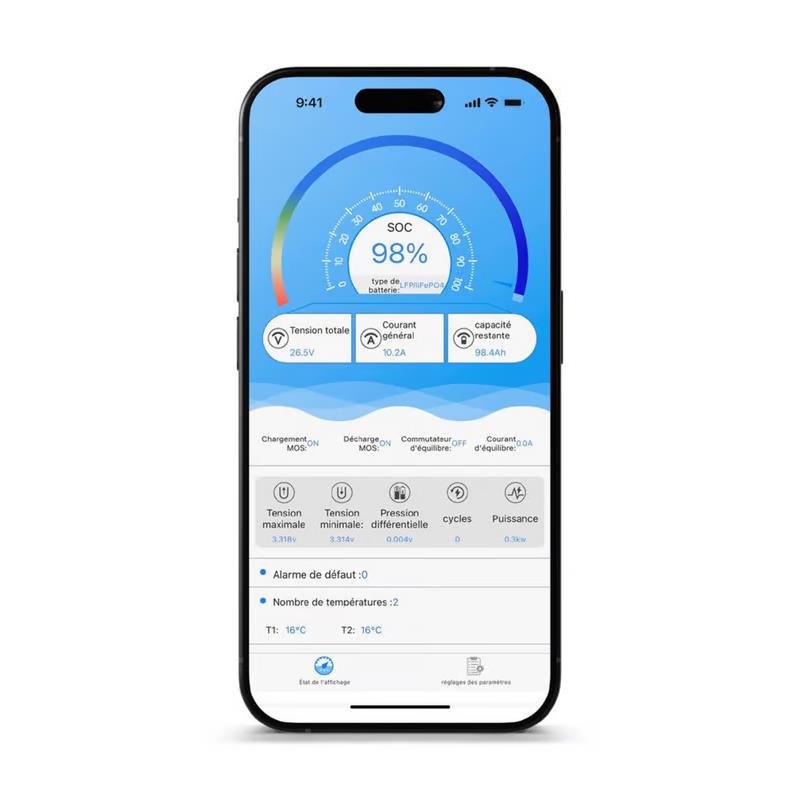

bsr-lithium app which provides in real time : • consumption • number of cycles • safety alert • cell monitoring • active balancing • remote after-sales service
bsr prestige gen3+ battery specifications: • type : 12v 100ah • voltage : 12.8v • technology : lifep04 / 1280 wh • discharge cycle : 2000-3000 at 100% • dimensions (mm) : 318x249x203mm • net weight : 12,00 kg • structure : case • connectivity : quick waterproof motor connector 60a • fishfinder : quick waterproof fishfinder connector - 30a • resistant to shock – vibration – sand – sea • protection by integrated 60a bms, 60a breaker, stainless hardware. • discharge : 2c i.e. 100a max • cycle : 2000 at 100% dod • charge voltage :14.6v • connector watertightness ip67 when coupled • ideal charging temperature : 0 to 45 °c • possible discharge temperature : -25 to +55°c • explosion-proof • waterproof – ipx7 • fire standard : ul94 v • resistant to shock – vibration – sand – sea
after-sales service in france -warranty 4 years

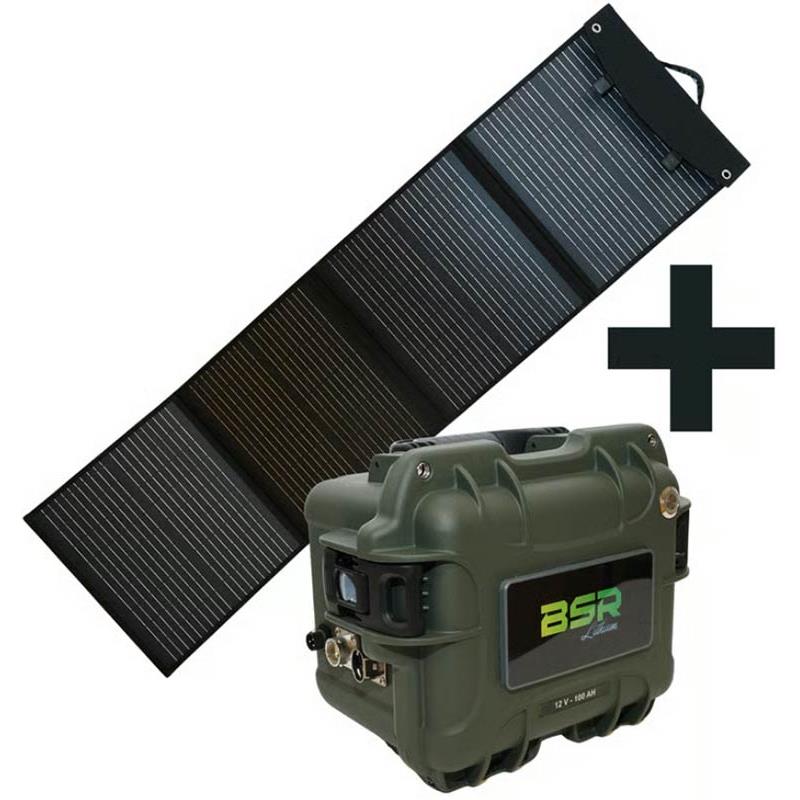

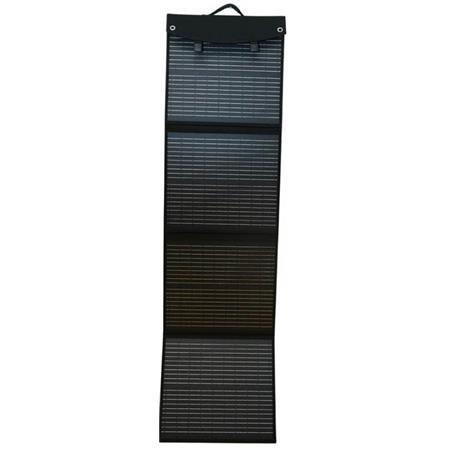

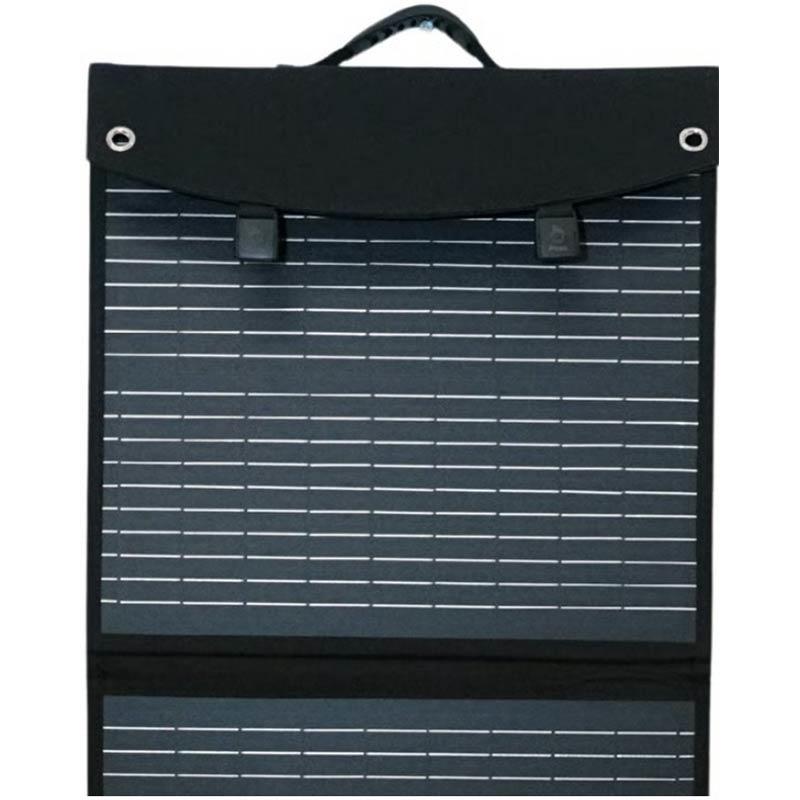

in the box : • 1 prestige+ 12v 50ah battery • 1 12.6v 10a non waterproof charger • 1 120w solar panel • 1 quick motor connector 60a / ip67 • 1 fishfinder connector 30a- screw-on charger ip68/69
additional optional connectors : • additional male motor power connector ref bsr-prmot • additional male fishfinder power connector ref bsr-pr30s
