Transducer Garmin Livescope Plus Lvs34 With Gls10 Module

Name: TRANSDUCER GARMIN LIVESCOPE PLUS LVS34 WITH GLS10 MODULE
Brand: Garmin
SKU: 245359
Rating: 5 (5 reviews)

Read more-Product description

(5 reviews)

~~€1977.50~~

Recommended retail price : €2254

Shipping within 24h

Pay it in 3 or 4 interest-free payments

20 days for returns

Receive our offers and promo codes by email
Subscribe to the newsletter

Models & specificities

Descriptive

Reviews

Models & specificities Descriptive Reviews

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Price inc VAT

010-02706-00

~~€1977.50~~

Shipped within

24h

Shipped within

24h

~~€1977.50~~

Models & specificities Descriptive Reviews

Descriptive

Back to menu

Excellence goes even further with the new Livescope LVS34 transducer.
The latest LiveScope technology, the LiveScope Plus system, offers better resolution, reduces noise and displays clearer images, with improved target separation.
See images clearly on a brighter screen, thanks to a more sensitive transducer and better target separation.

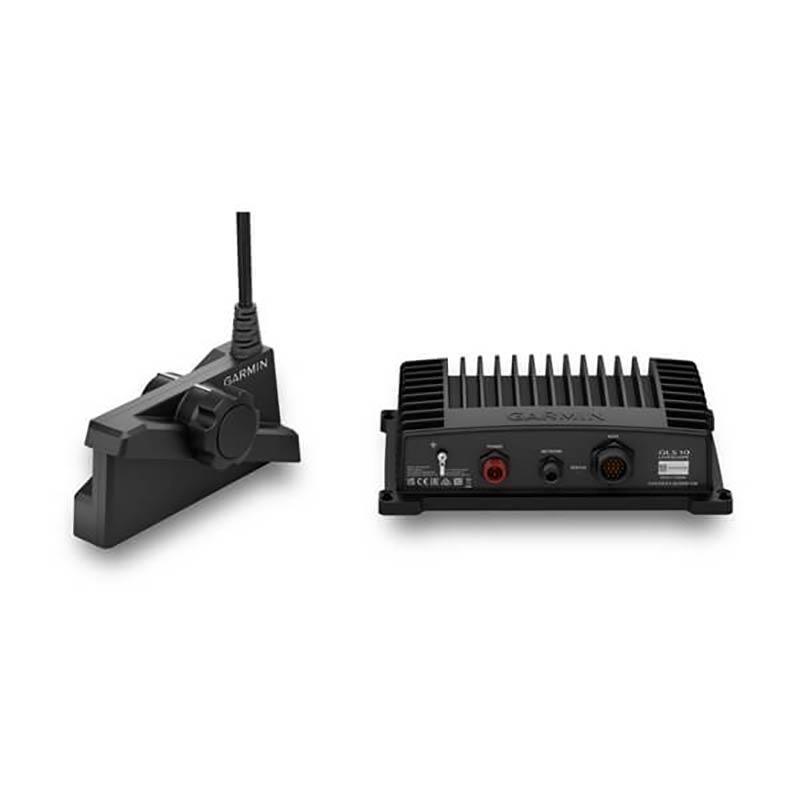

The LVS34 works with the GLS10 black box. To upgrade from the LVS32 to LiveScope Plus, simply change the transducer.

Different views and installation

Main features :
• LiveScope : Enjoy a very detailed, easy-to-interpret, real-time scanning sonar image of submerged structures, your lure and the fish moving under and around the boat, even when you are stationary.
• Simplified view change : Change the transducer orientation according to your fishing technique. Point the transducer forward to see what is happening around the boat (ideal for power fishing) or point it downward to see what is happening under the hull (vertical fishing). The Garmin unit automatically adjusts the view based on the transducer orientation.
• Maximum range : The sonar modes LiveScope Down and LiveScope Forward offer a maximum range of 61m.
• Stability : The integrated AHRS (Attitude Heading Reference System) ensures the beam is correctly oriented for a clear and sharp image, whatever the conditions.
• Easy installation : Plug-and-play installation. The GLS 10 sonar module integrates easily and simply with the rest of your Garmin setup.

Technical specifications :
• Dimensions :
- GLS 10 sonar module : 24.5 x 14.9 x 6.5 cm
- LVS34 transducer : 16.2 x 7.8 x 4.8 cm
• Water resistance rating : IPX7
- Weight GLS 10 sonar module : 2.0 kg
- Weight LVS34 transducer : 1.02 kg
• Temperature range :
- Operating : -15° C to +70° C
- Storage : -40° C to 85° C
• Frequencies : 530 kHz - 1.100 KHZ
• Maximum range (Down and Forward) : 61.0 m
• Power consumption : 21W standard (58W max)
• Power supply : 10-32 V
• Box dimensions : 23.3 x 17.4 x 17.2 cm
• Box weight : 4.3 k

In the box :
• LiveScope GLS 10 sonar black box
• Panoptix LVS34 transducer
• Perspective mode mount

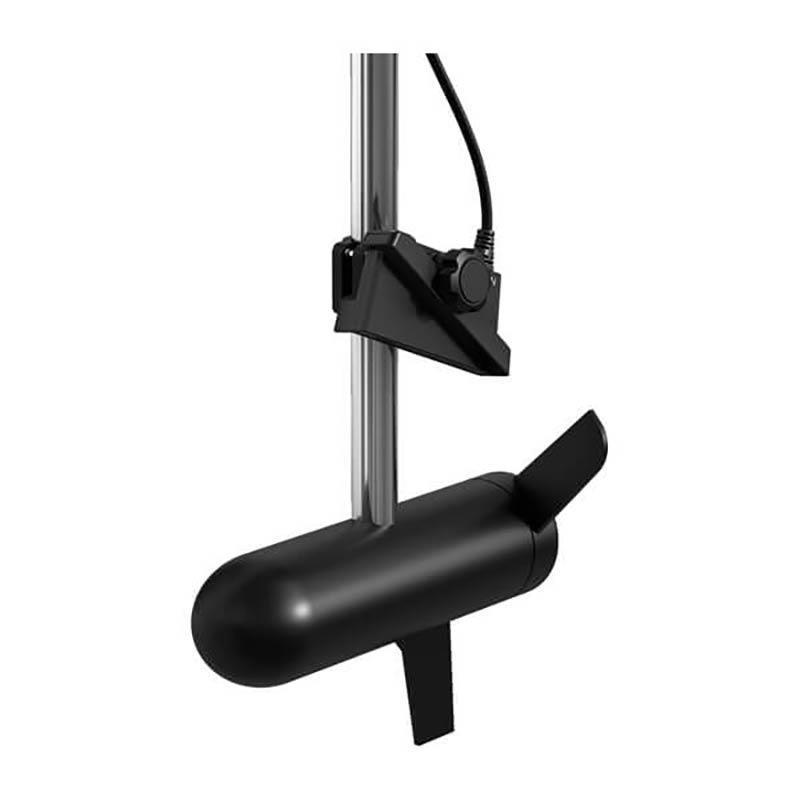

• Mount for the electric motor bracket
• Shaft mount
• Power cable
• Garmin Marine Network 2-meter cable (small connector)
• Network adapter cable
• Documentation

LVS32 vs LVS12 comparison

Advice for installing the Panoptix LiveScope transducer.
To get the most out of the PANOPTIX LIVESCOPE transducer's potential, it is recommended to use the adjustable PIKE'N BASS Transducer Pole offered in the long 2 m version reference 410170 for use at sea, in the Standard 1.90 m version reference 410168 for use at sea and/or in fresh water and in the short PIKE'N BASS 1 m version reference 410169 for fresh water. This transducer pole allows quick deployment of your transducer and 360° orientation to optimize the view on your screen in all circumstances. It folds easily into a horizontal position to allow you to leave your complete installation safely on your boat during high-speed navigation but also on the road during transport.

Optional accessories :
• Panoptix LiveScope Perspective Mode transducer mounting kit reference 010-12970-00
• LiveScope Plus LVS34 transducer only reference 010-02706-10

Installation guide
