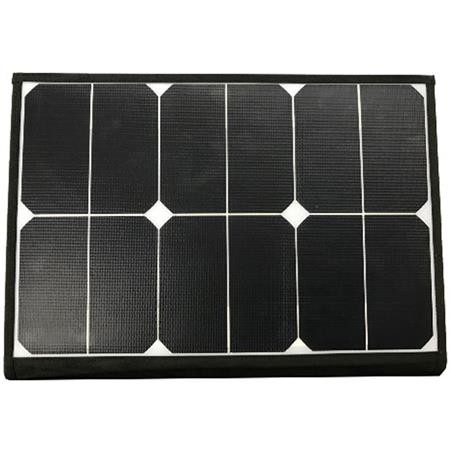

Solar Panel Epropulsion For Motor Spirit 1.0 Plus / Evo

Read more-Product description

Epropulsion
369
Recommended retail price : €369
Alma
Pay it in 3 or 4 interest-free payments
20 days for returns
20 days for returns
Models & specificities Descriptive Reviews A question Besoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Price inc VAT
FS-P000-00
Models & specificities Descriptive Reviews A question Besoin de formation
Descriptive
Back to menu
economical and eco-friendly, the 100 w epropulsion solar panel plugs into your battery in no time whether you are at a stop or the engine is running! in strong sunlight, you thus have perfect autonomy for a continuous trip at idle.

warning to recharge the epropulsion spirit 1.0 plus battery, it is mandatory to use the 12v solar charger reference sp-c003-00

specifications :
• unfolded panel dimensions (mm) : 1430 x 525 x 5
• folded panel dimensions (mm) : 525 x 360 x 28
• weight : 2.3 kg
• open-circuit voltage (voc) : 21.6v (not below 20.5v)
• short-circuit current (lsc) : 6.1a (not below 5.8a)
• maximum supply voltage (vm) : 18v (not below 17.5v)
• maximum power current (lm) : 5.56a (not below 5.4a)
• maximum power (ppm) : 100w ± 5%
• fill factor (ff) : ≥ 76%
• conversion efficiency (eff) : 20% ± 2%
• temperature coefficient of iso (lm) : +0.10%/°c (3.5±0.01%) ma/k
• number of connection cells : 1=1x4pcs
• temperature coefficient of voc (vm) : -0.38%/°c ((54±10) mv/k)
• temperature coefficient of power : -0.47%/°c ((0.38±0.05) %/k)
• noct (nominal operating cell temperature) : 47 °c (±2°c)
• operating temperature range
• temperature range : -10 ~ 65 °c / optimal operating temperature : 25 °c

no need for a carrying bag, the epropulsion solar panel is easy and convenient to transport thanks to its "suitcase" format once folded!

optional solar charger ref sp-c003-00 :
