Because one does not go without the other!!
For optimal configuration of your LOWRANCE Fishfinder GPS combination compatible with HDS PRO, HDS LIVE, HDS Carbon and Elite FS, this ACTIVE TARGET 2 transducer pack and Railblaza Pole 60 transducer pole is the ultimate solution for real-time images.

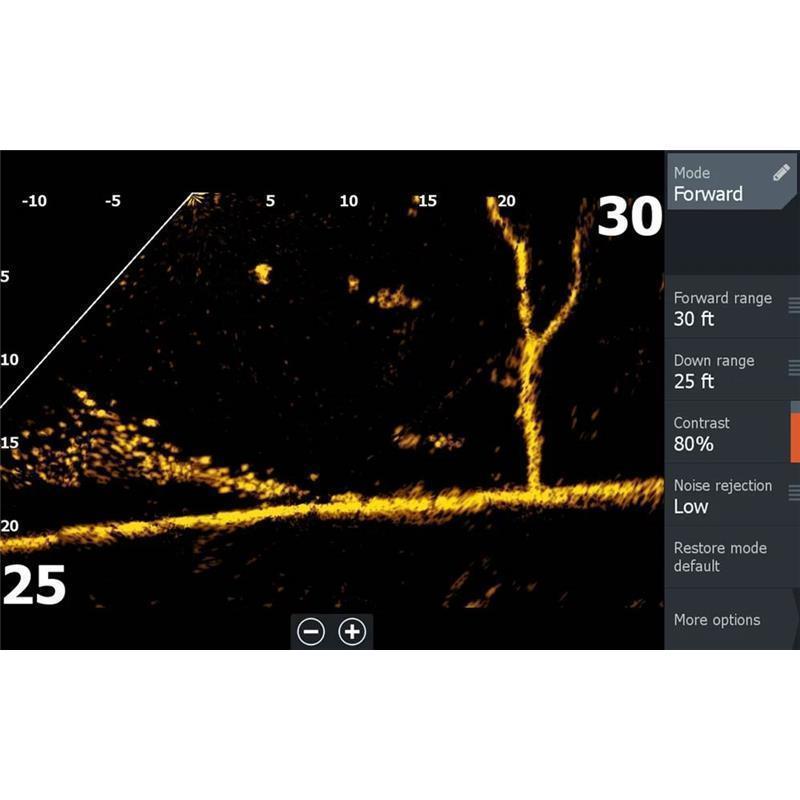

The ACTIVE TARGET 2 transducer gives you real-time images on 3 views Forward, Down and scout and thus complements your fishfinder's technologies. It is therefore essential to use the Railblaza Pole 60 transducer pole which installs easily on all types of boats thanks to its removable base and multiple adjustments.
A removable and foldable transducer pole with perfect stability!!
LIVE technology is increasingly used for the search of various predators whether in fresh or sea water. RAILBLAZA has developed the appropriate transducer pole in two foldable sections with low footprint, easily removable and reliable HEXX LIVE POLE 60!!
360° ROTATION CAPACITY-This allows you to get the perfect viewing angle for your live sonar transducer each time. No need to struggle to get a good view - simply rotate the pole until you get the perfect angle!
EASY FOLDING DESIGN- The HEXX Live Pole 30 folds up quickly when not in use, making it easy to store on your small boat. When you need it, it's ready for use in minutes!
DIRECTION INDICATOR-Keep your transducer pointed towards your targets with this handy direction indicator. Ensure you always get the most accurate readings possible thanks to this excellent feature!
SOFT GRIP HANDLE- Located at hip level, the soft grip handle makes use easy and comfortable, even in tough conditions.
Technical characteristics: • Adjustable handle • Quick disassembly • Trim adjustment ring with viewfinder • Receiver adaptable on flat support and rail • Tube diameter of 32mm • 2 Equal sections of 700 mm • Folded footprint of 827 mm • Total height with handle 1550 mm • Lower tube part height 1480 mm • Total depth 386mm • Max horizontal tube offset 331mm • Cable management clips provided • Weight 2.50kg
Power supply tips:
The ACTIVE TARGET 2 transducer is powered by a 12v supply in addition to your fishfinder. You need to provide enough Ampere power on your 12V battery for good autonomy over a full day.
It is recommended to install a switch on the power supply of your ACTIVE TARGET 2 transducer in order to be able to cut it off when moving on the water.
Tips for installing the ACTIVE TARGET 2 transducer on the removable transducer pole:
The transducer pole is generally mounted on the starboard side and next to the steering position in order to be able to adjust the orientation of your transducer when sitting on your console seat on your boat and to be able to enjoy a complete view if you are two fishermen in vertical fishing mode.
For navigation with a thermal engine and at high speed, you must fold your pole back to a horizontal position in order to avoid any risk of damage and thus protect your transducer.
Optional SONDE support accessories:
• ActiveTarget transducer Rear Mounting Kit reference LW000-15773-001 • ActiveTarget 2 Scout + Scout Wide double transducer Mounting Kit for electric motor or transducer pole reference LW000-15960-001
User Manual
