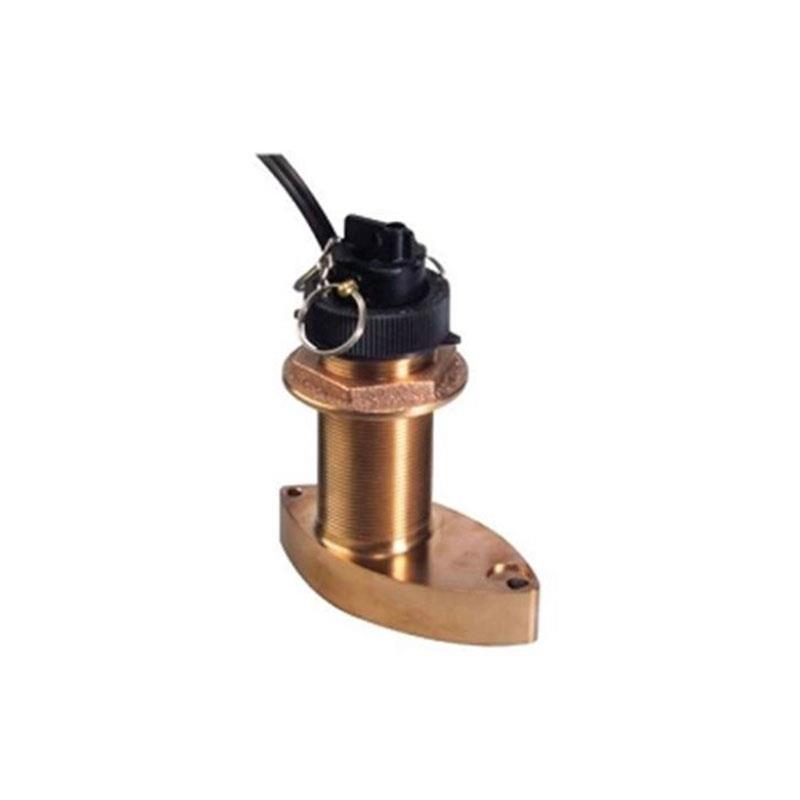

Through-Hull Transducer Airmar B744v

Name: THROUGH-HULL TRANSDUCER AIRMAR B744V
Brand: Airmar
SKU: 193344

Read more-Product description

737€

Recommended retail price : €737

Pay it in 3 or 4 interest-free payments

20 days for returns

Receive our offers and promo codes by email
Subscribe to the newsletter

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Model

Frequency (kHz)

Cons. (W)

Transducer

Price inc VAT

AI-31-658-1-02

€737

With temperature

50/200

600

Bronze Through-Hull Transducer

€737

Models & specificities Descriptive

Descriptive

Back to menu

The SB50200TR-4 transducer provides a 45°/12° beam and fits hull deadrise angles up to 24° with a fairing block.

The SB50200TR-4 three-function depth, speed and temperature transducer is housed in a single through-hull unit. It is ideal for all 600W fishfinders and requires only one hole in the hull.
More innovation: the valve assembly (patented) prevents water from entering the hull when the insert is removed for cleaning or storage. The innovative housing design allows the three-function sensor to be fully recessed into its custom high-performance fairing block. The end result is a simplified installation. At speeds above 30 knots (34 MPH), the sensor will produce clear images and solid bottom tracking!
Ideal for offshore fishing or coastal fishing in shallow and medium depths, and for deep-water lake fishing.

The SB50200TR-4 transducer is compatible with Bottom Discrimination and ACCUFISH for FURUNO fishfinders FCV627, FCV587, FCV628 and FCV588, BBDS1, DFF1, TZTL12F and TZTL15F and on FURUNO combo units GP1871F, GP1971F.

Bottom Discrimination:
• Seabeds are made up of very different elements that are often impossible to see. Yet we would like to know their nature to position ourselves on the best fish-rich fishing spot or to know where to drop the anchor on a suitable bottom.
• Bottom discrimination technology offers the ability, in addition to classic fishfinder functions, to analyze and illustrate the nature of the bottom: mud, sand, gravel or rock, in depths from 5 to 100 m.
• This sensor is also compatible with the REZBOOST function of the FCV628, FCV588 and the TZTL12F and TZTL15F.

Fishing Applications:
• Coastal fishing or mid-depth fishing
• Low-speed trolling, drift fishing or structure fishing
• Deep-water lake fishing

Features:
• Depth, speed and temperature in a single housing
• Patented auto-closing valve reduces water flow into the hull when the paddlewheel insert is removed
• Number of pins: 10
• Operating speed: 1 knot to 45 knots (1 MPH to 52 MPH)
• Fins on the sides of the paddlewheel cavity that provide better accuracy of cross-flow conditions
• Boat size: up to 9 meters (30')
• Compatible with FURUNO fishfinders FCV585, FCV587, FCV627, FCV628, FCV588, LS4100, LS6100, BBDS1, DFF1, TZTL12F and TZTL15F and FURUNO combo units GP1670F, GP1870F
• Supplied without fairing block

Box contents:
• 1 bronze transducer with its power cable
• 1 base with installation hardware
