| Function | Value |
|---|
| Screen size | 16 inches |
| Touchscreen | yes |
| Classic 2D | yes |
| Down View | yes |
| Side View | yes |
| Chirp | yes |
| GPS | yes |
| Bathymetry | yes |
| Chart viewer | yes |
| Live | yes with optional transducer |
| Network | yes |
*subtleties and options may be indicated in the full description, feel free to explore further or ask for advice.

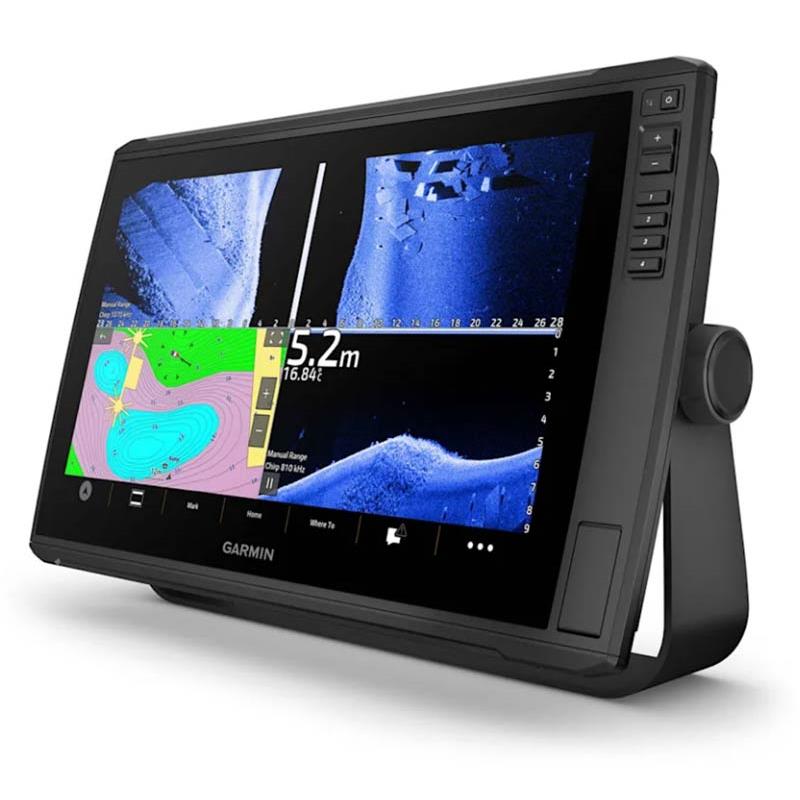

SEE BIGGER TO CATCH BIGGER

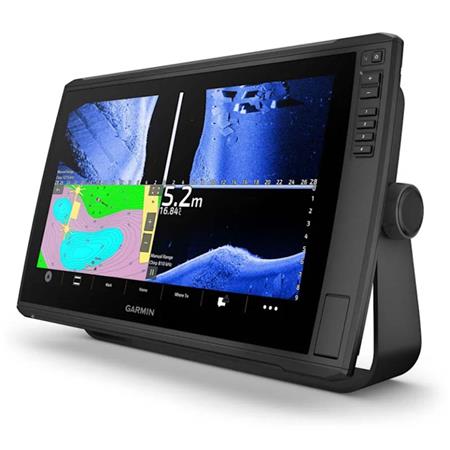

Designed for passionate anglers, this 16″ chartplotter with a Full HD screen offers optimal clarity, brightness and readability for displaying your navigation charts and fishfinder returns. It supports Garmin Navionics+™ and Garmin Navionics Vision+™, as well as the entire range of LiveScope™1 transducers, ultra-high-definition scanning sonars and traditional CHIRP sonar.
16″ TOUCHSCREEN WITH BUTTONS
HDMI OUTPUT CONNECTORS FOR SCREEN SHARING
BLUETOOTH® TECHNOLOGY ENABLES VOICE CONTROL FUNCTIONS

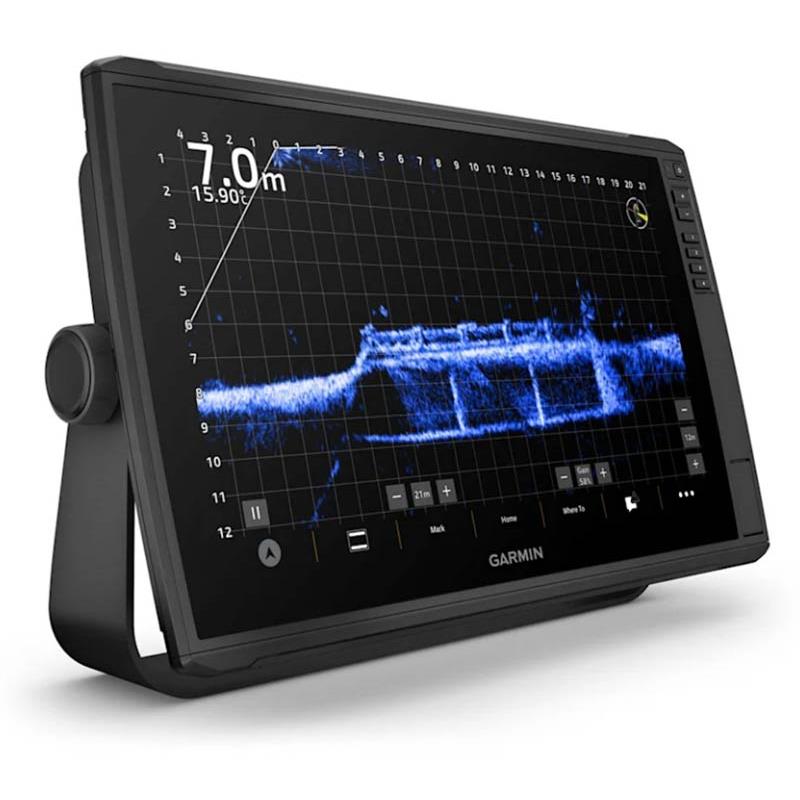

SUPPORTS LIVESCOPE1 SONAR AND MORE
WITH THE WIRELESS NETWORK, SHARE SONAR, WAYPOINTS AND ROUTES2
MULTI-BAND GPS FOR MORE PRECISE POSITIONING
• Compatible with our real-time ultra-detailed sonar technologies, including Panoptix LiveScope LVS32 / LVS34 and LVS62.
• Ability to share sonar data, waypoints and routes with other ECHOMAP Ultra2 10 and 12-inch units, as well as with ECHOMAP UHD2
• Built-in Quickdraw Contours feature for the instant creation of custom fishing maps with bathymetric contours represented every 30 cm
• Built-in Wi‑Fi® connectivity for compatibility with the free ActiveCaptain® app

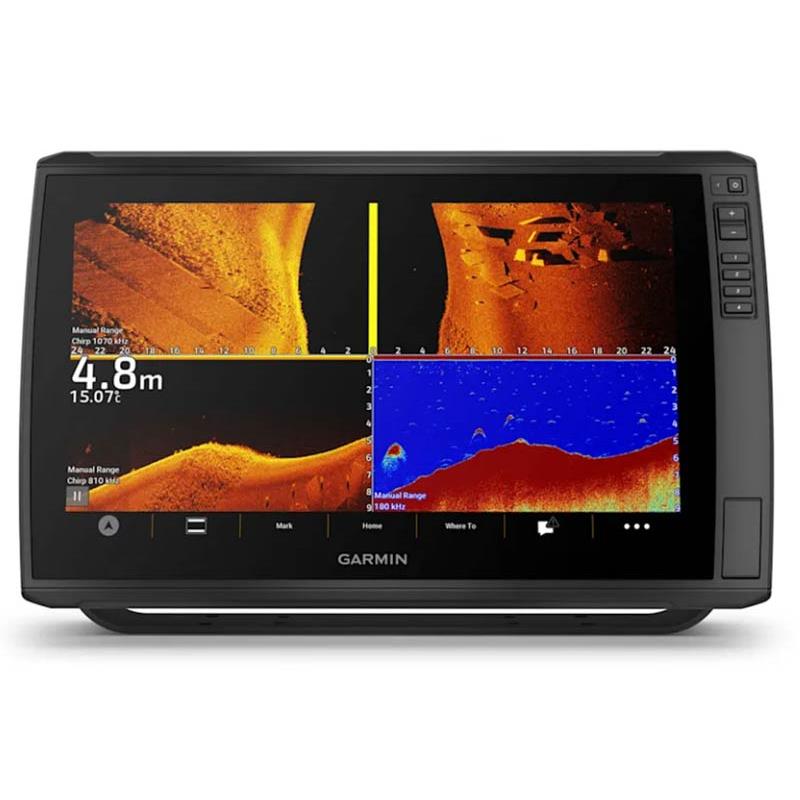

BUILT-IN ULTRA HIGH-DEFINITION SONAR
Some models include a GT56 transducer which adds traditional Garmin CHIRP sonar functions and ultra-high-definition scanning sonar ClearVü™ and SideVü™ to provide realistic images of what is beneath the surface.
MARINE CHARTS
Give your chartplotter a whole new look with the optional Garmin Navionics+™ or Garmin Navionics Vision+™ premium mapping, which includes content for coastal and inland waters, access to daily updates, Auto Guidance+ technology and much more.
• NMEA 2000® connectivity ensures compatibility with electronic compasses, autopilots, digital switching, the FUSION-Link™ audio system and much more
HDMI Output
In addition to recording and capturing what is displayed on the fishfinder, the chartplotter's HDMI output connectors also allow ice anglers to share their screens with their TV or other external displays.
VOICE COMMAND FUNCTIONS
Built-in BLUETOOTH technology allows you to send voice commands to your chartplotter for hands-free control of functions such as Force® trolling motor modes, favorite keys and sonar inputs.

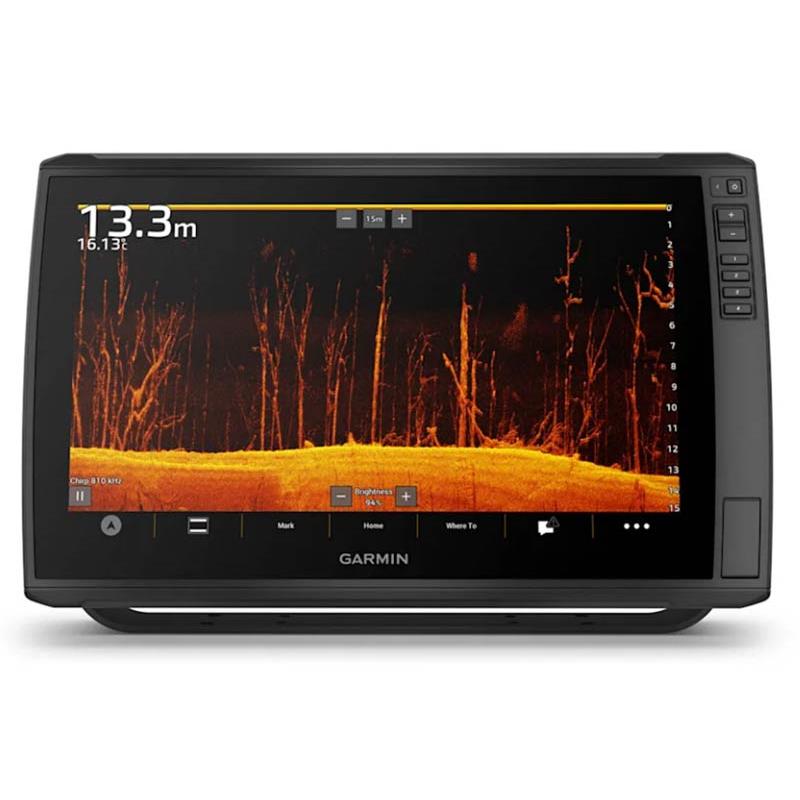

VIVID COLOR PALETTE

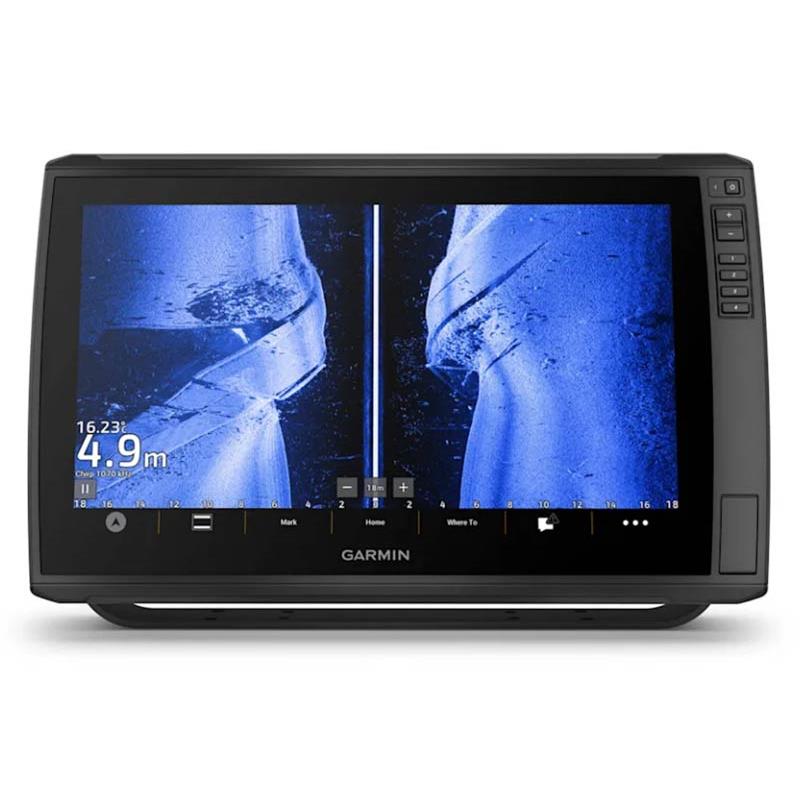

The vivid, high-contrast colors of the scanning sonar make it easier than ever to identify targets and bottom structure.
CHARTING AVAILABLE
Navigate with optional Garmin Navionics+™ charts which include Auto Guidance+, depth shading, unlimited updates and much more4 (subscription required).
PREMIUM CHART UPGRADES
Optional Garmin Navionics Vision+™ premium charts (sold separately) add relief shading, satellite imagery and much more to your chartplotter.
MULTI-BAND GPS
More precise positioning thanks to multi-band GPS technology
COMPATIBILITY WITH NMEA 2000® NETWORK
Connection to electronic compasses, autopilots, Fusion-Link™ audio systems and more
ActiveCaptain® App
Pair your device with the free smartphone or tablet app for software updates, screen recordings, Garmin Quickdraw™ community data and more5.
Force Electric Motor
Wireless connection to the Force electric motor to navigate to waypoints, create and follow routes, and more
SCREEN RECORDING
Use the recording function via the ActiveCaptain app on your smartphone to share images from your chartplotter.
Mounting bracket with quick-release base
Mount your compatible ECHOMAP Ultra 2 flush to the deck using our screw-on mounting bracket
General :
• Physical dimensions: 43 x 26 x 8 cm
• Display size (width by height): 34.5 x 19.5 cm; 39.7 cm diagonal (13.6″ x 7.7″; 15.6″ diagonal)
• Screen resolution (width by height): WXGA; 1920 x 1080 px
• Display type: FHD / IPS touchscreen (with anti-reflective coating)
• Weight: 4.31 kg
• Water resistance rating: IPX7
• Touchscreen with keyboard support
• MEASURED POWER CONSUMPTION AT 12 V DC: 2.3 A
• Antenna: Internal only 10hz
• Mounting options: On bracket or flush mount
• GPS antenna: 10 Hz
• Garmin Marine Network ports: 2 (large connectors)
Outdoor leisure features :
• Tide table
Chartplotter features :
• Sonar function: yes
• Supports: AIS (searches for the position of nearby vessels)
• Supports: ASN (displays position data from ASN-compatible VHF radios)
• Supports radios compatible with FUSION-Link™
• Supports GCV Black Box sonar
• Compatible with ActiveCaptain: yes
• Features for sailing
Sonar functions and features :
• Compatible with dual-frequency sonar
• Compatible with dual-beam sonar
• Transmit power: 600 W (RMS) / 4,000 W (peak-to-peak)
• CHIRP technology compatibility: Yes (Built-in)
• ClearVü: yes
• SideVü: yes
• Maximum depth :
- 700 m at 77 kHz, fresh water
- 335 m at 77 kHz, salt water
(Depth estimate depends directly on bottom type and other water characteristics)
• Bottom lock (displays the return value from the seabed)
• Water temperature log and graph
• Sonar recording
• Sonar history rewind

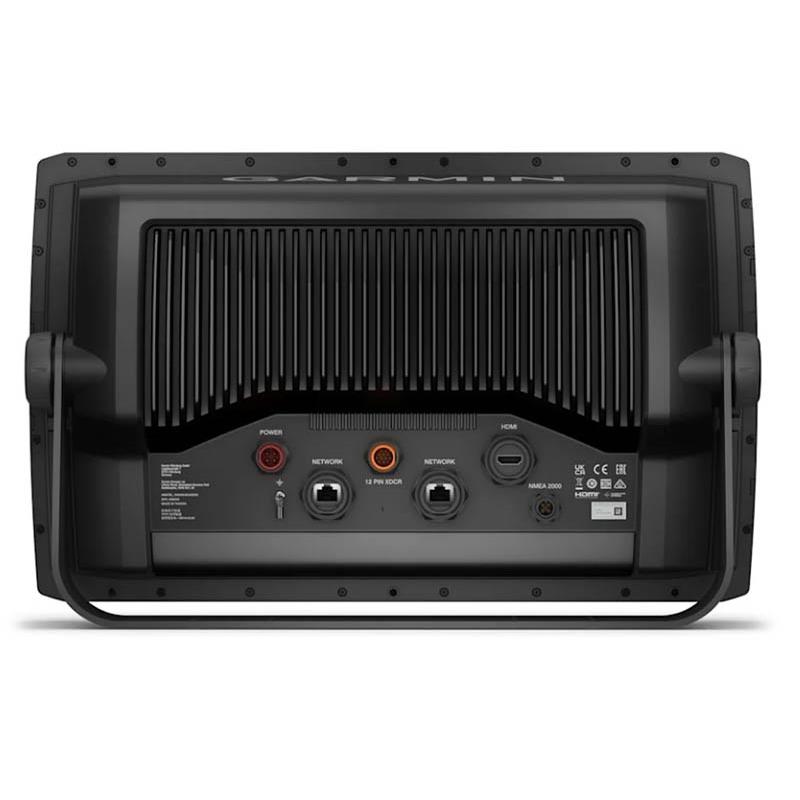

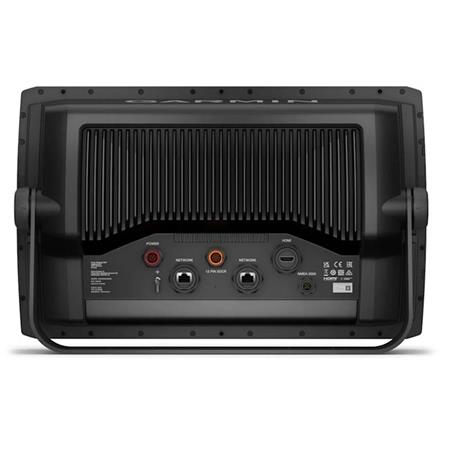

Connections :
• GPS/GLONASS/Galileo 10 Hz Built-in
• Wireless connectivity: yes
• CHIRP 40-250 kHz; CHIRP scanning sonar 260/455/800/1200 (ClearVü and SideVü) Single-channel CHIRP: 600W
• Wireless connectivity, NMEA 2000®: 1 port, NMEA 0183: 1x input, 1x output, Garmin Network: 2 ports, Sonar: 1x 12-pin and 1x Panoptix LVS12
In the box with GT56UHD-TM transducer :
• ECHOMAP Ultra2 122sv with worldwide basemap
• GT56UHD-TM transducer
• Charging/data cable
• Tilting/pivoting bracket with quick-release base
• 8-pin transducer to 12-pin sonar adapter cable
• Flush mount
• Protective cover
• Hardware
• Documentation
In the box WITHOUT TRANSDUCER :
• ECHOMAP Ultra2 122sv with worldwide basemap
• Charging/data cable
• Tilting/pivoting bracket with quick-release base
• Flush mount
• Protective cover
• Hardware
• Documentation
