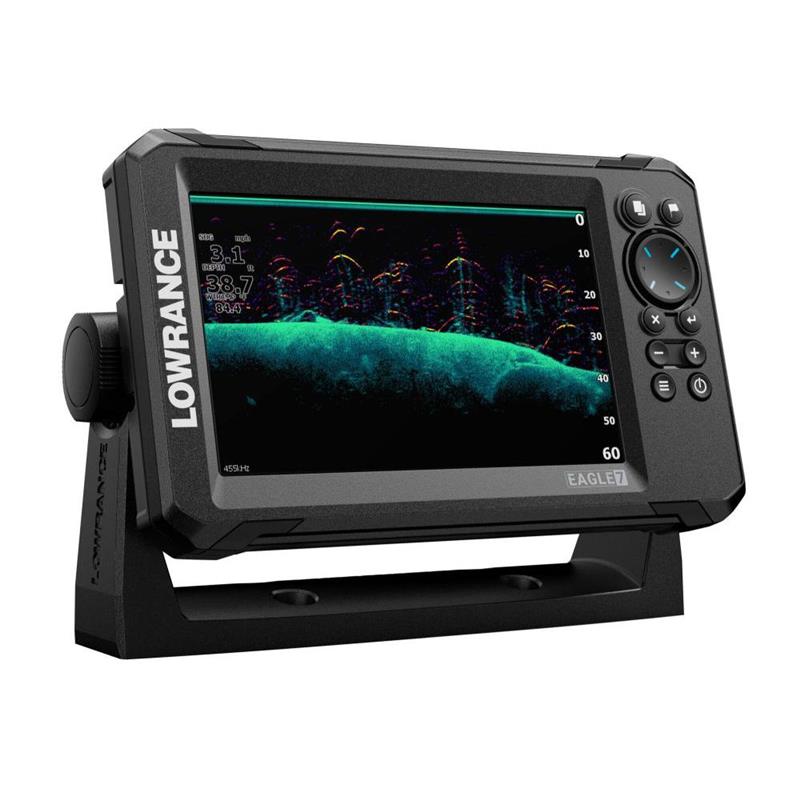

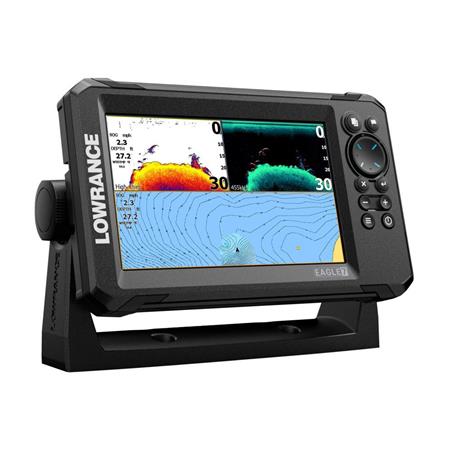

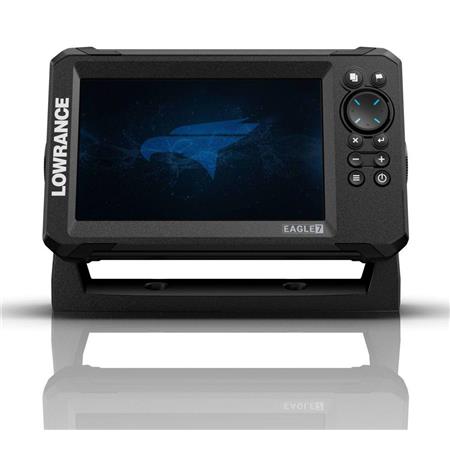

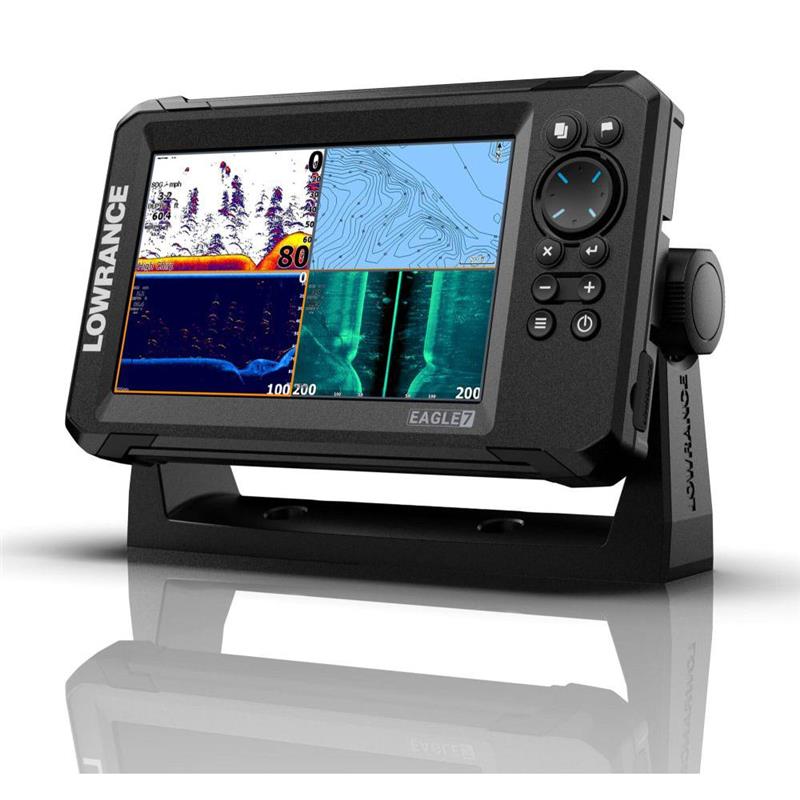

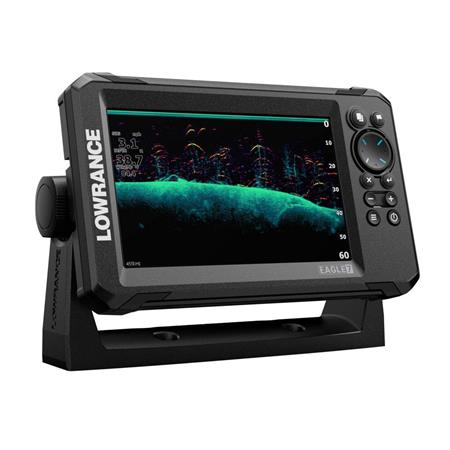

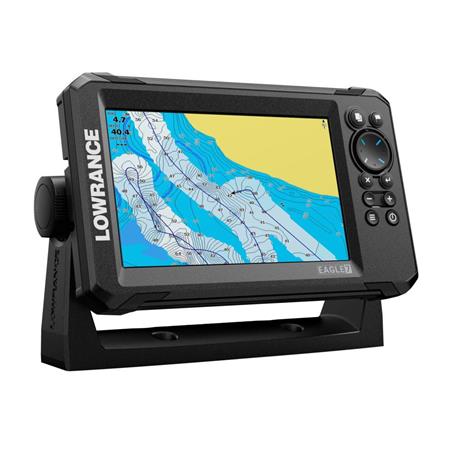

GPS FISHFINDER LOWRANCE EAGLE 7 TRIPLESHOT HD

Gps Fishfinder Lowrance Eagle 7 Tripleshot Hd

Read more-Product description

(2 reviews)

584.50€

Recommended retail price : €675.50

Shipping within 24h

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Reviews

Models & specificities Descriptive Reviews

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Pixels

Transducer

Shipping

Price inc VAT

000-16121-001

€584.50

Shipped within

24h

800 x 480

Avec Sonde Tableau Arrière

Shipped within

24h

€584.50

Models & specificities Descriptive Reviews

Descriptive

Back to menu

function	value
screen size	7 inches
touchscreen	no
classic 2d	yes
down view	yes
side view	yes
chirp	yes
gps	yes
bathymetry	yes
chart reader	yes
live	no
network	no

*subtleties and options may be indicated in the full description; do not hesitate to explore further or ask for advice.

the easiest fishfinder to use in the world
eagle® is designed to make fishing as simple and enjoyable as possible. easy to use and quick to install.

designed for fishing :
with its new robust and modern design created exclusively for anglers, by anglers,

improved transducers :
the new tripleshot™ hd and splitshot™ hd transducers deliver improved clarity, depth and sensitivity, all for optimal performance below the surface.

detailed mapping* :
eagle comes with a worldwide basemap preloaded without details and offers the option to upgrade to cmap® discover™.

thanks to genesis live, you can create custom bathymetric maps of your favorite lake or of still unexplored waters, with remarkable precision and in real time, with all the details you need to discover and navigate more quickly to the best fishing spots. a simple blank consumer micro sd card in 32go max is required to activate the genesis live function on the mapping page.

eagle features a new analog IPS display offering improved resolution, clarity and visibility, even when you wear polarized sunglasses in bright sunlight.

new color palettes allow you to adjust the display when facing changing conditions.

fishreveal function
fishreveal™ combines downscan imaging technology with chirp technology, making it easier than ever to distinguish fish from underwater vegetation. the strength of the eagle fishfinder: its sharp eye.

technical specifications :
-screen size 7’’
-single chirp frequency of 200khz wide beams for 2d fishfinder mode
frequency 455/800khz for downscan mode
-frequency 455/800khz for sidescan mode
-transducer type transom mount with a 6ml cable for transom mount models
-protection rating ipx7
-analog display
-screen resolution 800x480 pixels
-voltage 12v
-dimensions 226.5 x 139.8 x 124.2 mm

optional accessories :
-screen protective cover reference 000-16250-001
-flush mount gasket kit reference 000-16254-001
-replacement power cable reference 000-14172-001
-replacement locking nut for eagle transducer socket reference 000-16315-001
-screw cover clips 5/7/9 reference 000-16313-001
-mount bracket and screen knobs eagle 7 reference 000-11019-001
-spare triple shot hd transducer for eagle 7/9 reference 000-16285-001

screen installation tip :
an articulated ram mount reference ra-h2 for example, allows you to position your screen as you wish and orient it to your liking.

transducer installation tip :
a seanox stainless slider for transducer 415030/415050/415080 allows you to correctly position the transducer on your transom and raise it a few centimeters for launching to protect it.

power supply advice :
for a size 5 and/or 7 fishfinder with gps and chart reader, a 12v lead-acid battery of minimum 12amp is recommended for good autonomy. the ends of the wires at the end of the fishfinder power cable are stripped and it is necessary to adapt and obtain terminals (not supplied with the fishfinder) to connect it to the battery.

quick start guide eagle

eagle 7/9 installation guide
