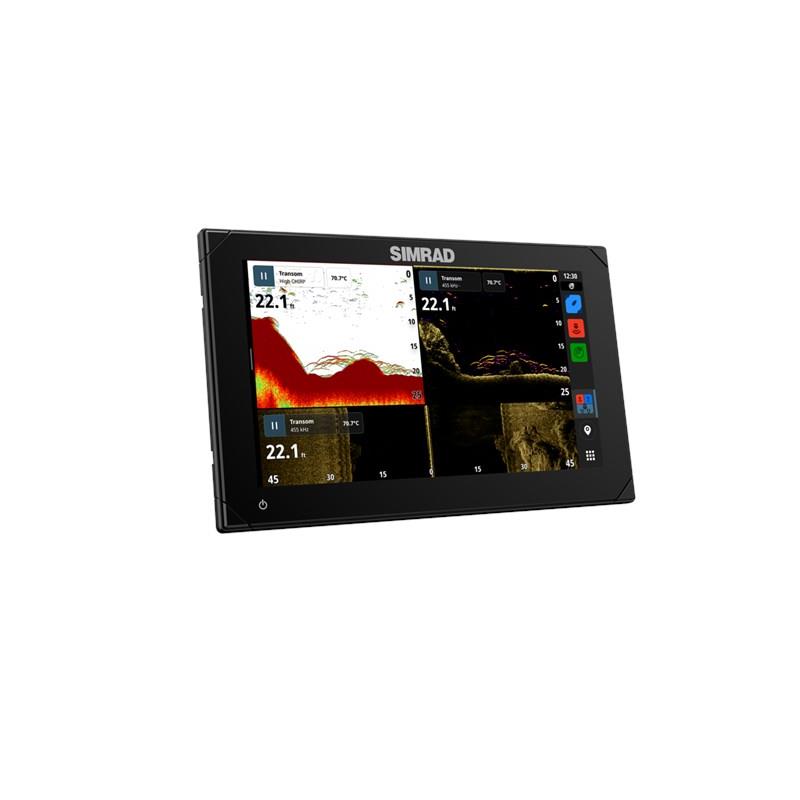

Gps Fishfinder Simrad Nsx 3009

Name: GPS FISHFINDER SIMRAD NSX 3009
Brand: Simrad
SKU: 249577

Read more-Product description

From 1603.50€

Recommended retail price : €1782.50

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Pixels

Transducer

Price inc VAT

000-15219-001

€1603.50

1280 x 720

€1603.50

000-15375-001

€1713.90

1280 x 720

Avec Sonde HDI

€1713.90

000-15369-001

€1879.90

1280 x 720

Avec Sonde Active Imaging 3/1

€1879.90

Models & specificities Descriptive

Descriptive

Back to menu

Function	Value
Screen size	9 inches
Touch screen	yes
2D classic	yes
Down view	yes
Side view	depending on probe
Chirp	yes
Gps	yes
Bathymetry	yes
Card reader	yes
Live	no
Network	yes

*Subtleties and options might be indicated in the full description, don't hesitate to delve deeper or ask for advice.

Give a new dimension to your experience thanks to Simrad® NSX™'s smart chart plotter and powerful 1kw sonar module. The modern and innovative interface with a robust navigation feature supporting C-MAP® will allow you to see like never before, with our fully touch-sensitive IPS screens with a resolution of 1280X720 pixels capturing every detail. The NSX comes fully equipped! It has built-in sonar, radar and autopilot systems. Thanks to our handy setup assistant, you'll be operational in no time.

GPS Chart plotter module compatible with C-MAP Discover™ X and C-MAP Reveal™ X cards only. Integration of the Simrad® app: keep your chart data at your fingertips, on the water and on land.

Caution, the micro SD card reader is located behind the screen. You need to plan for a clearance behind the sonar in the bracket position or have quick access to the reader if your sonar is built in.

Fast, powerful, and smart, it is equipped with Bluetooth 4.0 function to integrate the Simrad app on your smartphone.

It also has an Ethernet connection to pair another compatible sonar and or the ACTIVE TARGET probe for real-time images.

Main functions:
• Support for C-MAP® DISCOVER™X and REVEAL™ X charts optimised for the maritime sector, offering a modern, intuitive chart presentation and daily updates.
• High-definition IPS touch screen offering extreme viewing angles, even visible through polarised glasses
• Support for high-resolution views of fish and structure thanks to Active Imaging™ technology, CHIRP sonar and SideScan and DownScan Imaging™ features, as well as 1 kW probe capability to reach greater depths
• Setup assistant for quick start and simpler sonar configuration.
Full integration with the ability to expand the system with a sonar, autopilot, Simrad® radar and much more
• Faster autorouting and flawless accessibility
• See near and far simultaneously (up to 42 nm) thanks to support for HALO® radar, and benefit from ultra-fast updates every second.
• Stay on course thanks to the complete integration of the Simrad® autopilot
• Simple and modern interface
• Integration of third-party applications
• Wireless connectivity, complete Ethernet and NMEA 2000® networking capability
• IP video support

Technical characteristics:
• SD card storage: 1 MicroSD slot
• Ethernet ports: 1 port
• NMEA 2000 connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN
• Screen resolution: 1280 x 720 px
• Max power consumption: 18.8 W (1360 mA at 13.8 V)
• Supply voltage: 12 V DC (10 - 17 V DC min - max)
• Operating temperature range: -15°C to 55°C
• Recommended fuse amperage: 3A
• GPS receiver channels: 32 channels
• Waypoints, routes, tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with upto 12,000 track points.
• Screen size: 22.86cm
• Viewing angle: 85°
• Bluetooth: Bluetooth 4.0
• Supported maps: C-MAP Discover™ X, C-MAP Reveal™ X
• Item's Wi-Fi connectivity: IEEE 802.11b/g/n
• GPS: Internal, 10Hz, WASS, MSAS, EGNOS
• Waterproofing: IPx6 and IPx7
• Interface: Multi-touch screen
• Sonar compatibility: One 9pins Xsonic 1 kW Sonar port. Single channel CHIRP, 50/200 khz, HDI, Active Imaging
• AIS: Receive AIS data over NMEA 2000
• Digital switching: Simrad command DDS only on release to market
• Dimensions (W x H x D): No bracket, no suncover: W: 239.0 mm x H: 148.5 mm x D: 80.6 mm
• Weight: 1.2 kg

In the box:
• NSX 3009 Sonar
• 4-pin power cable 2ml Ref = 000-00128-001
• U bracket Vulcan 9/GO9 Ref = 000-13758-001
• NSX 3009 screen protection cover Ref = 000-15817-001
• NSX 3009, Vulcan2 dashboard mounting kit Ref = 000-15824-001
• NSX,VULCAN2 corner clips Ref = 000-15822-001
• 1 HDI probe and or ACTIVE IMAGING 3/1 according to selected model except Without Probe model delivered without probe.
