| Function | Value |
|---|
| Screen size | 9 inches |
| Touchscreen | yes |
| Classic 2D | yes |
| Down view | yes |
| Side view | yes |
| Chirp | yes |
| GPS | yes |
| Bathymetry | yes |
| Chart viewer | yes |
| Live | yes with optional transducer |
| Network | yes |
*Subtleties and options may be indicated in the full description, feel free to explore further or ask for advice.
The GARMIN LIVE pack ideal for use in a float tube and/or in a kayak or simply on a boat !!

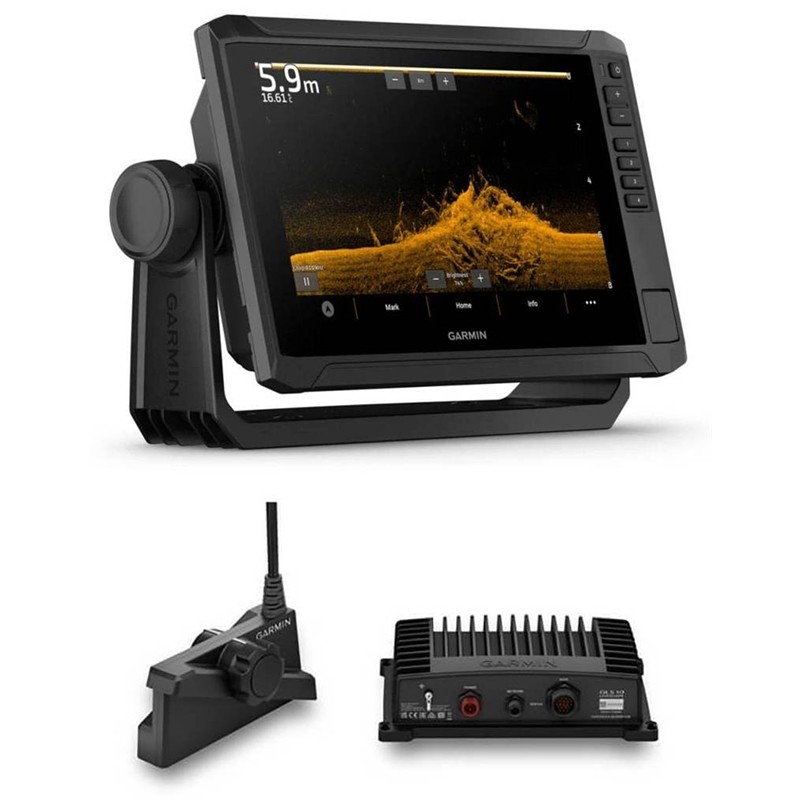

Package composed of the ECHOMAP UHD² 92SV fishfinder with GT56 transom transducer and the LIVESCOP LVS34 transducer with GLS10 housing.
strong>This Ultra GARMIN pack groups together the highest GARMIN technologies with a touchscreen ECHOMAP UHD² 92SV supplied complete with its GT56 transducer in transom mount for prospecting, identifying structures and echoes and marking GPS points and the LIVESCOPE LVS34/GLS10 transducer for real-time images on the LiveScope Down and LiveScope Forward views offering a maximum range of 61m
Power supply advice :
The fishfinder GARMIN ECHOMAP UHD² 92SV as well as the LIVESCOPE LVS34 transducer must be powered at 12v. You need to provide enough current in Amperes on your 12V battery, whether lead-acid and/or Lithium, for good autonomy over a whole day.
It is recommended to install a switch or a circuit breaker on the power supply of your fishfinder and the LIVESCOPE transducer so you can disconnect it while moving on the water.
Installation advice for mounting the LIVESCOPE transducer on the removable probe pole PIKE N BASS optional reference 410169, PIKE N BASS BASIC pole reference 410191 and/or RAILBLAZA POLE30 for the float tube and/or POLE 60 for the boat:
The mounting of the probe pole is generally on the starboard side and next to the helm so you can adjust the orientation of your transducer while seated at your seat at the console of your boat and enjoy a complete view if you are two anglers fishing in vertical mode.
When motoring with an internal combustion engine and at high speed, you should fold your pole into a horizontal position to avoid any risk of damage and thus protect your transducer.
Pack contents :
• ECHOMAP UHD² 92sv
• GT56 transducer
• Charging/data cable
• Tilting/pivoting bracket with quick-release base
• 8-pin transducer to 12-pin fishfinder adapter cable
• Flush mount
• Protective cover
• Hardware
• Documentation
• LiveScope GLS 10 sonar black box
• Panoptix LVS34 transducer
• Perspective mode mount
• Mount for the electric motor bracket
• Mount for shaft
• Power cable
• Garmin Marine Network 2-meter network cable (small connector)
• Network adapter cable
• Documentation
Installation guide
