Lithium Battery Bsr Eco Lifepo4 24V100 Amp

Read more-Product description

1834.90€

Recommended retail price : €1834.90

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Voltage (V)

Amperage max.

Price inc VAT

BSR-ECO24100
(Unavailable)

€1834.90

100

€1834.90

Models & specificities Descriptive

Descriptive

Back to menu

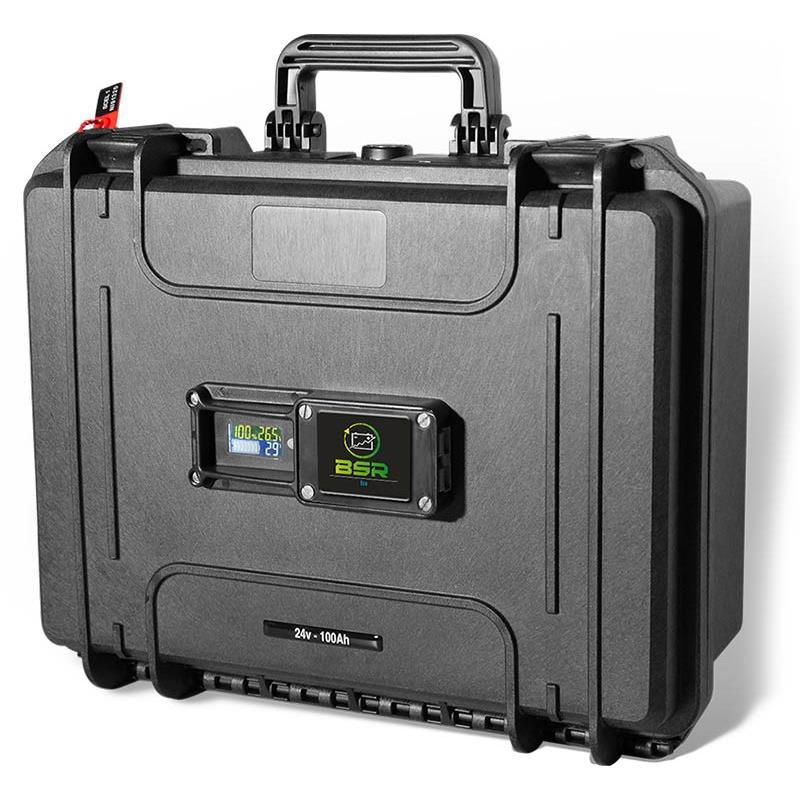

vleco24100 - battery lithium eco in a suitcase form 24 v 100 a delivered with charger for powering an electric motor only.

the new range of lithium eco batteries is packaged in a waterproof ipx7 transport case made of polypropylene.

developed for intensive use in navigation and specially designed to power minn kota electric motors. focus on your fishing session, the bsr eco battery takes care of the rest!

the case is equipped with a motor output with an anderson 50a connector. an LCD display showing the voltage and the remaining percentage.

battery delivered with its non-waterproof 24v 10a charger with anderson plug

cell type 3,2v 50ah lifep04

warranty 2 years
-protection by integrated 60a BMS, 60a fuse, stainless fasteners.

bsr eco battery specifications:
• structure : polypropylene case made in Italy
• connectors : waterproof quick anderson connector 50a
• after-sales service in France
• type : 24v 100ah
• voltage : 25.2v
• technology : life p04 / 2560 wh
• discharge cycle : 2000-3000 at 100% DOD
• dimensions (mm) : 414x345x129
• net weight : 21 kg
• discharge : 2c i.e. 200a max
• charge : 1c max i.e. up to 100a
• discharge cycle : 2000 at 100% DOD
• charge voltage : 29.2v
• max discharge voltage : 21.2v
• ideal charging temperature : 0 to 45 °c
• possible discharging temperature : -25 to +55°c
• waterproof – ipx7
• resistant to shock – vibration – sand – sea

connector for anderson 50a motor cable to solder or crimp.

in the box :
• 1 eco battery 24v 100ah
• 1 non-waterproof 24v 10amp charger with anderson plug
• 1 anderson 50a motor connector for motor cable to solder or crimp

optional accessories :
• anderson plug for electric motor power supply on bsr eco ref bsr-prand
• bulkhead mount for anderson plug electric motor bsr eco ref bsr-supp-and
• spare 24v non-waterproof charger for bsr eco case ref bsr-eco-ch24

installation advice :
if you position your battery in a locker of your boat, remember to strap it down so that it does not move and so it does not suffer shocks during high-speed navigation and/or during road transport.

it is recommended to install a main cut-off switch on your electrical system to cut any power source at the battery output.

usage advice :

warning, this battery does not have a regulated output to power a fishfinder. it is therefore strongly advised not to connect a fishfinder to the motor output pin which is at 24v so as not to damage your fishfinder that operates at 12v.
