LITHIUM BATTERY BSR PRESTIGE LIFEPO4 GEN3+ 24V100AH +1 SORTIE RÉGULÉE SONDEUR ET CHARGEUR NON ÉTANCHE 10A

Lithium Battery Bsr Prestige Lifepo4 Gen3+ 24V100ah +1 Sortie Régulée Sondeur Et Chargeur Non Étanche 10A

Read more-Product description

2305.50€

Recommended retail price : €2305.50

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Voltage (V)

Amperage max.

Price inc VAT

BSR-VALG3P-24100+

€2305.50

100

€2305.50

Models & specificities Descriptive

Descriptive

Back to menu

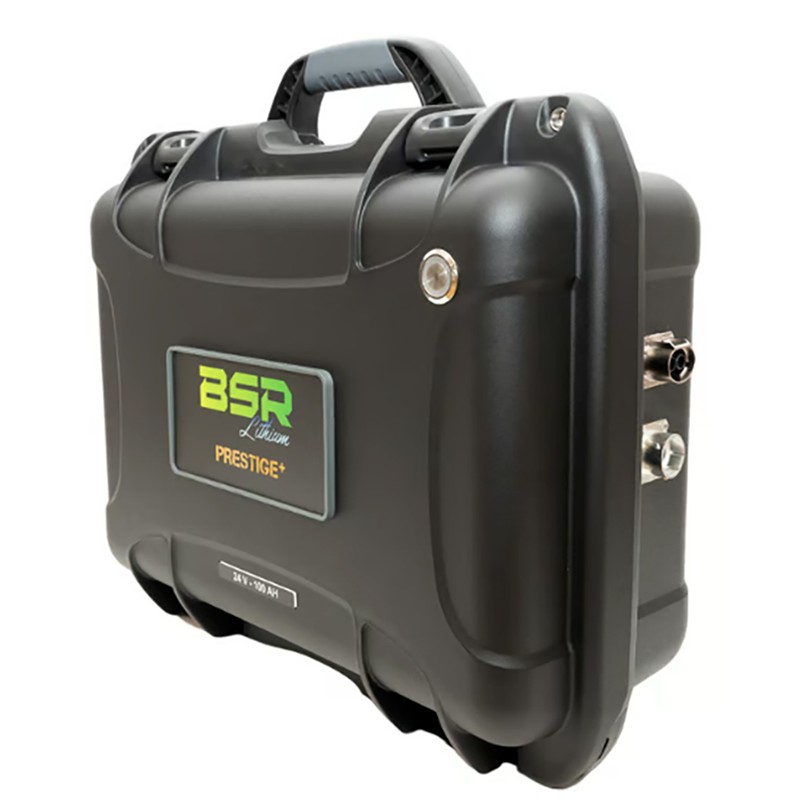

vl24100 gen3+ lithium battery bsr prestige in a 24v100a suitcase, delivered with 10a charger and Bluetooth connection + an additional regulated 12 volts 30a waterproof output for the sonar(s) and electronic accessories.

the new gen3 lithium battery range is packaged in a waterproof transport case ipx7

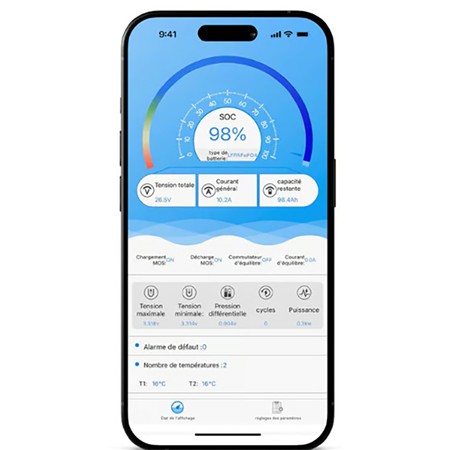

new generation 3: the bsr-lithium app provides in real time::
• consumption
• number of cycles
• safety alert
• cell information monitoring
• voltage in volts
• temperature control
• state of charge

designed for intensive use in navigation and specially conceived to power Minn Kota electric motors + an additional regulated 12 volts 30a waterproof output for the sonar(s) and electronic accessories.

focus on your fishing session, the bsr gen3+ battery takes care of the rest!

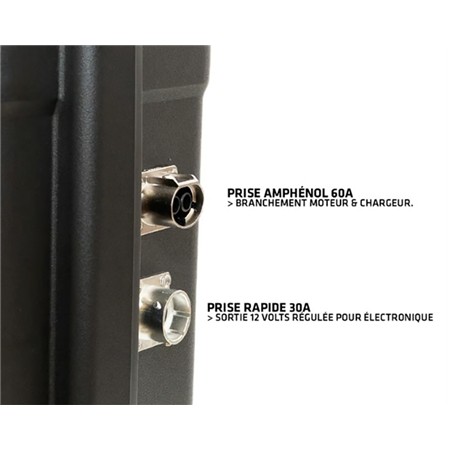

the case is equipped with a powerful amphenol 60a motor output and a waterproof quick sonar connector - 30a

the fast charger 29.2v 10a is equipped with the quick connector ip68/69.

nanuk's integrated auto-pressure valve equalizes this difference in atmospheric pressure. using advanced technology, the micro-vent allows air to pass while preventing water ingress.

bsr prestige gen3+ battery specifications:
• type : 24v 100ah
• voltage : 29.2v
• technology : LiFePO4 / 2560 Wh
• discharge cycle : 2000-3000 at 100%
• dimensions (mm) : 424x340x173mm
• net weight : 20.00 kg
• structure : case
• connectors : waterproof quick motor plug 60a
• sonar : waterproof quick sonar plug - 30a
• resistant to shock – vibration – sand – sea
• protection by integrated bms 60a, breaker 60a, stainless hardware.
• discharge : 2c i.e. 100a max
• cycle : 2000 at 100% dod
• charge voltage :29.2v
• connector waterproofing ip67 when mated
• ideal charging temperature : 0 to 45 °c
• possible discharge temperature : -25 to +55°c
• anti-deflagration
• waterproof – ipx7
• fire standard : ul94 vo
• resistant to shock – vibration – sand – sea

motor connector 60a / ip68/69 – salt spray fire standard ul94vo for soldering or crimping.

quick sonar connector supplied ip68/69 –

after-sales service in France
4-year warranty

in the box :
• 1 prestige+ battery 24v 100ah
• 1 charger 29.2v 10a non-waterproof
• 1 quick motor connector 60a / ip67
• 1 sonar connector 30a- screw-in charger ip68/69

additional optional plugs :
• additional male motor power plug ref bsr-prmot
• additional male sonar power plug ref bsr-pr30s
• non-waterproof charger 24v10a amphenol 60a plug ref bsr-ch24-p
