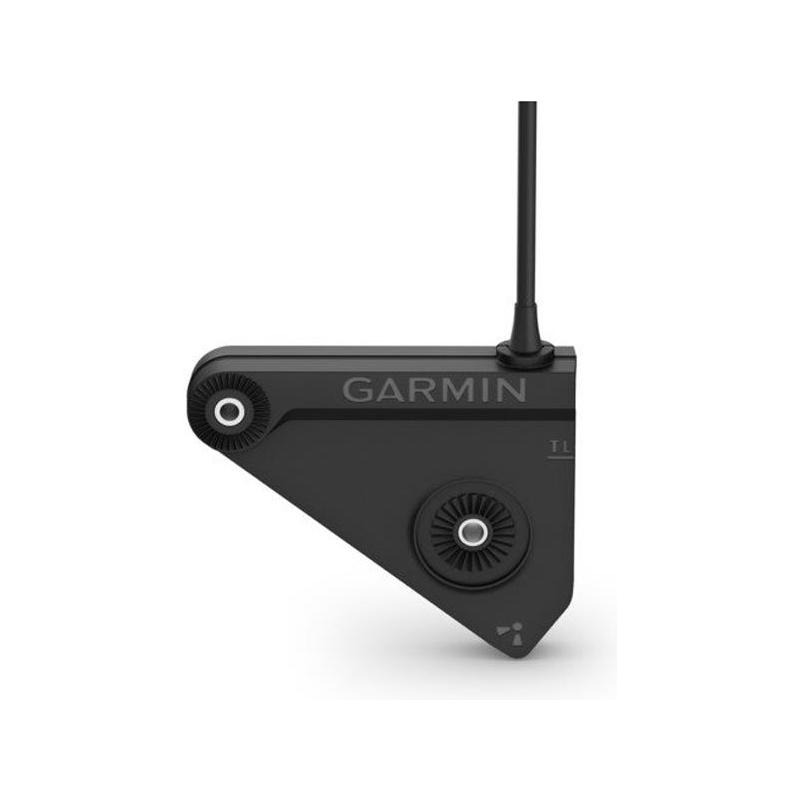

Transducer Garmin Panoptix Livescope Lvs12 Transducer

Name: TRANSDUCER GARMIN PANOPTIX LIVESCOPE LVS12 TRANSDUCER
Brand: Garmin
SKU: 191538

Read more-Product description

548.50€

Recommended retail price : €614

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

010-02143-00

€548.50

Models & specificities Descriptive

Descriptive

Back to menu

The little sister of the Livescope LVS32, featuring narrower beams and compatible with the Echomap Ultra and 8400 series.

Discover how easy it is to interpret real-time scanning sonar technology
• See in real time what is happening in front of the boat (beam: 30 degrees forward/downward)
• Forward view shows structures and fish swimming up to 60 m (200 ft) from your boat in real time; Down view shows structures and fish swimming up to 60 m beneath your boat in real time
• Two views (forward and down) in a single transducer, with no manual adjustment required
• Easy installation — no black box required
• AHRS system included to stabilise the display in rough conditions

The Panoptix Livescope LVS12 transducer (12-pin) lets you add the world of real-time scanning sonar to your GPSMAP® 8400xsv or Echomap Ultra 102/122 and Ultra 2 102 and 122 at lower cost and without a black box. The transducer includes both transom-mount and trolling motor mounts.

Switch easily from one view to another
Toggle between views via an intuitive menu, without manually adjusting the transducer. You can also display both views side by side on the same screen. The forward view of the Panoptix Livescope transducer shows structures and fish swimming in real time up to 60 m from your boat. Use it to cast your lure towards fish that appear on the screen. The down view displays structures and fish swimming in real time up to 60 m beneath your boat. It is especially useful for vertical fishing or jigging. You can also use the LVS12 transducer as an auxiliary source for traditional sonar or ClearVü.

Integrated AHRS system
The AHRS system ensures sonar image stability when boating conditions deteriorate.

Specifications:
• Frequency: 530–1,100 kHz
• Power: 500 W
• Beam width: 60° x 20°
• Maximum depth: down and forward: 61 m (200 ft)
• Depth/speed/temperature: depth
• Number of pins: 12-pin
• Cable length: 3.6 m (12 ft)

LVS32 vs LVS12 comparison

view the installation manual
