Transducer Lowrance Active Target 2

Name: TRANSDUCER LOWRANCE ACTIVE TARGET 2
Brand: Lowrance
SKU: 267045
Rating: 4.7 (3 reviews)

Read more-Product description

(3 reviews)

~~€2080.90~~

Recommended retail price : €2335.90

Shipping within 24h

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Reviews

Models & specificities Descriptive Reviews

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Frequency (kHz)

Shipping

Price inc VAT

000-15959-001

~~€2080.90~~

Shipped within

24h

550khz/1100khz

Shipped within

24h

~~€2080.90~~

Models & specificities Descriptive Reviews

Descriptive

Back to menu

activetarget 2 gives you the widest, clearest and highest-resolution live view of fish and structure. By watching fish react to your lure in real time, you can make quick adjustments that make all the difference and help you catch more fish. Equipped with forward, down and scout views, the activetarget real-time transducer can monitor fish positions and track their movement.

See the clearest, highest-resolution images of fish swimming in and around cover and structure with the activetarget 2 real-time sonar.

Get the best image every time thanks to optimized image and stabilization settings that deliver very sharp, clear real-time views of fish and structure, even in challenging conditions. And watch them react to your lure.

Quickly identify whether your lure is working or if you need to make adjustments to get the fish to bite, information that is harder to obtain with a traditional fishfinder or structure imaging.

You will know whether your technique is working or if adjustments are necessary. This provides information that is difficult to gather from a conventional fishfinder or structure imaging.

Improvements to the beam widths broadcast by the activetarget 2 transducer allow more detailed images than ever from the boat.

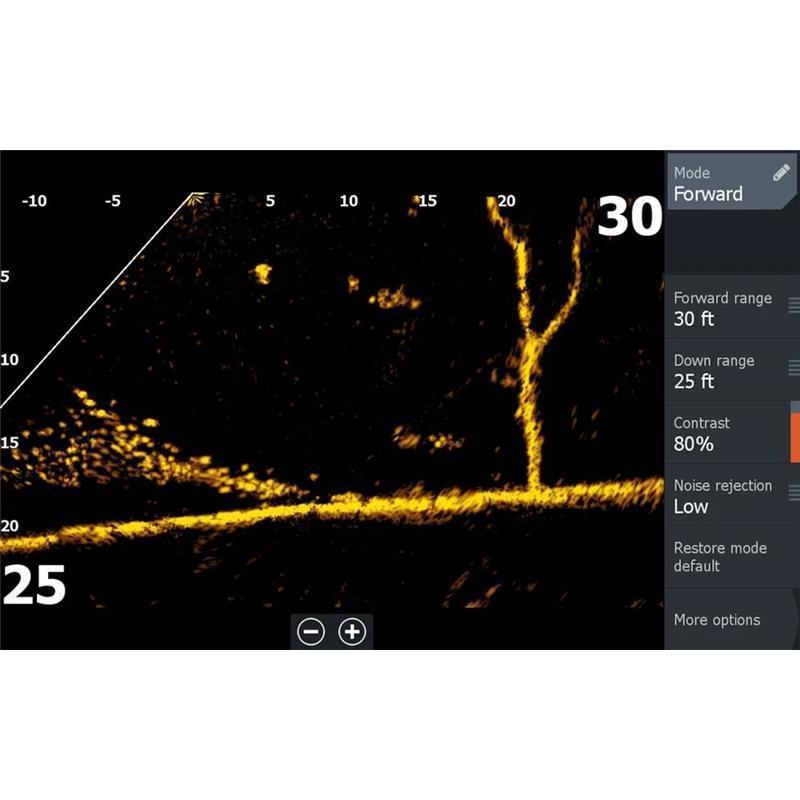

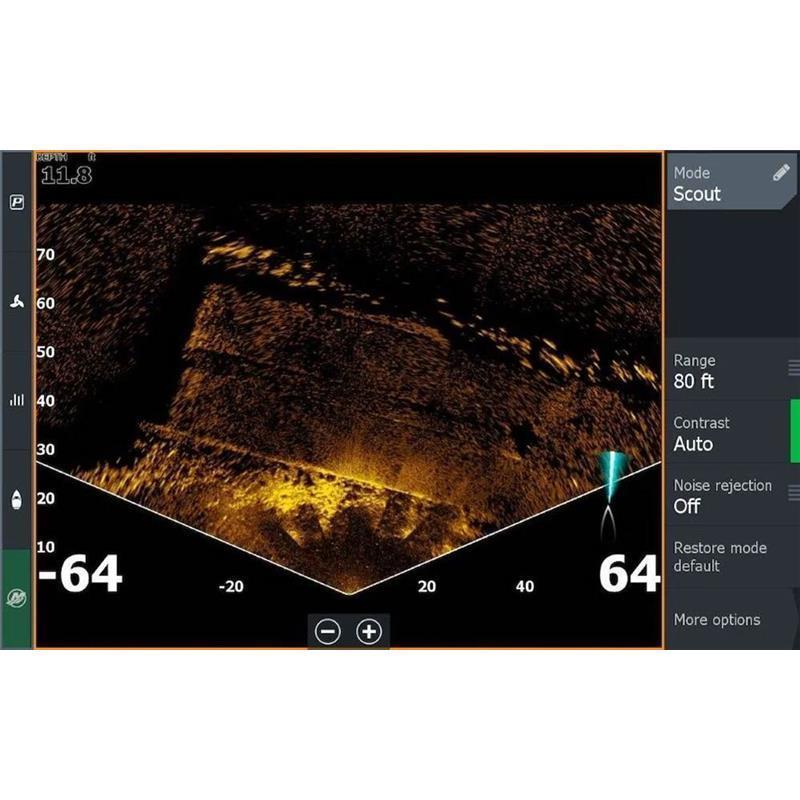

Track fish and your lure with high-resolution views ahead of and below your boat, or use scout mode to get an ultra-wide view of structure and fish activity in front of your boat, ideal for identifying bait balls and large schools of fish.

multiple simultaneous views

Monitor multiple views at the same time (from the forward, down and scout modes), and enable additional forward + back and scout wide views displaying 180-degree images for more effective tracking of fish and bait ahead of the boat with the addition of a second optional activetarget® 2 transducer and a dual scout + scout wide bracket reference 000-15960-001

activetarget transducer compatibility

The activetarget 2 transducer is compatible with the lowrance hds live, hds pro, hds carbon and elite fs GPS fishfinder combos.

technical specifications :
• frequencies = 550/1100khz
• max depth = 60m
• warranty period 1 year + 4 additional years of upgrade options total 5 years
• max. power consumption 1,5a @ 13,8vdc
• supply voltage 10,8 vdc - 31,2 vdc
• shock vibration 100 000 cycles of 20 g
• storage temperature range -30°c to 70°c (-22°f to 158°f)
• recommended fuse rating 3a
• operating temperature range 5°f to 131°f (-15°c to 55°c )
• humidity 60°c, 95 % relative humidity (hr) for 18 hours
• ethernet interface to : hds live, hds pro, hds carbon, elite fs
• waterproof rating ip67
• weight module : 1,86 kg (4,12 lb) transducer : 1,21 kg (2,67 lb)
• dimensions l x h x d module : 219,3 mm x 192,1 mm x 72,9 mm transducer : 149,8 mm x (82,4mm) x 2,28" (58,0mm)
• mounting type module : surface mounting transducer : bracket mounting
• ethernet ports yes

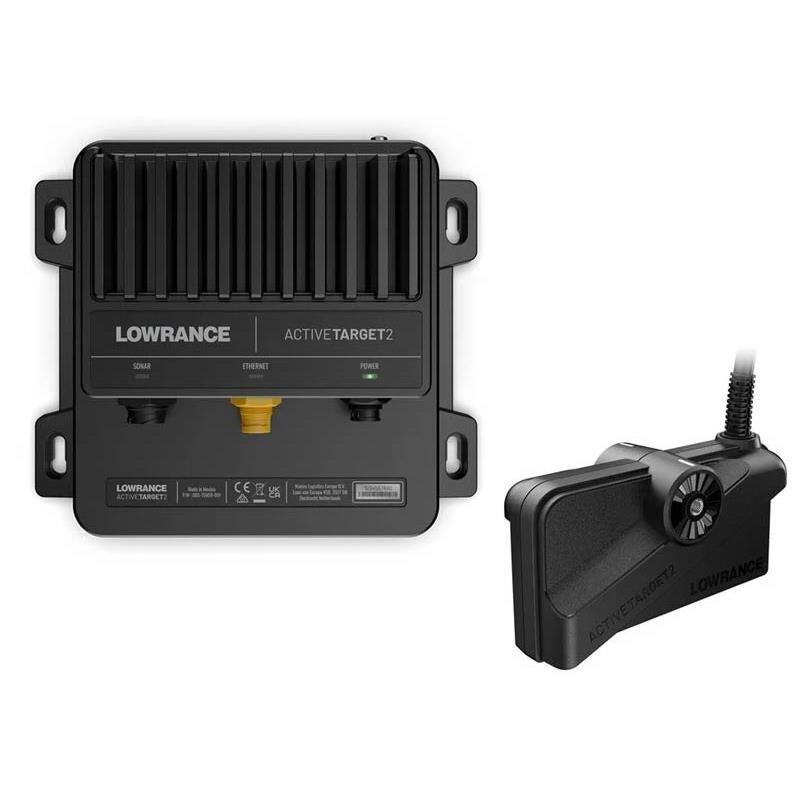

in the activetarget box:

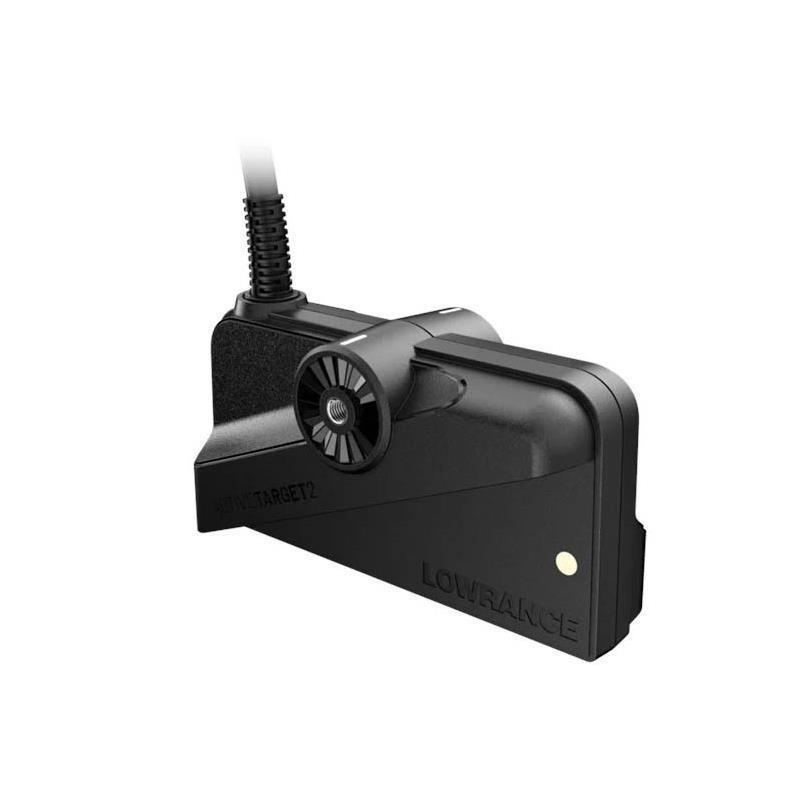

• activetarget 2 transducer

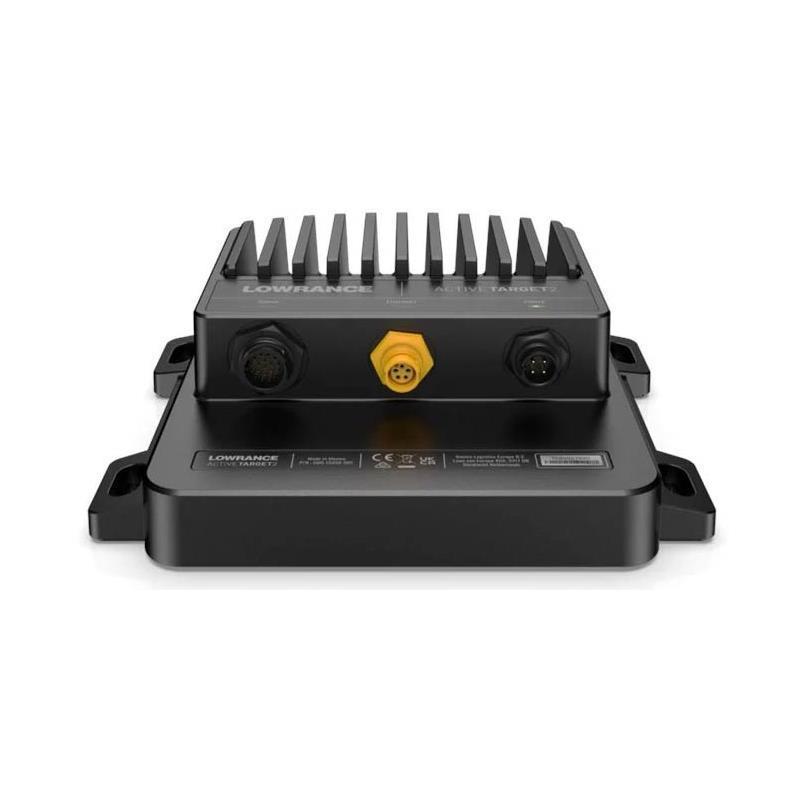

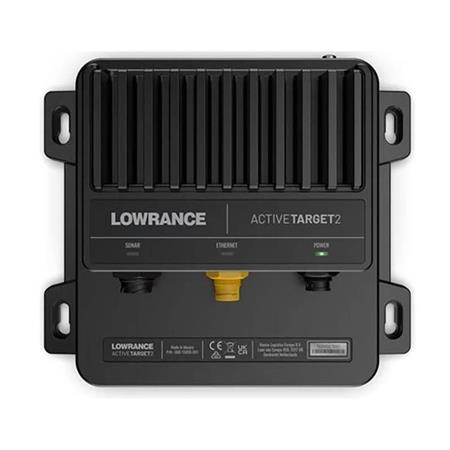

• activetarget module
• module power cable 4-pin
• ethernet cable 4.5m
• transducer mounting kit for forward electric motor forward/down
• transducer mounting kit for shaft motor
• technical documentation

installation advice for the active target transducer.

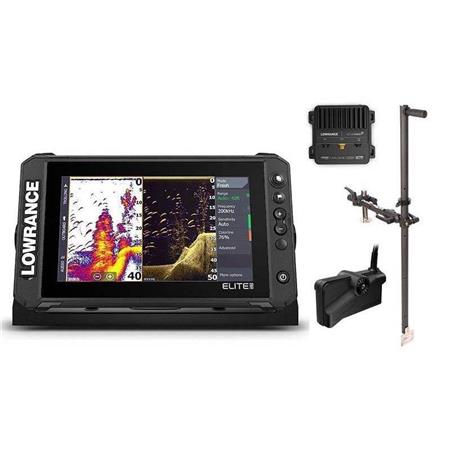

To get the most out of the active target transducer, it is recommended to use the pike'n bass adjustable transducer pole offered in a long 2 m version reference 410170 for sea use, in an intermediate 1.90 m version reference 410168 for sea and/or freshwater use and in a short pike'n bass 1 m version reference 410169 for freshwater. This transducer pole allows rapid deployment of your transducer and 360° orientation to optimize the view on your screen in all circumstances. It folds easily into the horizontal position so you can leave your complete installation safely on your boat while traveling at high speed and also on the road during transport.

optional support accessories:
• activetarget transducer transom mounting kit reference lw000-15773-001
• dual activetarget 2 transducer mounting kit scout + scout wide for electric motor or transducer pole reference lw000-15960-001

user manual
