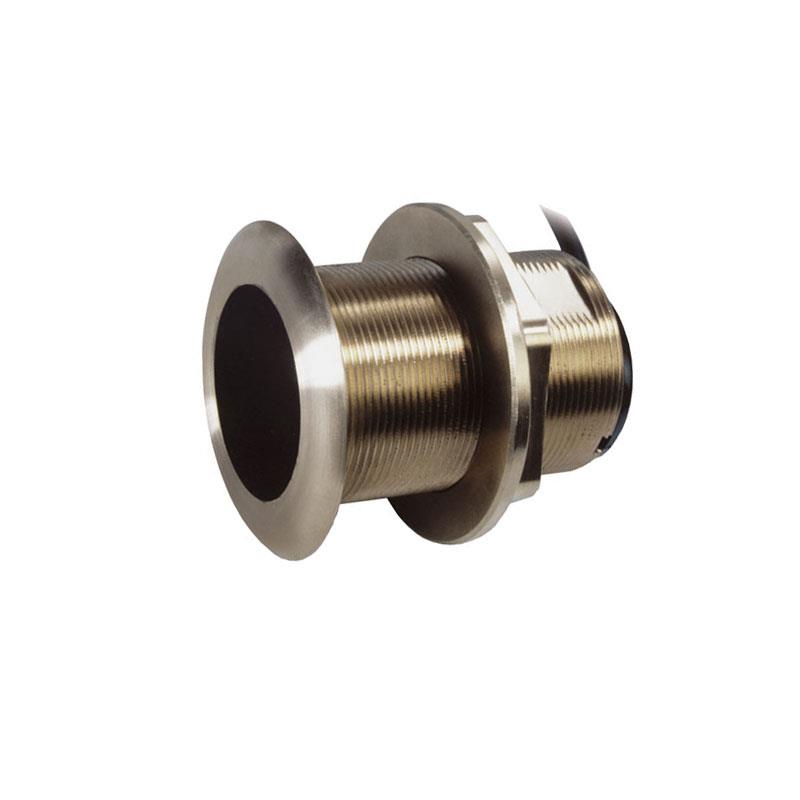

Through-Hull Transducer Airmar B60-12°

Name: THROUGH-HULL TRANSDUCER AIRMAR B60-12°
Brand: Airmar
SKU: 193336

Read more-Product description

541.50€

Recommended retail price : €541.50

Receive our offers and promo codes by email
Subscribe to the newsletter

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Model

Frequency (kHz)

Cons. (W)

Transducer

Price inc VAT

AI-31-554-5-02
(Unavailable)

€541.50

With temperature

50/200

600

Bronze Through-Hull Transducer

€541.50

Models & specificities Descriptive

Descriptive

Back to menu

The SB50200TR-1 transducer offers a 45°/12° beam and fits hulls inclined from 8 to 15°.

The SB50200TR-1 Tilted Element 50/200 kHz dual-frequency transducer is a low-profile housing that compensates for hull inclination. The innovative design tilts the ceramic inside the transducer housing.

Thanks to the built-in tilt compensation, performance is never compromised. This unique design (without shoe), installed flush with the hull, gives professionals and pleasure boaters similar advantages to a transducer using a shoe. On steep hulls, the degree of inclination can vary up to 15°, the beam is directed downward, resulting in a strong echo return and accurate depth readings.

This transducer is compatible with the bottom discrimination function for sounders Compatible AF/BD/ (RB): with GP1871F GP1971F FCV628 FCV588 BBDS1 TZTL12F TZTL15F TZT2BB TZT9F TZT12F TZT16F TZT19F

Bottom discrimination:
• Seabeds are composed of very different elements that are often impossible to see. Yet we would like to know their nature to position ourselves on the best fishing spot or to know where to anchor.
• Bottom discrimination technology makes it possible, in addition to standard sounder functions, to analyze and display the nature of the seabed: mud, sand, gravel or rock, in depths from 5 to 100 m.
• This sensor is also compatible with the REZBOOST function of the FCV628, FCV588 and the TZTL12F and TZTL15F.

Fishing applications:
• Coastal fishing in shallow or moderately deep waters
• Trolling, structure fishing and drift fishing
• Deep-water lake fishing

Specifications:
• 12° lens tilt for hull inclinations of 8 to 15°
• Designed for centre console and trailer boats
• Discreet protrusion below the hull
• No adverse effect on boat performance at high speed
• Built-in temperature sensor
• Ceramic tilt: 12°
• Diameter: 60 mm
• Threaded height: 95 mm
• Depth: YES
• Temperature: YES
• Allowed installation angle: 8 to 15°
• Beam angle: 45° / 12°
• Number of pins: 10
• Boat size: up to 8 meters (25')
• Compatible with FURUNO sounders FCV628, FCV588, BBDS1, DFF1, TZTL12F and TZTL15F and FURUNO combo units GP1871F, GP1971F
• Supplied without shoe
