Gps Fishfinder Simrad Nsx 3007

Name: GPS FISHFINDER SIMRAD NSX 3007
Brand: Simrad
SKU: 249574

Read more-Product description

~~€1160.50~~

Pecheur.com price 2025

Recommended retail price : €1290.50

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Pixels

Transducer

Shipping

Price inc VAT

000-15374-001

€1106

1024 x 600

Avec Sonde HDI

€1106

000-15368-001

€1245.50

1024 x 600

Avec Sonde Active Imaging 3/1

€1245.50

000-15215-001

~~€1160.50~~

Shipped within

24h

1024 x 600

Shipped within

24h

~~€1160.50~~

Models & specificities Descriptive

Descriptive

Back to menu

function	value
screen size	7 inches
touchscreen	yes
classic 2d	yes
down view	yes
side view	depending on transducer
chirp	yes
gps	yes
bathymetry	yes
card reader	yes
live	no
network	yes

*subtleties and options may be indicated in the full description, feel free to explore further or ask for advice.

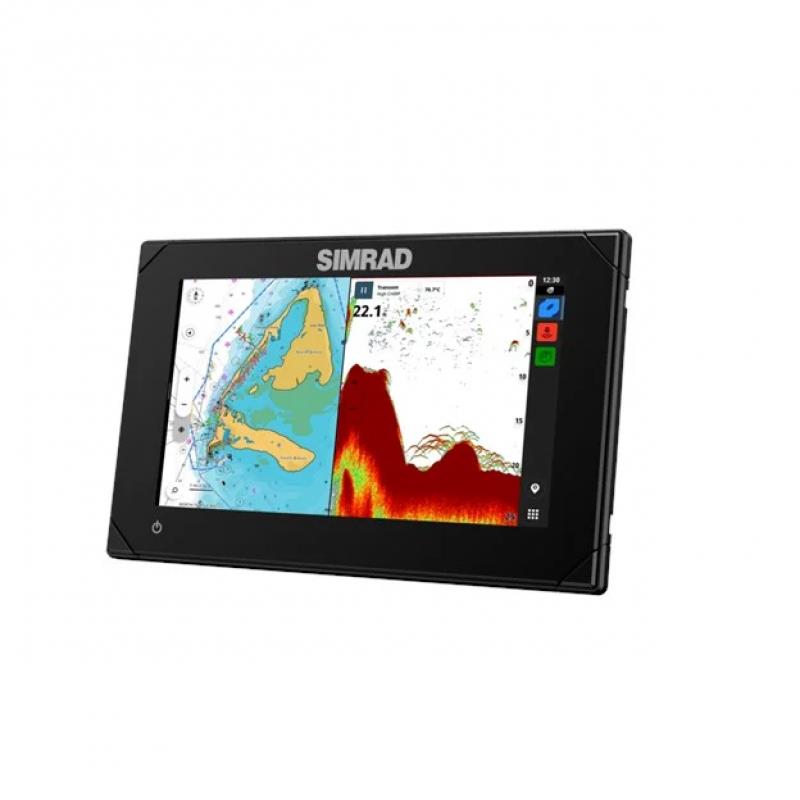

Give your experience a new dimension with the Simrad® NSX™ chartplotter and intelligent sounder module and a powerful 1 kW. The modern, innovative interface equipped with a powerful navigation function with c-map® support will let you see like never before, our fully touch IPS screens with a resolution of 1024x600 pixels capturing every detail. The NSX is fully equipped! It features integrated sounder, radar and autopilot systems. Thanks to our handy setup assistant, you'll be up and running in no time.

gps chartplotter module compatible with c-map discover™ x and c-map reveal™ x maps only. Simrad® app integration: keep your chart data to hand, on the water and ashore

warning, the micro sd card reader is located behind the screen. you must provide clearance behind the sounder when in bracket position and/or have quick access to the reader if your sounder is flush-mounted.
Fast, powerful and intelligent, it is equipped with Bluetooth 4.0 to integrate the Simrad app on your smartphone.

it also has an ethernet connection to pair another compatible sounder and/or the active target transducer for real-time images.

main functions :

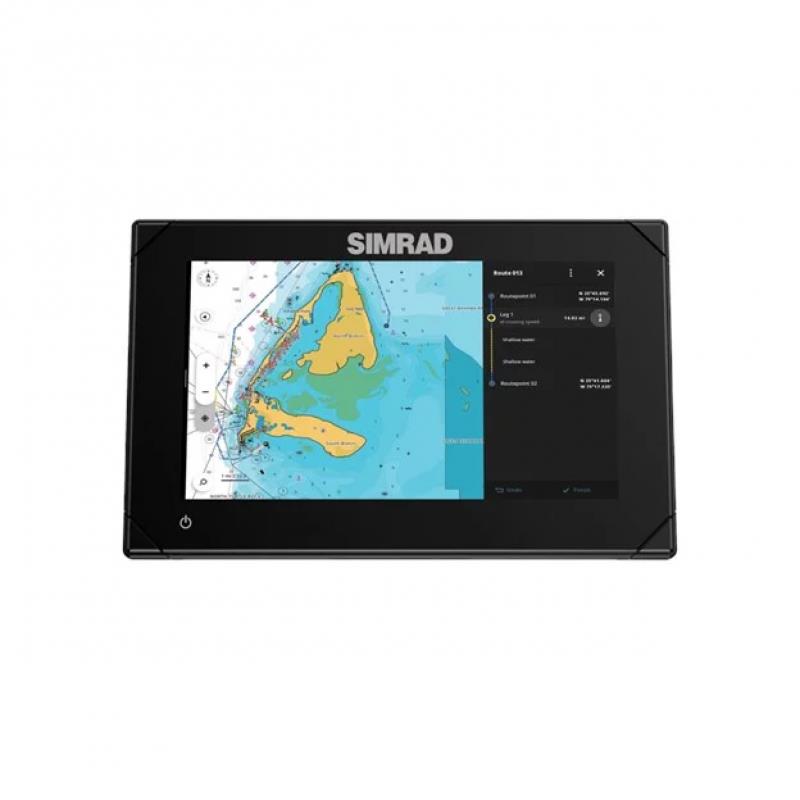

• support for c-map® discover™x and reveal™ x charting optimized for the maritime sector, offering a modern and intuitive cartographic presentation as well as daily updates
• high-definition IPS touchscreen displaying extreme viewing angles, even visible through polarized glasses

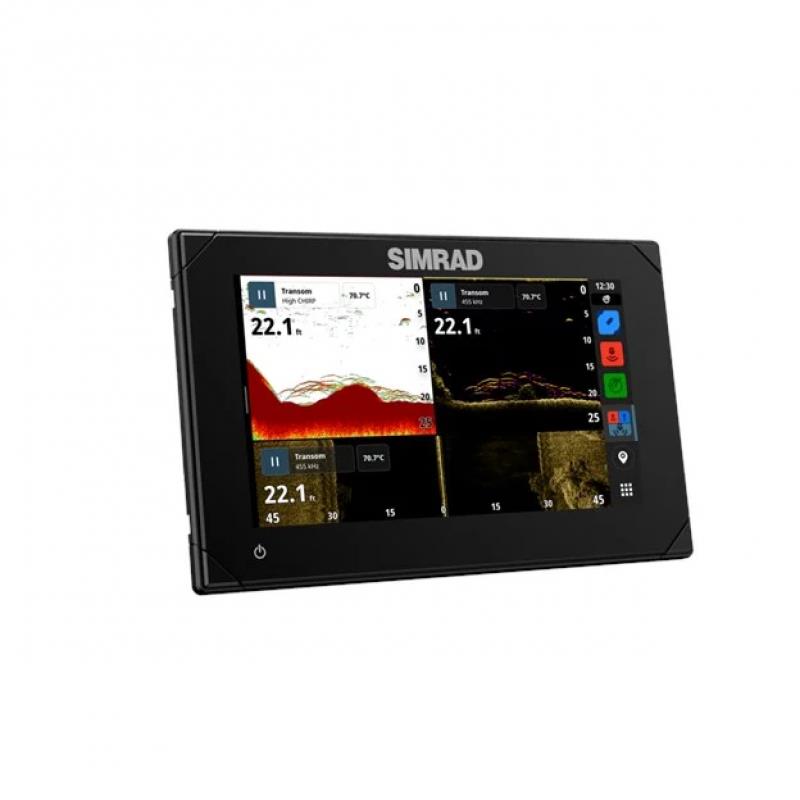

• support for high-resolution views of fish and structure thanks to active imaging™ technology, the CHIRP sounder and the sidescan and downscan imaging™ features, as well as a 1 kW transducer capability to reach greater depths
• setup assistant for quick start-up and simpler sounder configuration
• full integration with the possibility to expand the system with a sounder, an autopilot, a Simrad® radar and much more
• faster autorouting and seamless accessibility

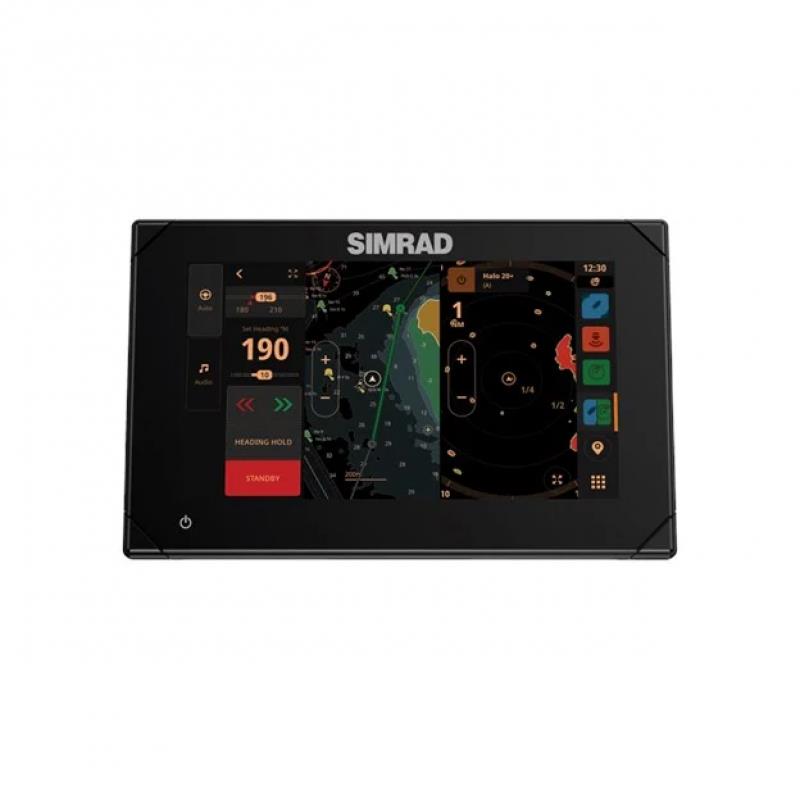

• see near and far simultaneously (up to 42 nm) thanks to halo® radar support, and benefit from ultra-fast updates every second

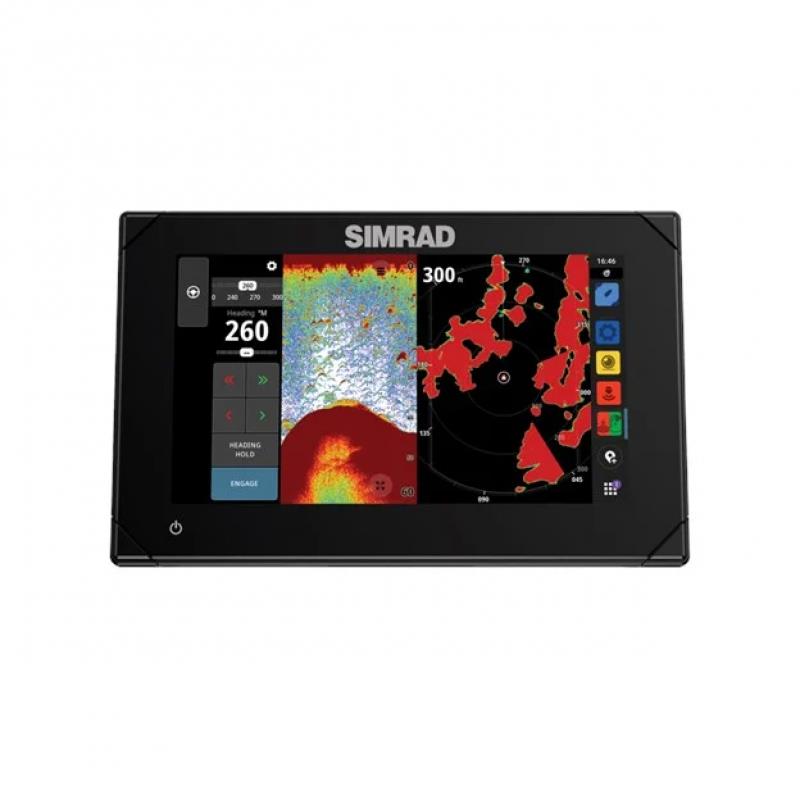

• stay on course thanks to full integration of the Simrad® autopilot

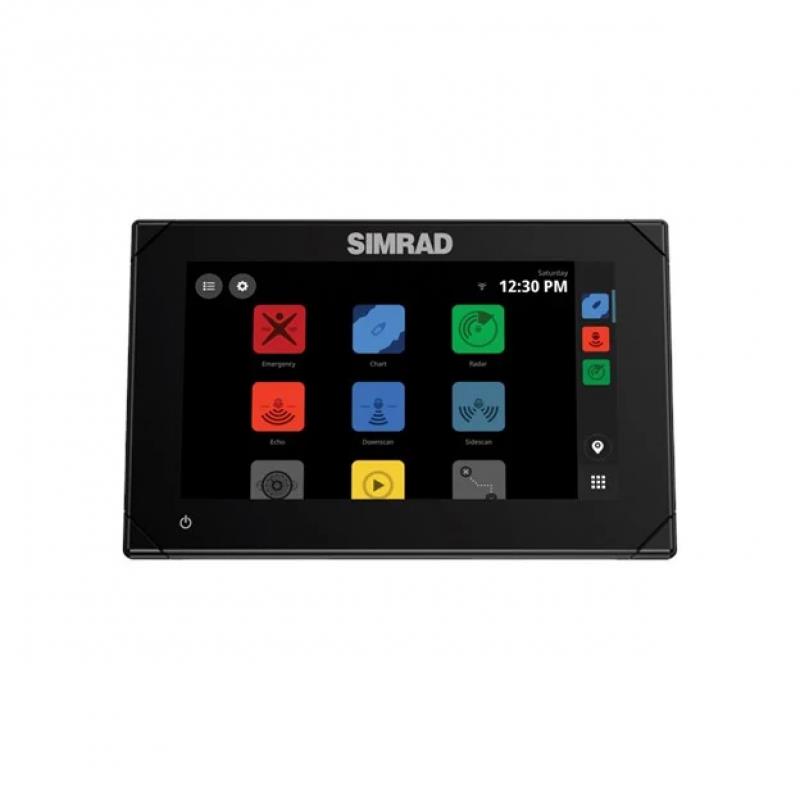

• simple and modern interface
• third-party app integration
• wireless connectivity, full ethernet networking capability and NMEA 2000®
• IP video support

technical specifications:
• SD card storage: 1 microSD slot
• Ethernet ports: 1 port
• NMEA 2000 connectivity: 1 x NMEA 2000 micro-C port, 1 LEN
• Screen resolution: 1024 x 600 px
• Max power consumption: 11.5 W (830 mA at 13.8 V)
• Power supply voltage: 12 V DC (10 - 17 V DC min - max)
• Operating temperature range: -15°C to 55°C
• Recommended fuse amperage: 2 A
• GPS receiver channels: 32 channels
• Waypoints, routes, tracks: 6000 waypoints, 500 routes with 100 max route points, 50 tracks with up to 12,000 track points.
• Screen size: 17.78 cm
• Viewing angle: 85°
• Bluetooth: Bluetooth 4.0
• Supported charts: c-map discover™ x, c-map reveal™ x
• Item Wi‑Fi connectivity: IEEE 802.11b/g/n
• GPS: internal, 10 Hz, WAAS, MSAS, EGNOS
• Waterproofing: IPX6 and IPX7
• Interface: multi-touch screen
• Sounder compatibility: one 9-pin Xsonic 1 kW sonar port. Single-channel CHIRP, 50/200 kHz, HDI, Active Imaging
• AIS: receive AIS data over NMEA 2000
• Digital switching: Simrad Command DDS only on release to market
• Dimensions (H x W x D) : no bracket, no suncover: W: 195.0 mm x H: 123.0 mm x D: 79.5 mm
• Weight: 0.8 kg

in the box:
• NSX 3007 sounder
• U bracket Vulcan 7/GO7 ref = 000-12372-001
• 4-pin power cable 2 m ref = 000-00128-001
• NSX 3007 screen protection cover ref = 000-15816-001
• NSX 3007, Vulcan2 dashboard mounting kit ref = 000-15823-001
• Angle clips NSX, Vulcan2 ref = 000-15822-001
• 1 HDI and/or Active Imaging 3/1 transducer depending on the selected model; models without transducer are shipped without a transducer.
