Transducer Pack Humminbird Mega Live 1 + Perche De Sonde Live Basic Pike’N Bass

Name: TRANSDUCER PACK HUMMINBIRD MEGA LIVE 1 + PERCHE DE SONDE LIVE BASIC PIKE’N BASS
Brand: Humminbird
SKU: 356664

Read more-Product description

1352€

Recommended retail price : €1454.50

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

ENSEMBLE-356664
(Unavailable)

€1352

Models & specificities Descriptive

Descriptive

Back to menu

Because one cannot go without the other!!

For an optimal configuration of your HUMMINBIRD GPS fishfinder combo compatible with the HELIX G3N, HELIX G4N, SOLIX and APEX series, this MEGA LIVE transducer pack and LIVE BASIC PIKE ‘N BASS transducer pole in the 1m version, reference 410191 is the ultimate and accessible solution for real-time images.

Ethernet connection via Ethernet adapter cable reference AS-ECQDE on the HELIX G3N/HELIX G4N only. Software version 2.660 minimum required on HELIX G3N and G4N series.

Direct Ethernet connection on /SOLIX / APEX and XPLORE. Software version 4.020 minimum required on SOLIX / APEX and XPLORE series.

The MEGA LIVE 1 HUMMINBIRD transducer gives you real-time images in 3 views: Forward, Down and Landscape and thus complements the technologies of your fishfinder.

It is therefore essential to use the LIVE BASIC Pike'N Bass transducer pole Made in FRANCE which installs easily on all types of boats thanks to the pedestal supplied as standard. Made of anodized aluminum tubes, it adapts to all boat decks: polyester, aluminum, wood or polyethylene.

It allows rapid deployment of your transducer and 360° orientation to optimize the view on your screen in all circumstances. It folds easily into a horizontal position so you can leave your complete installation safely on your boat while navigating at high speed and also on the road during transport.

The brass inserts 247316 247306 and stainless 247406 AMIAUD, optional, make pedestal installation on your vessel easier.

Power supply advice:
The MEGA LIVE 1 transducer must be powered at 12v in addition to your fishfinder. You must provide enough amperage on your 12V battery for good autonomy over an entire day.

It is recommended to install a switch and/or a circuit breaker on the power supply of your MEGA LIVE transducer so you can cut it off while moving on the water.

Installation tips for mounting the MEGA LIVE transducer on the removable transducer pole:
The transducer pole is generally mounted on the starboard side and next to the helm so you can adjust the orientation of your transducer while seated at your console seat and enjoy a full view if there are two anglers fishing vertically.

For navigation with a powered engine and at high speed, you should fold your pole into the horizontal position to avoid any risk of damage and thus protect your transducer.

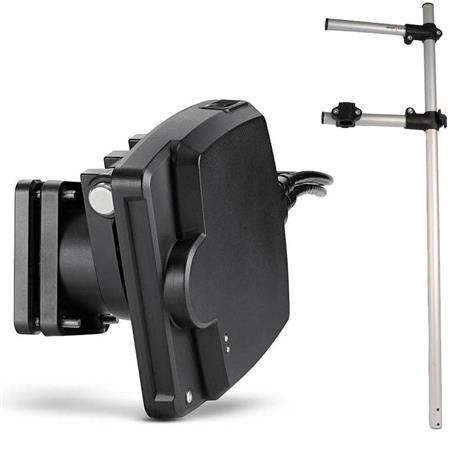

Pack contents:
• 1 MEGA LIVE 1 transducer
• 1 Adjustable Mounting Bracket for engine shaft
• 1 Ethernet Cable 6 ML
• 1 Power cable 3ML 12V
• 1 Interference filter
• 1 PDF documentation
• 1 LIVE BASIC PIKE N BASS transducer pole 1ml reference 410191 with black pedestal.

User guide

Installation guide for the Mega Live Imaging system
