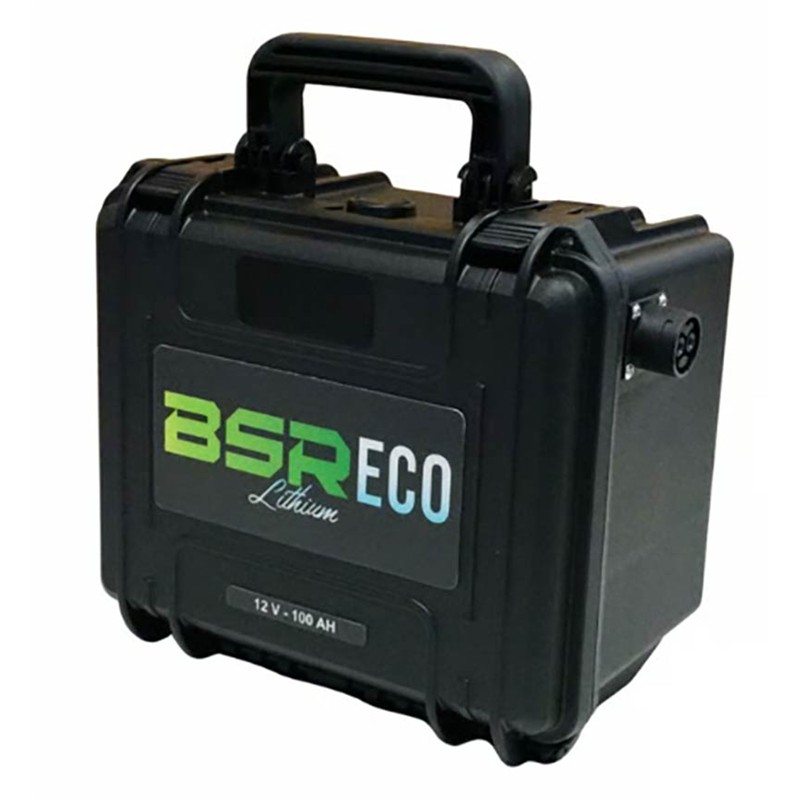

Lithium Battery Bsr Eco G2 12V100amp Bluetooth + Chargeur

Read more-Product description

~~€912.50~~

Recommended retail price : €912.50

Pay it in 3 or 4 interest-free payments

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Weigth (kg)

Voltage (V)

Amperage max.

Price inc VAT

BSR-ECOG2-12100

~~€912.50~~

10.5

~~€912.50~~

Models & specificities Descriptive

Descriptive

Back to menu

key features :
The best of lithium lifepo4 technology at the best price in a portable case to optimally power your motor and give it a range ensuring your longest fishing sessions.

-lifepo4 technology

• portable case
• waterproof housing ipx7
• capacity 100 ah
• voltage 12.8 v
• delivered power 1280 wh
• 2000 discharge cycles at 100%
• 1 circular Amphenol 50 a connector for motor
• battery control via bluetooth app bsr-lithium

The new lithium eco g2 batteries now include Bluetooth connectivity via the bsr-lithium app.

Portable thanks to their waterproof carrying-case format, they use lithep04 technology guaranteeing safety and longevity, and are designed to power the motor exclusively.

Explosion-proof | shock-resistant structure

connectors :
• Amphenol 50amp connector > motor connection.
• maximum tolerated motor consumption = 50amp
Please check that your motor's consumption does not exceed the maximum consumption accepted by the battery.

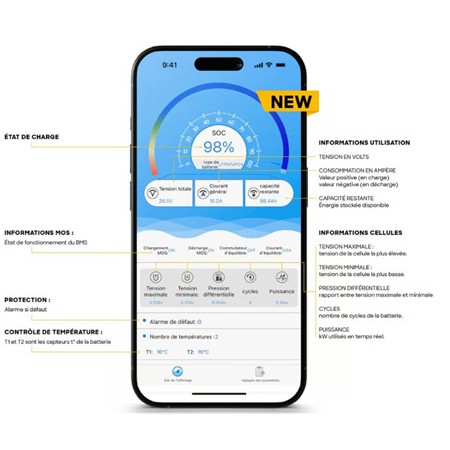

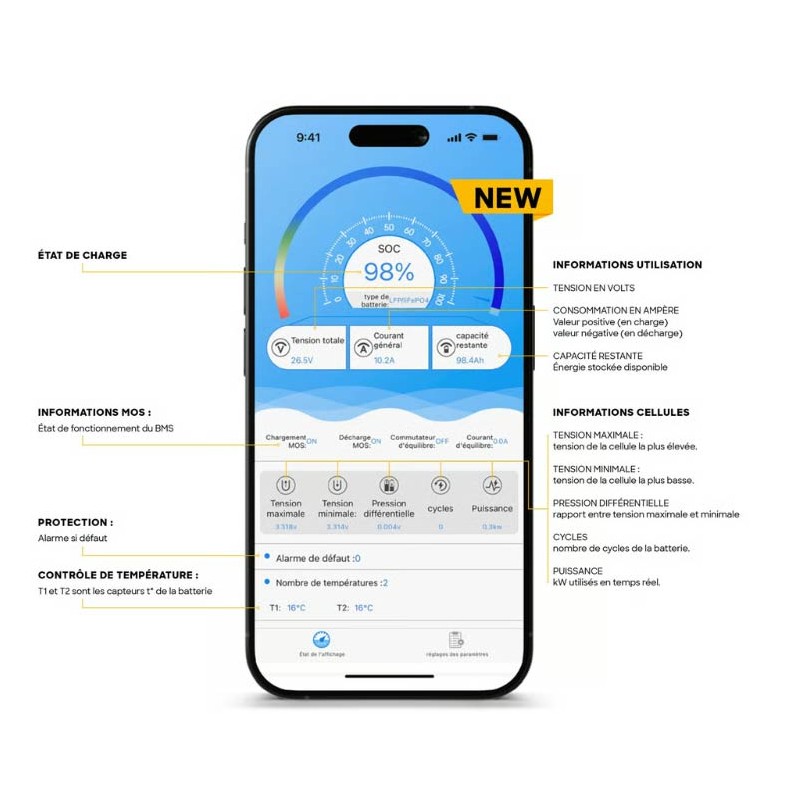

bsr-lithium app which provides in real time :
-consumption
-cell monitoring
-number of cycles
-active balancing
-safety alert
-remote after-sales service

technical specifications bsr eco g2:
• structure : case
• connectors : quick circular Amphenol 50amp connector
• after-sales service in France
• type : 12v 100ah
• voltage : 12,8v
• technology : life p04 / 1280 wh
• discharge cycle : 2000-3000 at 100% dod
• dimensions (mm) : 258x243x167
• net weight : 10.5 kg
• charge : 1c max i.e. up to 50a
• discharge cycle : 2000 at 100% dod
• charging voltage : 14,6v
• max discharge voltage : 10,50v
• ideal charging temperature : 0 to 45 °c
• possible discharging temperature : -25 to +55°c
• waterproof – ipx7
• resistant to shock – vibration – sand – sea
• connector for circular Amphenol 50a motor cable.
• smartphone app

in the box :
• 1 eco g2 battery 12v 100ah
• 1 12v 10amp non-waterproof charger
• 1 circular Amphenol 50a motor connector

optional accessories :
• Amphenol 50amp connector for electric motor power supply on bsr eco g2 ref bsr-precog2
• spare 12v non-waterproof charger for bsr eco case ref bsr-eco-ch12

installation advice :
If you position your battery in a locker on your boat, remember to strap it down so that it does not move and does not suffer shocks during high-speed navigation and/or during road transport.

it is recommended to install a circuit breaker/main cutoff switch on your electrical installation in order to cut any power source at the battery output.

usage advice :
Warning, this battery does not have a regulated output to power a fishfinder. It is therefore not recommended to connect a fishfinder to the motor output pin to avoid interference.

However, you can use this battery to power your entire 12v electrical system excluding the motor at the same time. You will thus be able to power your fishfinders, your live transducer, your ethernet switch and other bilge and/or livewell pumps with excellent autonomy.
