Reference
Price inc VAT
Voltage (V)
Amperage max.
Price inc VAT
BSR-ECO1250
€707.50
12
50
€707.50
Models & specificitiesDescriptiveReviewsA questionBesoin de formation
Descriptive
Back to menu

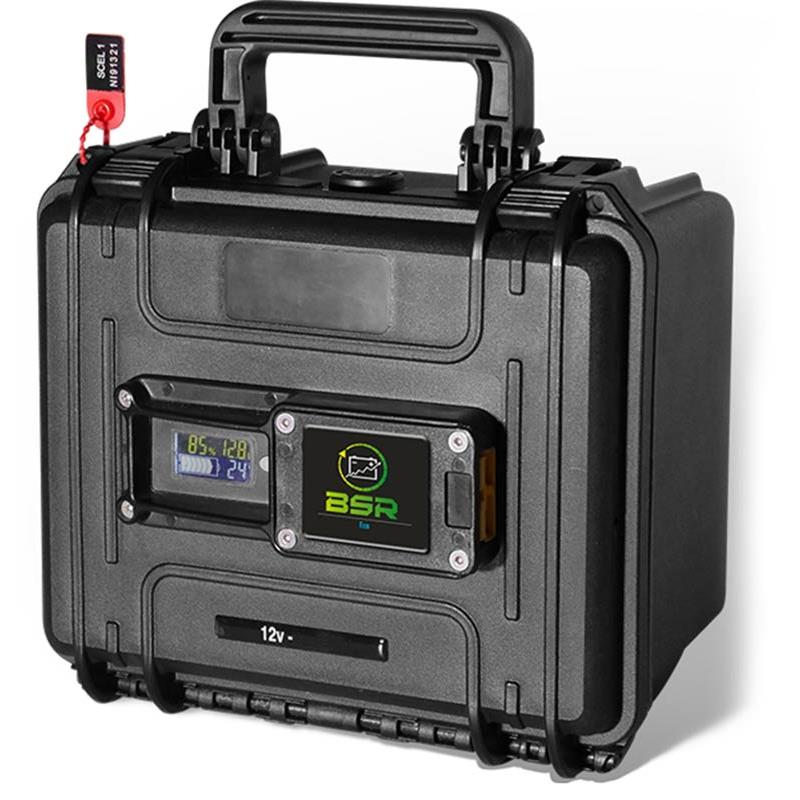

VLECO1250 - ECO lithium battery in the form of a 12V 50A suitcase delivered with charger for electric motor supply ONLY.
The new range of ECO lithium batteries is packaged in the form of a waterproof IPx7 Polypropylene transport case.
Developed for intensive use in navigation and specially designed to power Minn Kota electric motors. Focus on your fishing session, the BSR ECO battery takes care of the rest!
The case is equipped with a motor power output with a 50A Anderson connector. An LCD display indicating the voltage and the remaining percentage.
Battery delivered with its NOT waterproof 12V 10A charger with Anderson plug
BSR ECO battery features: • Structure: Polypropylene Suitcase Made in Italy • Connectivity: Quick Anderson waterproof 50A plug • Sav in France • Type: 12v 50Ah • Voltage: 12.8v • Technology: Life p04 / 640 wh • Discharge Cycle: 2000-3000 at 100% dod • Dimensions (mm): 258x243x167 • Net Weight: 6.5 Kg • Discharge: 2c or 100A max • Charge: 1c max up to 50A • Discharge Cycle: 2000 at 100% dod • Charging Voltage: 14.6v • Maximum Discharge Voltage: 10.50v • Ideal Charging Temperature: 0 to 45 °C • Possible Discharge Temperature: -25 to +55°c • Waterproof – IPX7 • Shock – Vibration – Sand – Sea Resistant
Connector for 50A Anderson motor cable to be soldered or crimped.
In the box: • 1 ECO 12v 50Ah Battery • 1 12v 10amp non-waterproof charger with Anderson plug • 1 50A Anderson motor connector for motor cable to be soldered or crimped
Optional Accessories : • Anderson plug for electric motor power supply on BSR ECO ref BSR-PRAND • Firewall Support for BSR ECO electric motor Anderson plug ref BSR-SUPP-AND • Spare 12V non-waterproof charger for BSR ECO case ref BSR-ECO-CH12
Installation Tips: If you've placed your battery in a compartment of your boat, remember to secure it so that it doesn't move and doesn't get hit during high-speed navigation and on the road.
It is recommended to install a general cut-off switch on your electrical installation to cut off any power source from the battery output.
Usage Tips: WARNING, this battery does not have a regulated output to power a sounder. Therefore, it is recommended not to connect a sounder to the motor output pin to avoid any interference.
However, you can use this battery to power all your 12V electrical equipment EXCEPT MOTOR at the same time. For instance, you'll be able to run your sounders, your live probe, your Ethernet switch and other bilge pumps and/or live wells with excellent autonomy.
