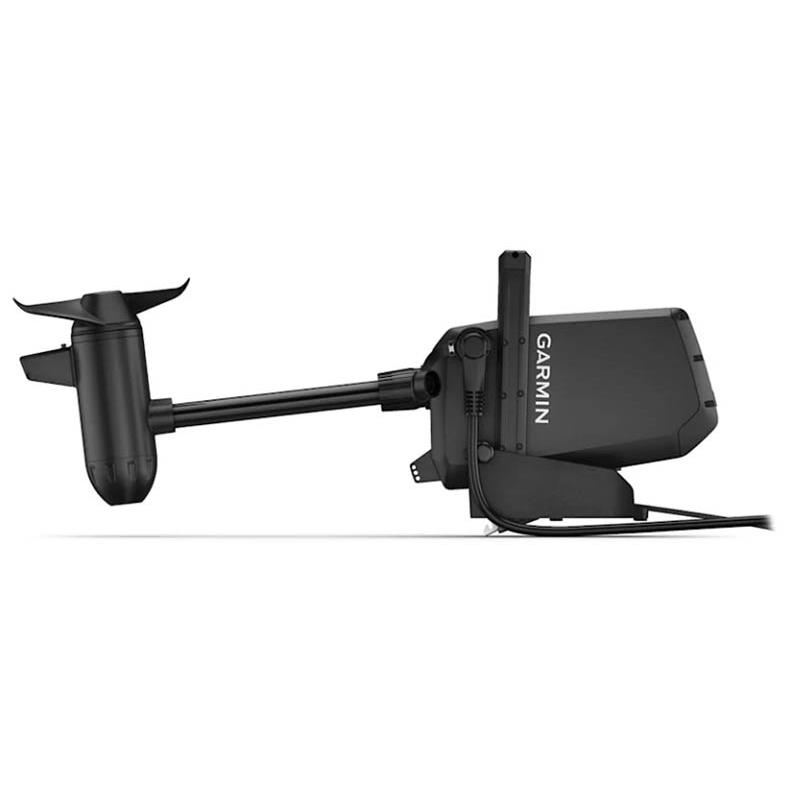

Electric Motor For Kayak With Remote Control And Pedals Garmin Force Current Gps Pour Kayak Avec Télécommande Et Pédales

Read more-Product description

Garmin
£3045
Recommended retail price : £3045
20 days for returns
20 days for returns
Models & specificities Descriptive Reviews A question Besoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Weigth (kg)
Model
Voltage (V)
Thrust (lbs)
Price inc VAT
010-02864-00
£3045
12.6
Avec Télécommande et Pédale
12/24
30Lbs en 12V et 50LBS en 24V
£3045
Models & specificities Descriptive Reviews A question Besoin de formation
Descriptive
Back to menu

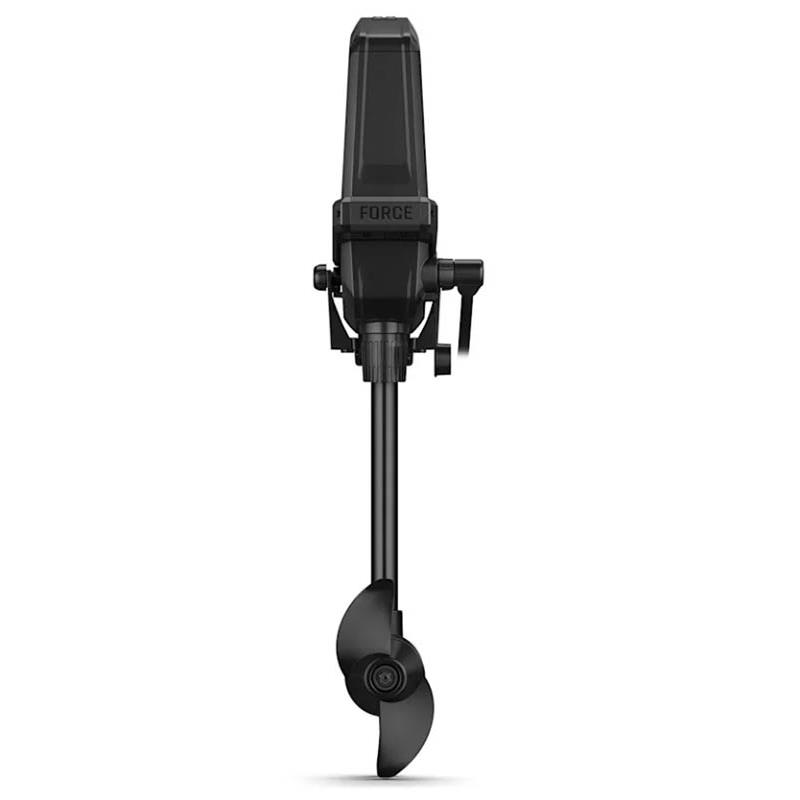

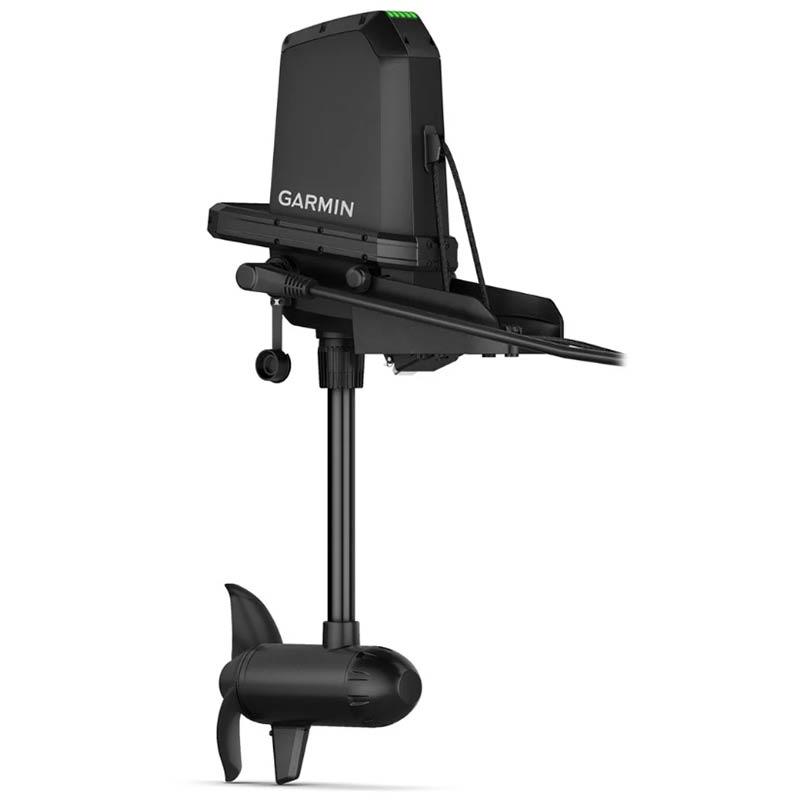

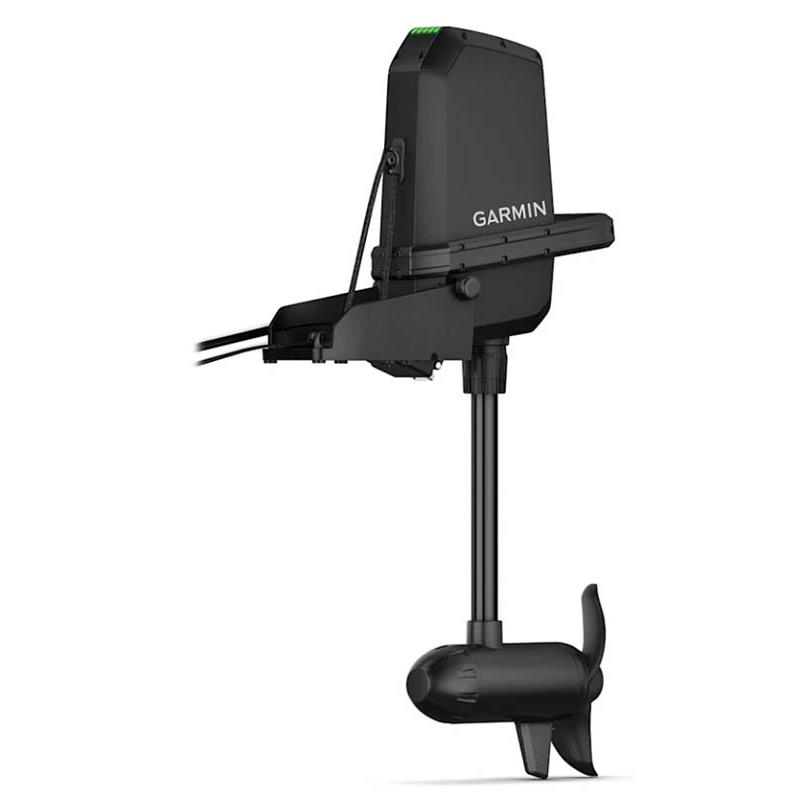

LEGENDARY PERFORMANCE WITH FORCE CURRENT for Kayak
The electric motor Force Current has been specially designed for kayak fishermen looking for a robust propulsion system, with exceptional manoeuvrability, wireless integration and hands-free wireless control of speed and direction.

LEGENDARY PERFORMANCE AND RELIABILITY OF THE FORCE RANGE

WIRELESS CONTROL OF SPEED AND DIRECTION WITH THE INCLUDED REMOTE

STAY ABOVE THE FISH WITH THE VIRTUAL ANCHOR AND MULTI-BAND GPS

SIMPLE AND INTUITIVE INSTALLATION

WIRELESS INTEGRATION WITH COMPATIBLE PLOTTERS

WIRELESS MAN OVERBOARD BEACON

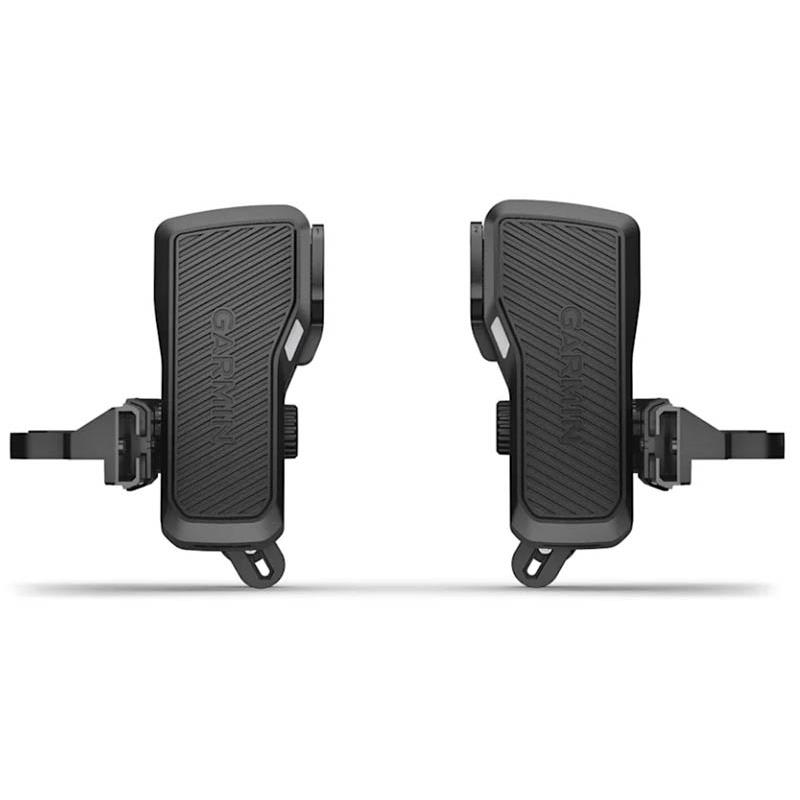

Pedals:
The pedals wirelessly connect to the electric motor to avoid cluttering the deck and facilitate installation. This all-in-one solution for speed and direction lets you fish, navigate and retrieve your catch without ever setting down your rod. The programmable buttons on the pedals provide quick access to key functions like virtual anchoring and course holding.

UNPRECEDENTED MANOEUVRABILITY:
Manoeuvre your boat quickly with forward and reverse thrust in all directions. Slip between obstacles, pivot in place, follow the banks or glide through the weeds as you fish. Use the included wireless remote for intuitive gesture guidance.

PLOTTER INTEGRATION:
Wireless integration with your Garmin plotters lets you create routes and tracks that the electric motor will follow as you fish. From the plotter control bar, you can also adjust the speed, direction, engine settings and other settings.

STAY IN PLACE:
The virtual anchor function with multi-band GPS represents our most precise boat positioning technology. It keeps your kayak perfectly in place, even in strong wind or current.

Priority on security:
When you wear the included wireless man overboard beacon, the motor automatically stops if you fall in the water.

DURABLE AUTONOMY:
The efficient brushless motor runs longer than brush motors; concentrate on your rod without worrying about battery failures.

FLOATING REMOTE:
Navigate easily with the included remote, equipped with simple gesture guidance technology.

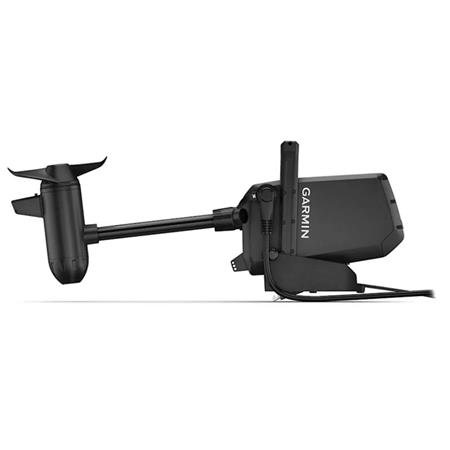

STORE AND DEPLOY easily:
Deploy or store the propeller easily in the shallows with one hand thanks to the included pull rope and wedge kit.

INTEGRATION WITH CONNECTED WATCHES:
Pair your compatible Garmin smartwatch with the motor to control direction, virtual anchoring and much more from your wrist.

PEDAL BUTTONS:
Activate the virtual anchor, hold the course and other functions directly from the pedals.

TWO PROPELLERS INCLUDED:
Use the high-performance propeller to optimise the battery, and the weedless propeller to navigate through vegetation.

STANDARD INSTALLATION:
The standard 4-hole mounting template makes it easy to install on many kayak models. The wireless pedals and mounting rails are also designed to fit different types of installation.

QUICK INSTALLATION:
Hit the water or dock quickly; the motor and pedals install and remove in a flash.

QUIET:
You don't scare the fish: the motor is extremely quiet both on the surface and in the water.

ROBUST DESIGN:
The shaft and motor components in high-strength alloy are designed to withstand freshwater and saltwater environments, with advanced protection against corrosion.

General characteristics :
• Usage Environment = Freshwater, Brackish water and Seawater
• Type of Installation = 4-hole Tilting Mount
• Maximum thrust = 22.68 kg (ISO 13342) with the high-performance propeller in 24 V13,60 kg (ISO 13342) with the high-performance propeller in 12 V
• Voltage = 12 V or 24 V
• Electric steering = YES
• Built-in electronic compass = YES
• Built-in GPS = Yes (dual frequency GPS)
• Warranty = 3 years, lifetime and limited for the shaft
• Water Resistance = IPX7
• Mounting Location = Stern/(back)
• Wireless Remote = Yes (included)
• Shaft length (from support to top of drive motor) = 16.6? (max) ; 11.4? (min)
• Compatible with pedals (kayak) in OPTION = YES

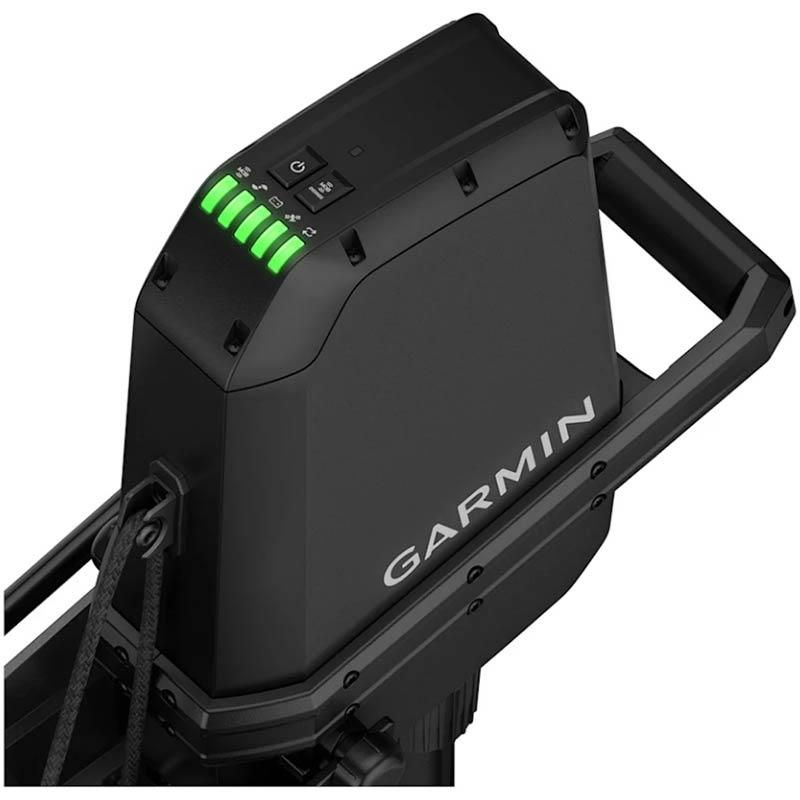

• Battery Indicator = YES
• Variable Speed Control = Yes (20 steps)
• Control from your quatix = YES
• Manual reverse rotation = YES

Autopilot features
• Route tracking = YES
• Anchor lock = YES
• Smart Virtual Anchor Features = YES
• Virtual Anchor Pivoting = YES
• Heading hold = YES
• Cruise control = YES
• Gesture Features = Yes (Manual+, Heading Hold+, Advance+)

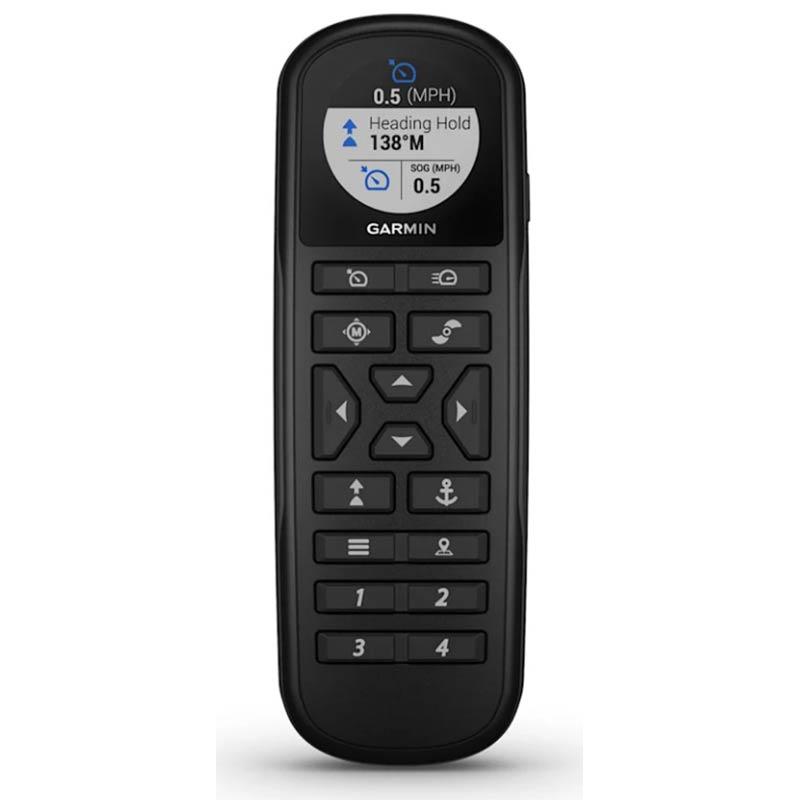

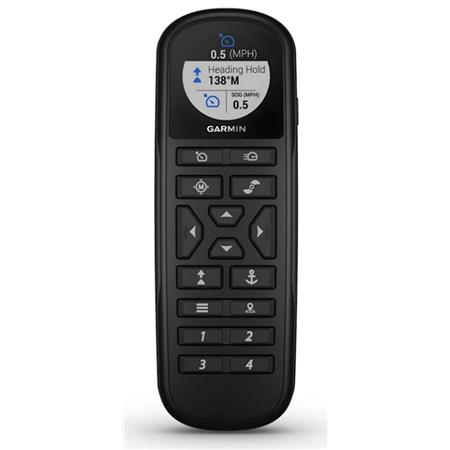

Remote Control Features:
• Screen Size = 30.2 mm (1.2?) diameter
• Screen Resolution = 240 x 240 pixels
• Screen Type = Color, Anti-glare, MIP (memory-in-pixel) transflective
• Tracer Programmable Keys = YES
• Autopilot Function Control = YES
• Water Resistance = IPX7
• AUTONOMY = Normal use with low backlight, 43 weeks
• Floating = YES

In the box :
• Force® Propulsion System for Kayak
• Force Electric Motor Remote with Lanyard
• Left/Right Pedals (with Mounting Rails and Stands)
• Black MOB Beacon
• Power Cable
• Pull Rope with Wedge
• Fin
• High Performance Propeller
• Weedless Propeller
• Mounting Kit
• Documentation

Optional Accessories :
• Replacement Remote - Part No. 010-12833-00
• High Performance Propeller - Part No. 010-12832-00
• Weedless Propeller - Part No. 010-12832-01
• Pedal Kit with Mounting Rails - Part No. 010-13307-00
• Pedal Mounting Kit - Part No. 010-13307-05
• Motor Mounting Base Kit - Part No. 010-13307-20
• Motor Mounting Base Kit - Part No. 010-13307-20
• Footrest - Part No. 010-13307-40
• Pull Rope with Wedge Kit - Part No. 010-13307-30
• Motor Power Cable - Part No. 010-13307-15
• 40 A Circuit Breaker - Part No. 010-13307-10
• Replacement Fin - Part No. 010-13307-25
• Replacement White MOB Beacon Wristband - Part No. 010-02908-30
• Replacement Black MOB Beacon Wristband - Part No. 010-02908-31
• Replacement Carabiner with Clip for White MOB Beacon - Part No. 010-13401-20
• Replacement Carabiner with Clip for Black MOB Beacon - Part No. 010-13401-21
