Gps Sounder Furuno Gp1971f

Name: GPS SOUNDER FURUNO GP1971F
Brand: Furuno
SKU: 193276

Read more-Product description

£1547.14

Recommended retail price : £1547.14

20 days for returns

Receive our offers and promo codes by email
Subscribe to the newsletter

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Cons. (W)

Pixels

Transducer

Price inc VAT

IMD034890AB

£1547.14

1000

800 x 480

£1547.14

Models & specificities Descriptive

Descriptive

Back to menu

Function	Value
Screen size	9 inches
Touchscreen	yes
Classic 2D	yes
Down View	no
Side View	no
CHIRP	yes
GPS	yes
Bathymetry	no
Chart reader	yes
Live	no
Network	yes

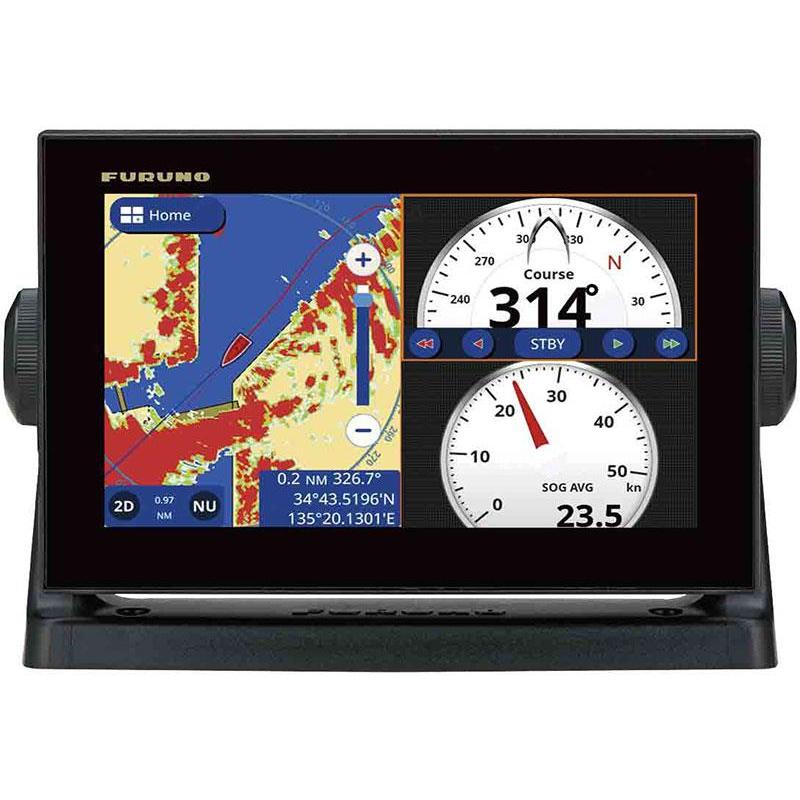

The GP1971F is a Multitouch touchscreen multifunction display, featuring:

GPS (built-in) / chart reader 9'
CHIRP or REZBOOST sounder (with Accu-Fish Function and bottom discrimination) power up to 1kW
Compatibility with high-resolution C-MAP 4D charts with Easy Routing, satellite imagery, Raster and Vector charts
Radar image with the radar Wifi DRS4W (optional) for simplified installation. Overlay possible with an optional compass.
Power supply: 12-24 VDC - 1 NMEA2000 and NMEA0183 interface for possible connection to a NavNet TZT/TZT2 or another GP1X71F ;
SLOTS : 2 x MicroSD cards ; internal memory : waypoints : 30 000 points ; tracks : 30 000 points ; routes : 1 000 routes (Max. 50 points for each route) ; compatible with GC-00 wireless remote control

Specifications :
• Screen: GP-1971F: 9" Wide color LCD
• Screen resolution: WVGA 800 x 480 pixels
• GPS: Internal / 72-channel GPS / WAAS 1 channel
• Display modes: Chart reader + Sounder + Radar + AIS + Instruments (Nav Data, Engine, Wind, Fuel tank) + Autopilot
• Waterproofing: IP56
• Power supply: 12-24 VDC, 1.1-0.6 A

In the box :
• 1 plotter
• 1 power cable
• 1 screw kit
• 1 bracket
• 2 knobs
• 1 protective cover
• user manual
• cutout template for flush mounting
