Color Fishfinder Furuno Fcv295

Read more-Product description

Furuno
£3519.91
Recommended retail price : £4047.12
20 days for returns
20 days for returns
Models & specificities Descriptive Reviews A question Besoin de formation
Models & specificities
Back to menu
Reference
Price inc VAT
Model
Price inc VAT
IMD02956001
£3519.91
Sans Sonde
£3519.91
Models & specificities Descriptive Reviews A question Besoin de formation
Descriptive
Back to menu
Digital LCD graphic fishfinder 10,4"" color 450 cd/m² - Resolution 640x480 pixels - Power 1000 to 3000 W

Adjustable operating frequency

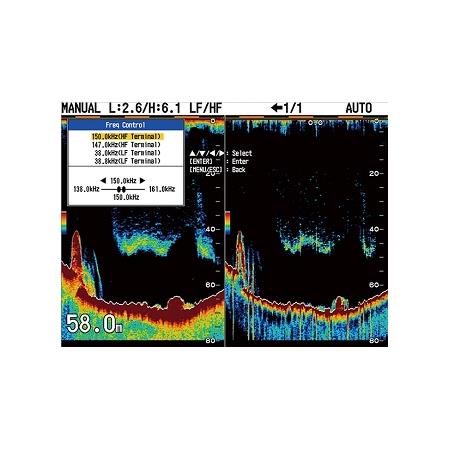

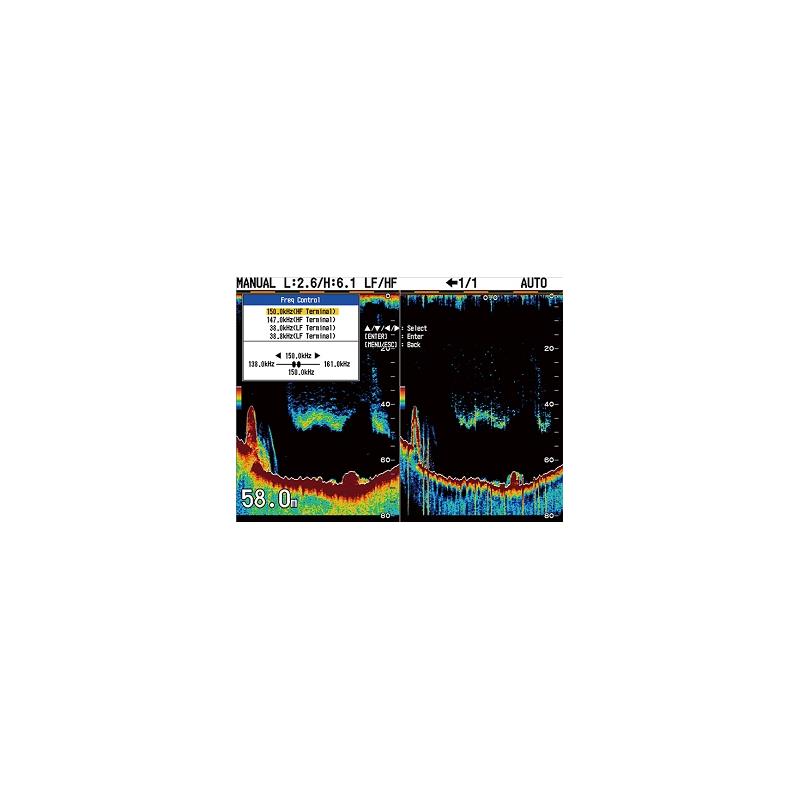

If a Furuno transducer is used with the fishfinder FCV295, simply program it in the menu and the fishfinder adjusts its power as well as its frequency. The user can at any time change this frequency to refine detection. This function is particularly useful for boats practicing different types of fishing or in very busy areas where interference from other boats' fishfinders can become annoying.

Gain processing applied to all echoes on the screen
The FCV295 has a quick gain adjustment function that allows the new setting to be applied both to new echoes and to those already present on the screen. This function enables a much more effective and faster adjustment.

White contour function for good bottom discriminationOn the FCV295 fishfinder, the upper part of the bottom is displayed in white to clearly distinguish the bottom from echoes close to it. While the traditional white line function replaces the darkest color with white, the white contour function uses bottom discrimination to display the white color.

Faster transmission sequence for more detailed detection
The FCV295 fishfinder has an emission repetition rate increased by 30 % compared to a conventional fishfinder. The result is a finer and more detailed image under the same conditions. The transmission speed is higher in shallow water and adjusted according to depth rather than the selected scale.

An exclusive Furuno Technology (FDF™)
The digital filter (FDF™) optimizes bottom discrimination performance and improves gain control. A new automatic adjustment process: it is calculated based on the depth of the seabed and not on the selected scale.

Compatibility with TZ Professional software and the bottom hardness module
The Furuno FCV295 & FCV1150 fishfinders are compatible with TZ Professional software and the Bottom Hardness module*. Thanks to this feature, it is now possible to record Bottom Hardness (Backscatter) data from these two fishfinders. After retrieving all the data, you can display Bottom Hardness in color on the chart by selecting the corresponding parameters found in the Chart menu of the ribbon.

Features :

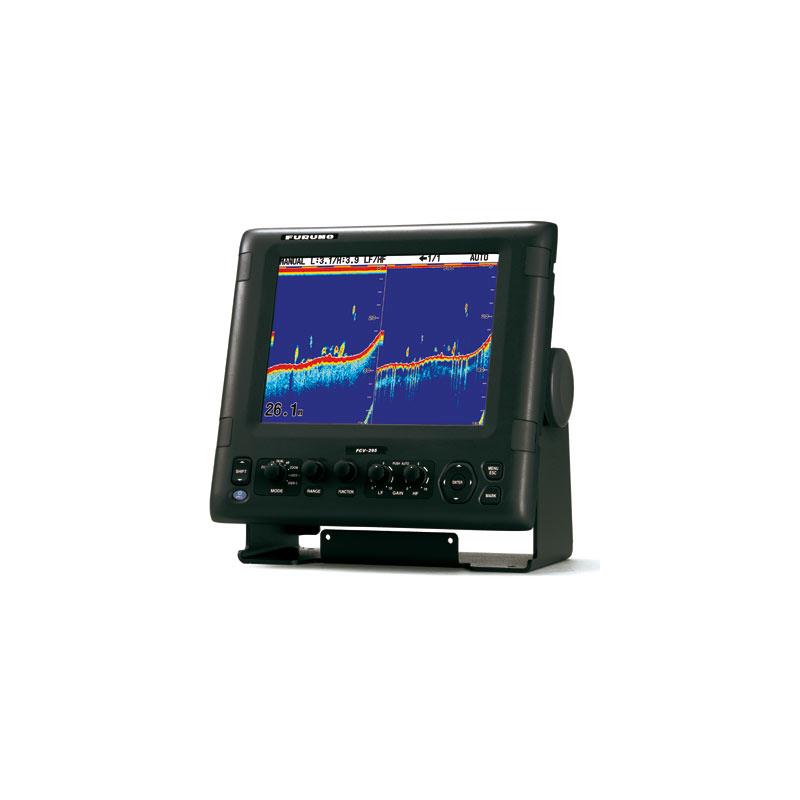

The FCV295 fishfinder is a concentrate of technology, with a high-brightness 10.4" screen and a resolution of 640 x 480 pixels. It is a digital fishfinder designed for different types of professional fishing. The FCV295 fishfinder display is customizable, making it modular as desired.
• An emission power between 1 and 3 kW
• An operating frequency: from 28 to 200 kHz
• Waterproof rating IP55
• An intuitive menu in French
• Digital filter technology: a clear and precise image of echoes
• Readability in full sun and from all angles
• Anti-reflection filters
• Echo up to 64 colors for detailed readability
• Excellent detection in shallow water (50 cm)
• Compact footprint, can be flush-mounted or placed on a supplied swivel bracket

Technical specifications :
• Power supply 12/24V
• Waterproofing : X5 IP
• Frequencies : 25-52, 66-110, 140-170, 184-220 KHZ
• Brightness : 450cd/m²
• NMEA0183 / 1
• Power : 1k-3k W
• Resolution : 640X480 pixels
• Screen size : 10.4’’

Box contents :
• 1 X Screen
• 1 X Protective cover
• 1 X Bracket
• 2 X Knobs
• 4 X Fuses
• 1 X Mounting gasket
• 1 X Cutting template for flush mounting
• 1 X Installation kit
• 2 X Terminals
• 1 X Cleaning cloth
• 1 X Installation manual
• 1 X User manual
• 1 X Laminated quick start guide (Multilingual)
