| Function | Value |
|---|
| Screen size | 16 inches |
| Touchscreen | yes |
| Classic 2D | yes |
| Down View | yes |
| Side View | yes |
| Chirp | yes |
| Gps | yes |
| Bathymetry | yes |
| Chart reader | yes |
| Live | yes with optional transducer |
| Network | yes |
*Some subtleties and options may be indicated in the full description, do not hesitate to look further or ask for advice.

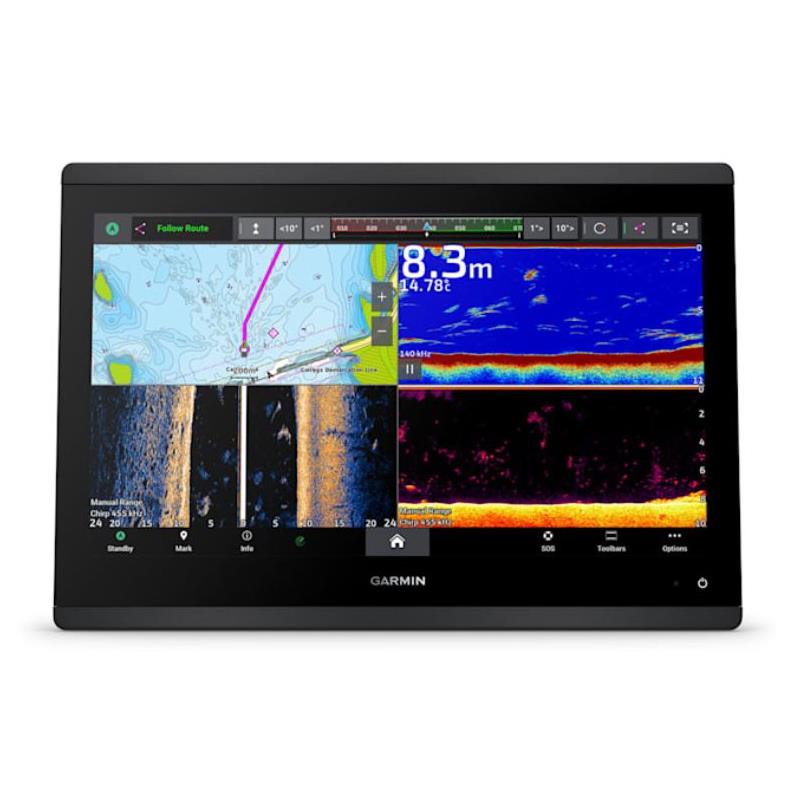

With its sleek design, powerful processing and improved IPS display, this advanced 7″, 9″, 12″ or 16″ chartplotter fits perfectly into your Garmin marine system. Integrates easily with more engines.
Easily create your marine system using our advanced network connectivity with Support for Garmin Navionics+™ and Garmin Navionics Vision+

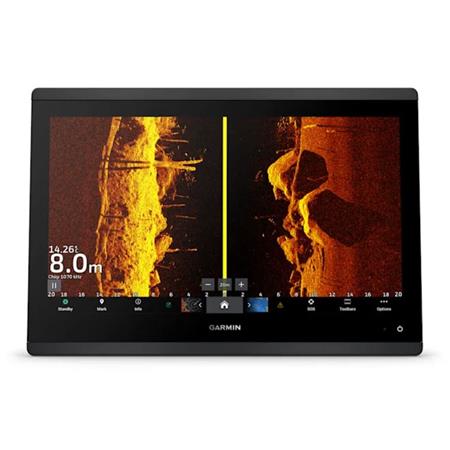

ULTRA-HIGH-DEFINITION SCANNING SOUNDER :

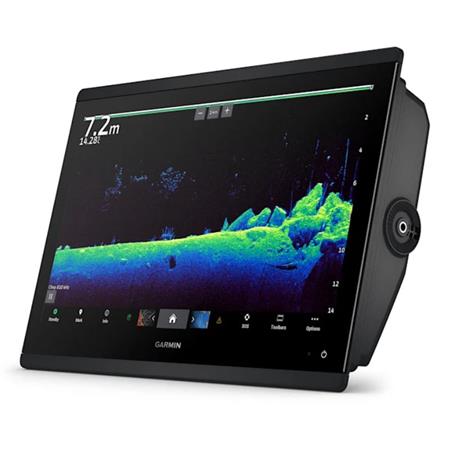

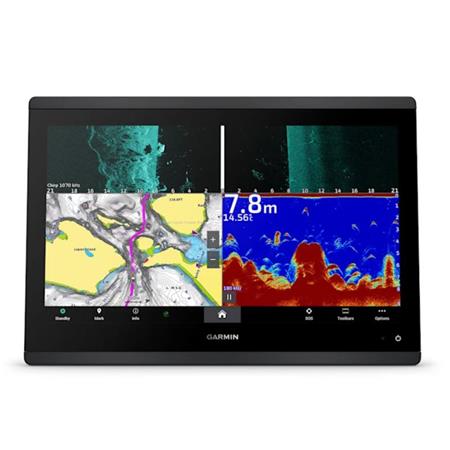

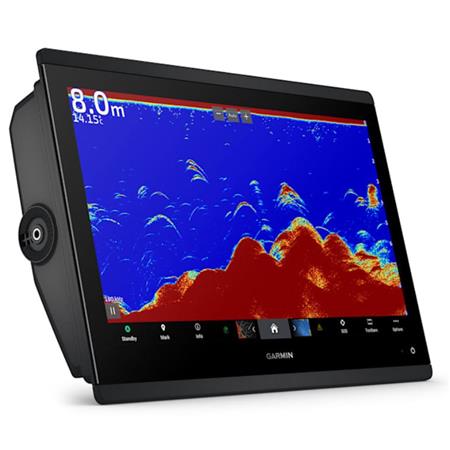

Enjoy the built-in ultra-high-definition SideVü™ and ClearVü™ scanning sonars, with their vivid, high-contrast colors to distinguish fish from structure. The GPSMAP X3 series of chartplotters also supports traditional 1 kW sonar functions. Compatibility with the internal sonar only on xsv models.
PANOPTIX SOUNDER SUPPORT :

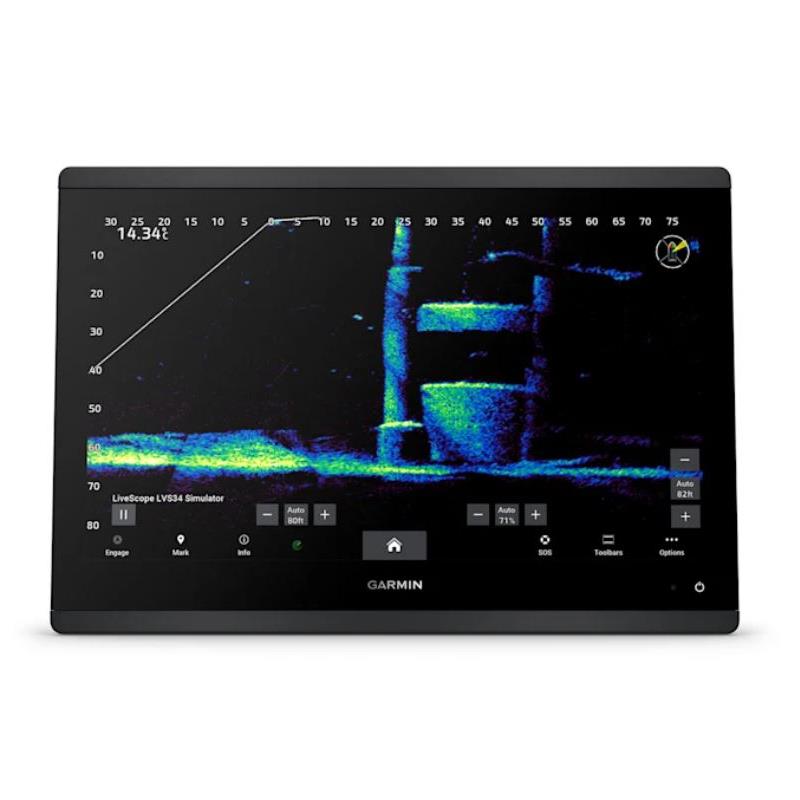

Pair your device with a Panoptix™ or LiveScope™ LVS32/LVS34 and LVS62 real-time sonar that is easy to interpret (transducer required, sold separately) to see all around your boat in real time.
FASTER, CLEARER, SMARTER :
Thanks to its increased processing power and its ultra-thin, bezel-free design, this chartplotter is easy to integrate into a wide range of dash configurations.
ELECTRIC MOTOR INTEGRATION :
Enjoy compatibility and integration with your Force and FORCE KRAKEN electric motors (sold separately) for full control when you fish.

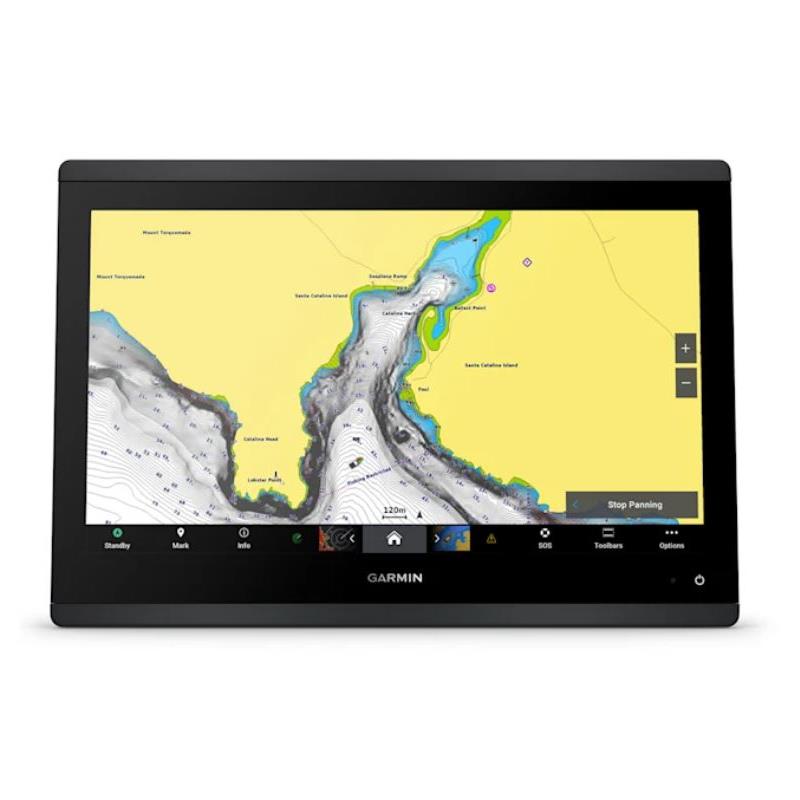

Compatible charts :

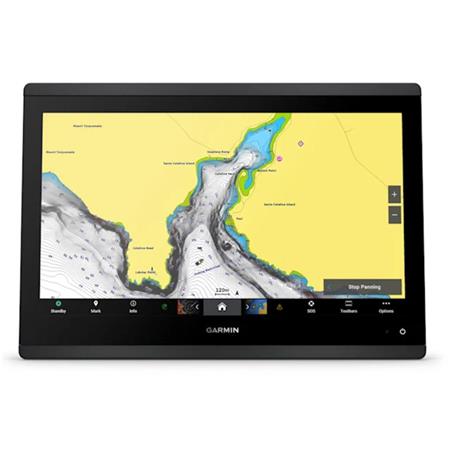

Give your chartplotter a whole new look with optional Garmin Navionics+™ or premium Garmin Navionics Vision+™ mapping, featuring content for coastal and inland waters, access to daily updates, Auto Guidance+1 technology and much more.
ActiveCaptain® App :
Built-in Wi-Fi® connectivity for pairing with the mobile app to access OneChart™ functionality, Smart Notifications, software updates, the Helm app, Garmin Quickdraw™ community data, etc.1.
Technical specifications :

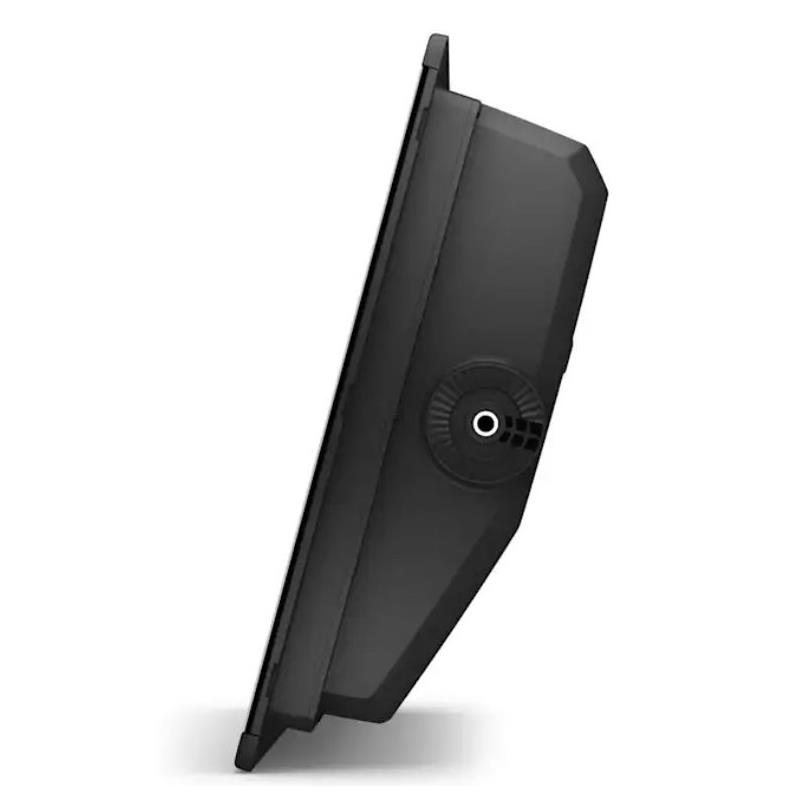

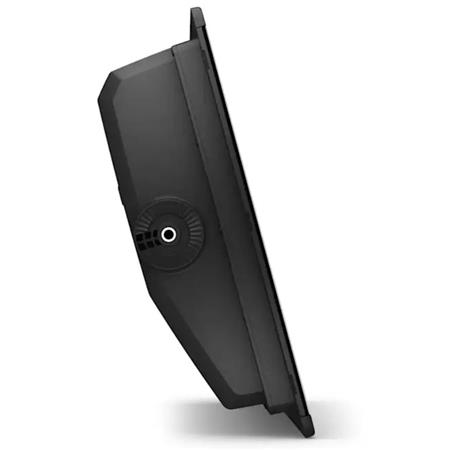

-Physical dimensions : 38.4 X 26.2 X 7.6CM
-Weight : 4.4kg
-Touchscreen : YES
-Display type : FHD/IPS
-Display format (width by height) : 34.5 X 19.5 CM ; 39.7cm diagonal
-Screen resolution : 1920 X 1080 pixels
-Mounting option : On a bracket, flush-mounted or integrated into the console (Garmin does not supply any hardware or accessories for flush or bracket installation. Professional tools and knowledge required.)
-Accepts memory cards : 2 microSD cards (at the back of the device)
-Waypoints : 5000
-Track points : 50 000
-Routes : 100
-Built-in GPS receiver : YES
-Glonass : YES
-Galileo : YES
-GPS antenna : 10HZ
-Compatible with NMEA 2000/0183 : YES
-Supports WAAS : YES
In the box :
• GPSMAP® 1623xsv chartplotter
• Power cable
• NMEA 2000® drop cable
• NMEA 2000 T-connector
• Screen protective cover
• Flush-mount kit with gasket
• Clip-on bezel covers
• Documentation
WARNING, the screen mounting bracket reference 010-12798-02 is not supplied as standard; it is an option.
Optional Accessories :
Mounting bracket reference 010-12798-02
