Double Through-Hull Transducer Garmin Gt51m-Thp Downvu / Sidevu Chirp #Name? (Unknown Range Name: 'Temperature'.)

Name: DOUBLE THROUGH-HULL TRANSDUCER GARMIN GT51M-THP DOWNVU / SIDEVU CHIRP #NAME? (UNKNOWN RANGE NAME: TEMPERATURE .)
Brand: Garmin
SKU: 142237

Read more-Product description

£1495.54

Recommended retail price : £1495.54

20 days for returns

Receive our offers and promo codes by email
Subscribe to the newsletter

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

010-01966-11

£1495.54

Models & specificities Descriptive

Descriptive

Back to menu

Through-hull transducers optimized for significant depths and harsh conditions. They provide optimal imaging of seabeds, submerged structures and fish. Designed to operate in DownVü CHIRP / SideVü CHIRP mode (260/455kHz), they deliver 500 W per element (so 1,500 W in total). The traditional CHIRP mode offers 600W and operates on the frequency band: 80-160kHz.

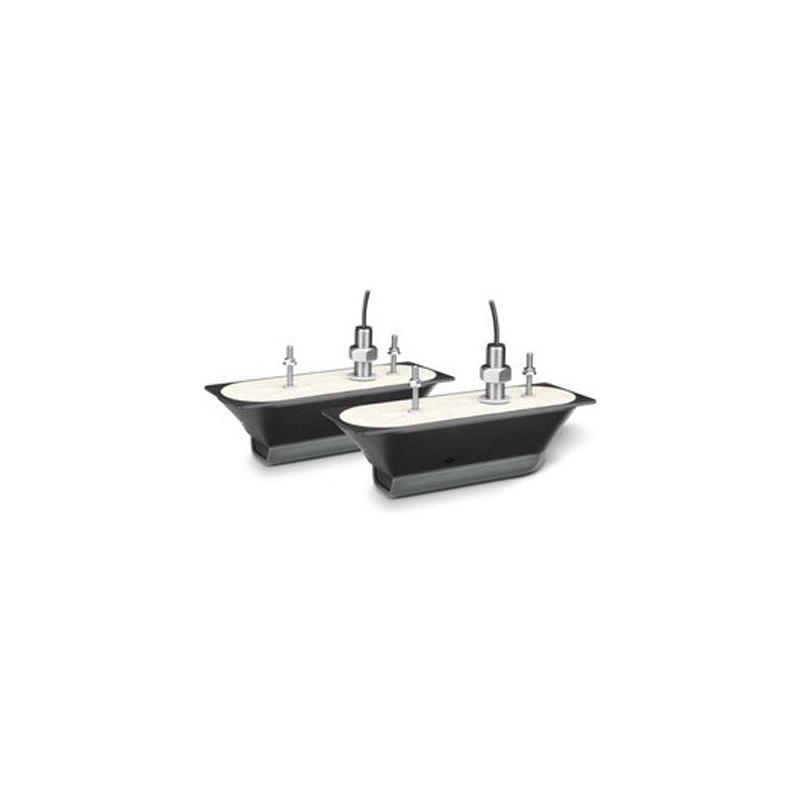

Supplied with 2 stainless through-hull transducers GT51M-THP, mounting shoes, installation kit, documentation. Suitable for any hull type with an inclination between 6° and 25°.

Specifications :
• Weight : 19.11 kg
• Cable length : 1.5 m + "Y" cable 9 m
• Number of pins : 12
• Dimensions :
- Transducer : 228 x 62 x 41 mm
- Threaded rod : Ø24 x 135 mm
- Mounting shoe : 323 x 116 x 64 mm
• Frequencies :
- Traditional : CHIRP 80-160 kHz
- DownVü : CHIRP 245-275 kHz and CHIRP 445-465 kHz
- SideVü : CHIRP 245-275 kHz and CHIRP 445-465 kHz
• Power :
- Traditional : 600 W
- DownVü : 500 W
- SideVü : 500 W
• Max range :
- Traditional : 548m
- DownVü : 304m
- SideVü : 229m
• Beam width (°) LF/HF (-3dB):
- Traditional : 24/13
- DownVü : 2.0x51@455 / 1.4x29@800
- SideVü : 2.0x51@455 / 1.4x29@800
• Temperature sensor : yes

Installation guide
