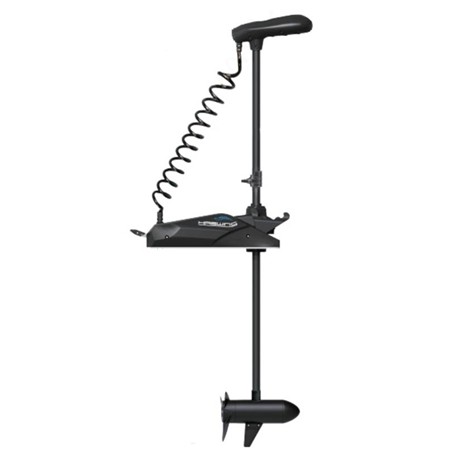

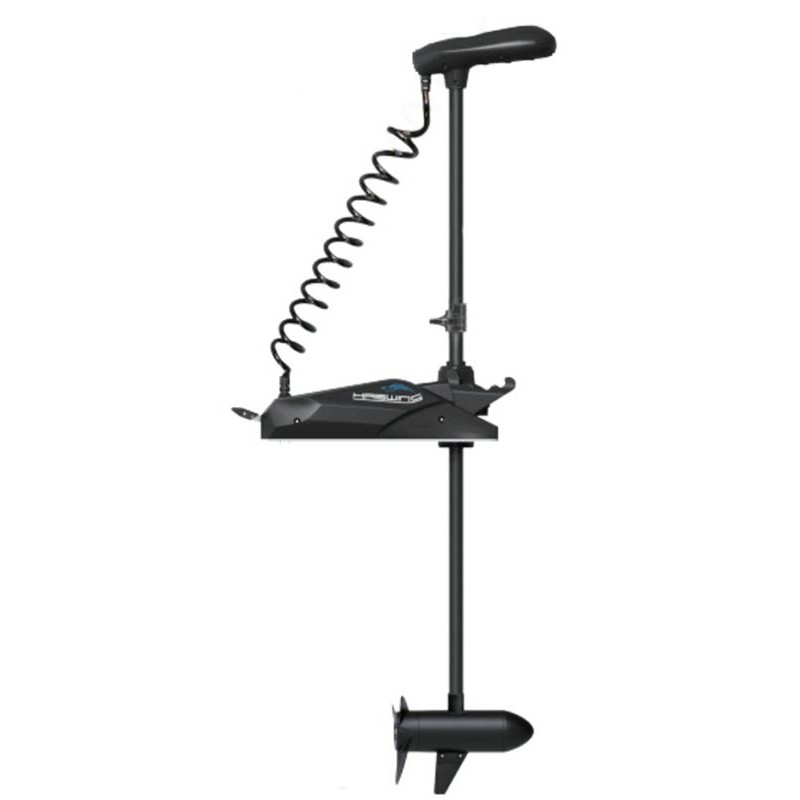

Electric Motor Haswing Cayman-B 80Lbs Gps Version 1.6 Blanc Nouveau Modele

Name: ELECTRIC MOTOR HASWING CAYMAN-B 80LBS GPS VERSION 1.6 BLANC NOUVEAU MODELE
Brand: Haswing
SKU: 167573

Read more-Product description

£1607.34

Recommended retail price : £1648.62

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Weigth (kg)

Voltage (V)

Shaft length (cm)

Power (lbs)

Price inc VAT

18548500
(Unavailable)

183

Models & specificities Descriptive

Descriptive

Back to menu

the haswing cayman-b 80 lbs gps version g1.6 model with a new-generation platform, mounts on the bow of the boat and is equipped not only with a classic remote control but also with a GPS function controllable with your apple or android smartphone.

motor supplied with its micro remote control for propeller, steering, speed and electronic anchoring control.

this motor therefore offers perfect maneuverability wherever you are on your boat. its powerful 12 volts motor allows calm navigation in all waters and, thanks to its tilt system, the motor can be taken out of the water in no time. the indicators on its battery charge gauge let you check your autonomy at a glance.

the remote control of the cayman-b 80 lbs gps version g1.6 offers the anchoring function.

suitable for use in fresh and salt water.

to use the functions of the cayman b 80 lbs gps version g1.6, you must download the helmsman app (free) and sync it with your motor via Wi‑Fi. once done, you will be able to access all the features of your motor.

key points :
• 12 v electric outboard motor, 80 lbs
• max thrust: 80 lbs
• amp. (nominal/max.): 45/55 a
• power (nominal/max.) : 1080 w
• propeller: 2 blades
• shaft: 183 cm
• supplied with its remote control (foot pedal and usb charger not included)
• user, maintenance and warranty manual
• free helmsman app downloadable on apple and android (see user manual)
• recommended x2 battery (not included): type 105 ah x2 slow-discharge

gps functions :
to use the functions of the cayman b 80 lbs gps version g1.6, you must download the helmsman app (free) from the app download stores of apple or android (operating system: from ois 8 and android 4.3 + ) and sync it with your motor via Wi‑Fi. once done, you will be able to access all the features of your motor.

on your smartphone, the visual icons indicate :
a) the Wi‑Fi connection with your motor
b) GPS reception quality (white: not connected - red: weak - yellow: strong - green: excellent)
note: the motor's operation in GPS mode depends on the quality of the signal received at your location (satellite positioning, natural barriers such as mountains or forests …)
c) travel speed (in km/h)
d) engine speed (0 to 10)
e) battery charge level
f) compass function
g) the map in map format or google earth and thus allow control of the functions :
a) start, stop
b) engine speed, acceleration, deceleration (0 to 10)
c) steering control port tribor
d) manual mode activation

gps functions :
• speed regulator in GPS mode only (allows you to adjust your speed toward the point you have set)
• route recording
• navigation - route creation (GPS function only)
• anchoring: allows an automatic return to the bow anchor of your boat to compensate drift based on the GPS signal

note : station keeping depends on currents and winds; for optimized station keeping, position the bow facing the wind and current before activating the anchoring system. use on waterbodies with shifting currents or winds in confined sites makes positioning unpredictable; the motor will indeed be constantly engaged to correct drift.

we remind you that return-to-anchor is not a dynamic positioning system. only dynamic positioning with a (prs) system of the hydroacoustic type or GPS system, based on laser (fanbeam and cyscan) with combined actuators, bow thrusters + bow thruster + rear thrusters with position sensors, anemometers, accelerometers (inertial units) and gyroscopic compass managed by a computer system, can fix a vessel in its position relative to the seabed.

technical specifications :
• max thrust : 80lbs
• voltage : 12v
• weight : 21kg
• max amperage : 45a
• number of battery charge level indicators : 3
• bow mounting
• motor control : supplied with wireless remote control
• motor shaft length : 183cm
• black propeller : 2 blades

power supply recommendations :
this motor can be powered either by two 12v slow-discharge lead-acid batteries connected in series or by a 24v lithium battery.

it is recommended to install a circuit breaker on the motor's red positive cable to protect it from possible polarity reversals or other wiring issues.

mounting option :
• quick release plate for quick mounting and dismounting reference 15415178

user manual
