ENERGY PACK CAYMAN B 55LBS HASWING WITH WIRELESS PEDAL, REMOTE CONTROL, QUICK RELEASE PLATE ET BATTERIE MARINE 12V100AMP

Energy Pack Cayman B 55Lbs Haswing With Wireless Pedal, Remote Control, Quick Release Plate Et Batterie Marine 12V100amp

Name: ENERGY PACK CAYMAN B 55LBS HASWING WITH WIRELESS PEDAL, REMOTE CONTROL, QUICK RELEASE PLATE ET BATTERIE MARINE 12V100AMP
Brand: Haswing
SKU: 348677

Read more-Product description

£664.40

Recommended retail price : £664.40

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Voltage (V)

Shaft length (cm)

Power (lbs)

Price inc VAT

18548120
(Unavailable)

137

18548120cm
(Unavailable)

120

Models & specificities Descriptive

Descriptive

Back to menu

This Energy HASWING pack includes a CAYMAN B55 12V motor with wireless remote control, wireless steering pedal, QUICK RELEASE plate and a HASWING 12V 100amp marine deep-cycle battery with dual terminals.

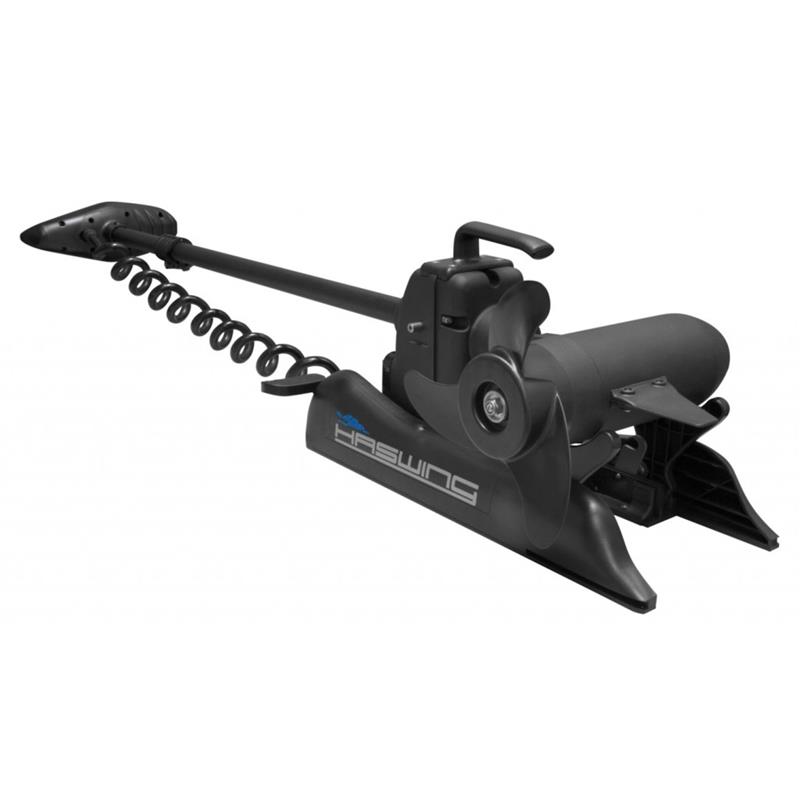

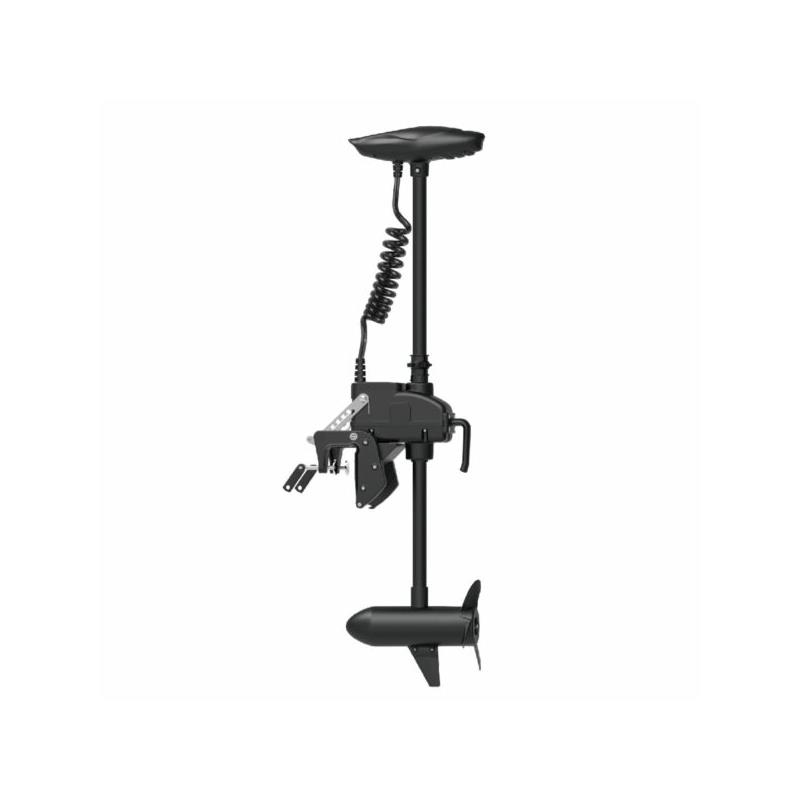

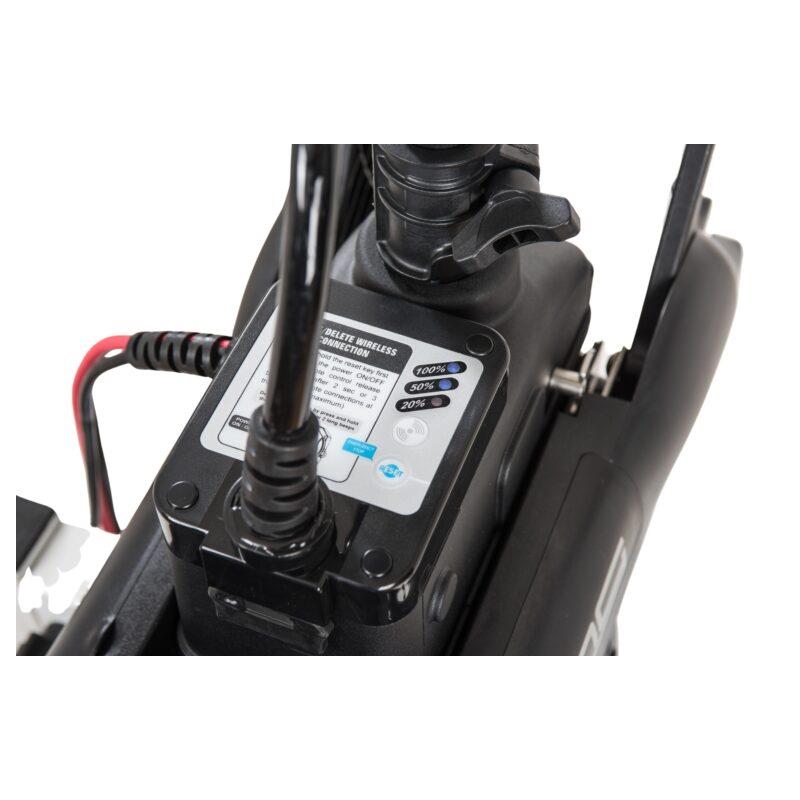

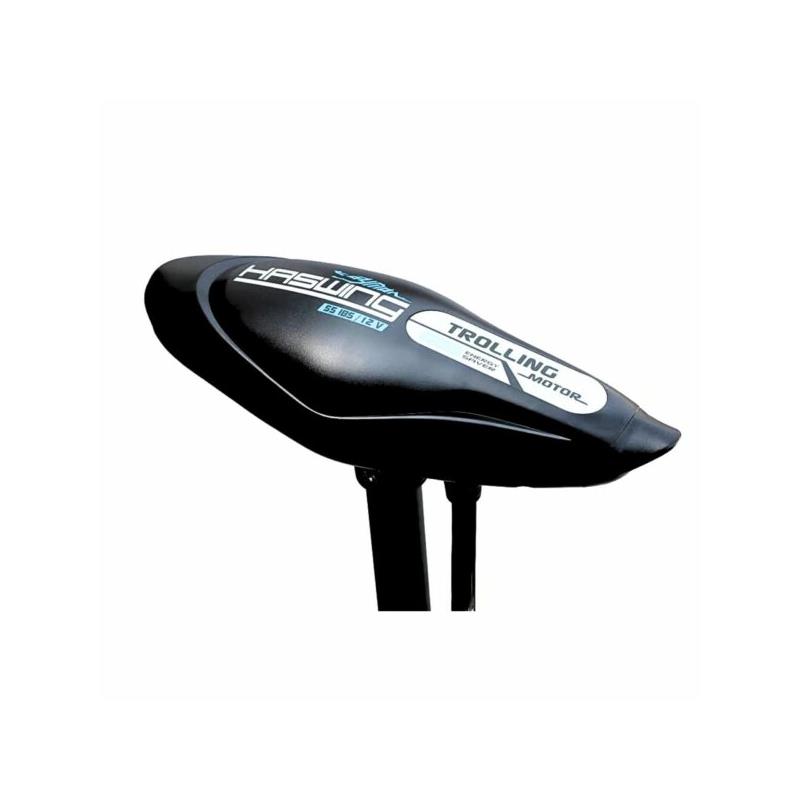

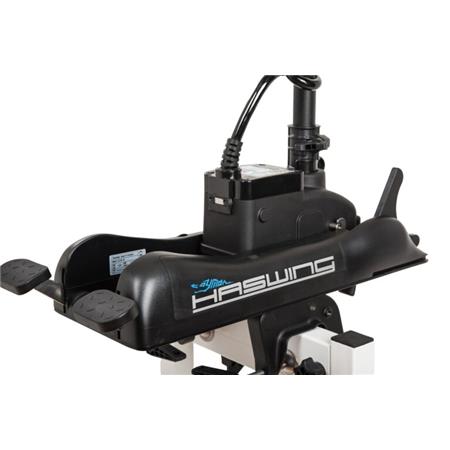

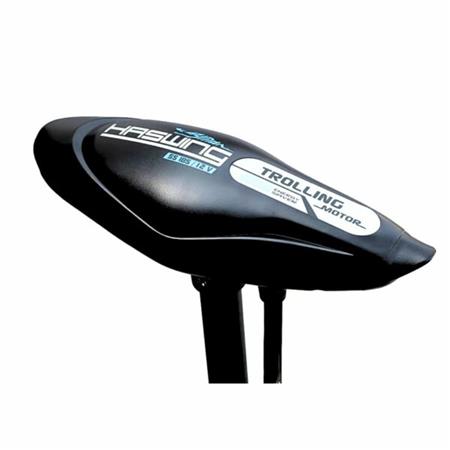

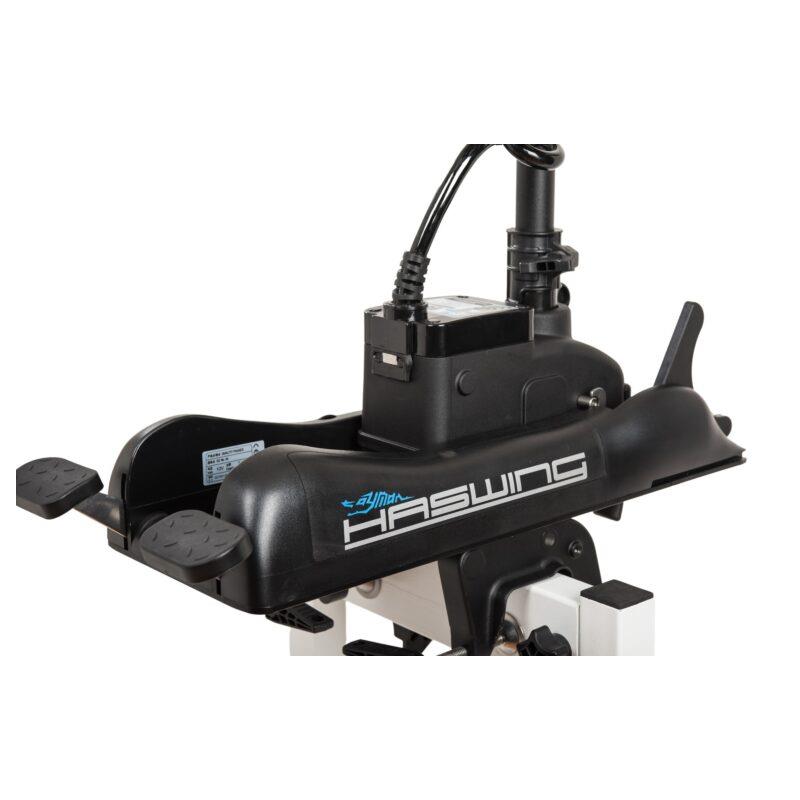

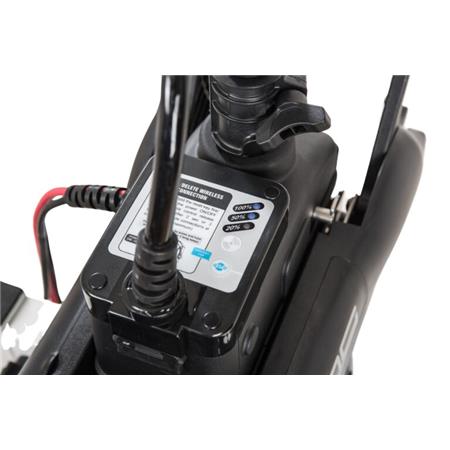

The Haswing Cayman-B 55 Lbs L137 model (long shaft) and/or 120cm shaft is designed for bow mounting and comes with remote control, with the option to add a foot control pedal. This motor offers exceptional maneuverability, no matter where you are on board. Running on 12 volts, it provides sufficient power to cruise confidently on all types of water. Its tilt system allows you to easily raise the motor, while its battery charge indicator with LED lights gives you quick monitoring of your remaining power.
(Stern mounting possible with Haswing mounting clamps - optional)

Suitable for freshwater and saltwater use.

Motor specifications 137cm:
• Cayman B 55 Lbs motor with 137cm shaft :
• 12 V electric outboard motor, 55 Lbs
• Max thrust: 55 Lbs
• Amp. (Nominal/max.): 45/55 A
• Power (nominal/max.): 540/660 W
• Propeller: 3 blades
• Shaft: 137 cm

Motor specifications 120cm:
• Cayman B 55 Lbs motor with 120cm shaft :
• 12 V electric outboard motor, 55 Lbs
• Max thrust: 55 Lbs
• Amp. (Nominal/max.): 45/55 A
• Power (nominal/max.): 540/660 W
• Propeller: 3 blades
• Shaft: 120 cm

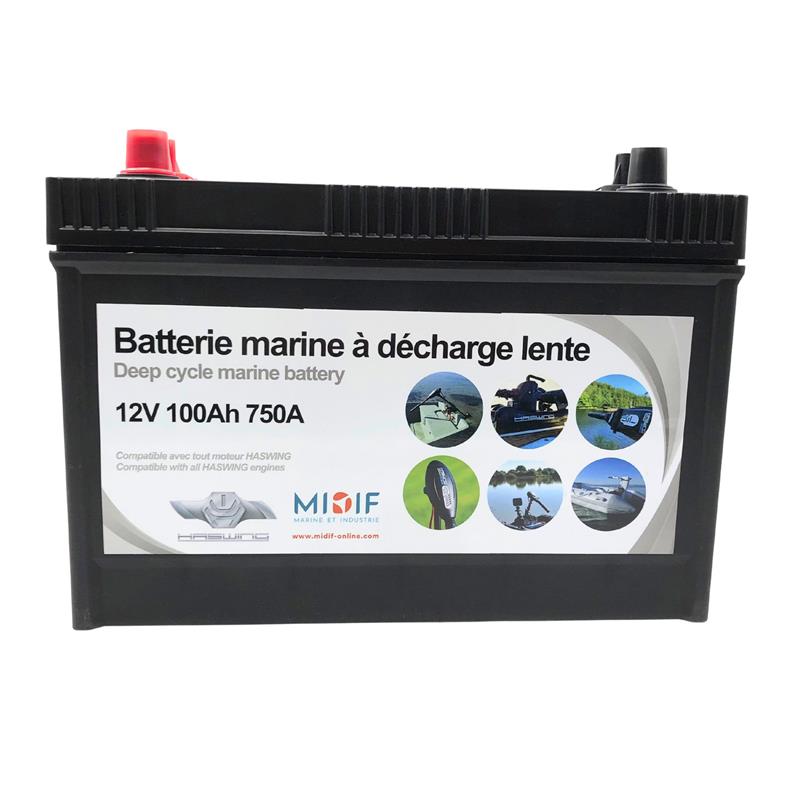

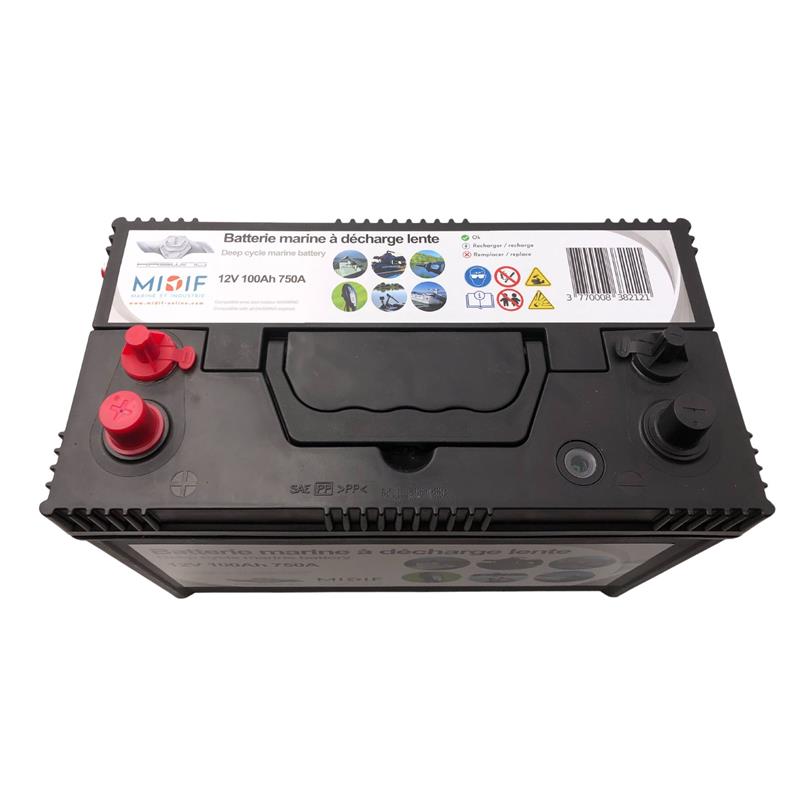

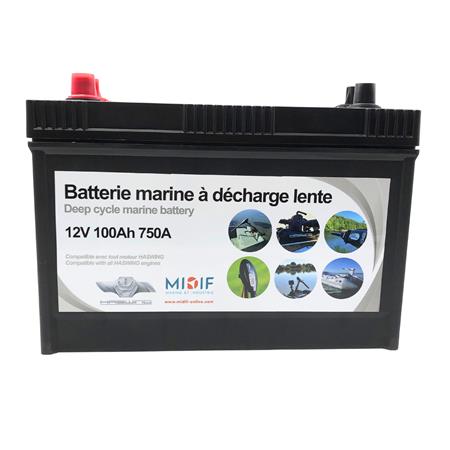

Battery specifications :
• Voltage 12V
• Capacity 100amp
• Dual connection terminals
• Cold cranking performance (EN1): 750A

Battery dimensions :
• Length : 330mm
• Width : 173mm
• Height : 240mm
• Weight : 23.5kg

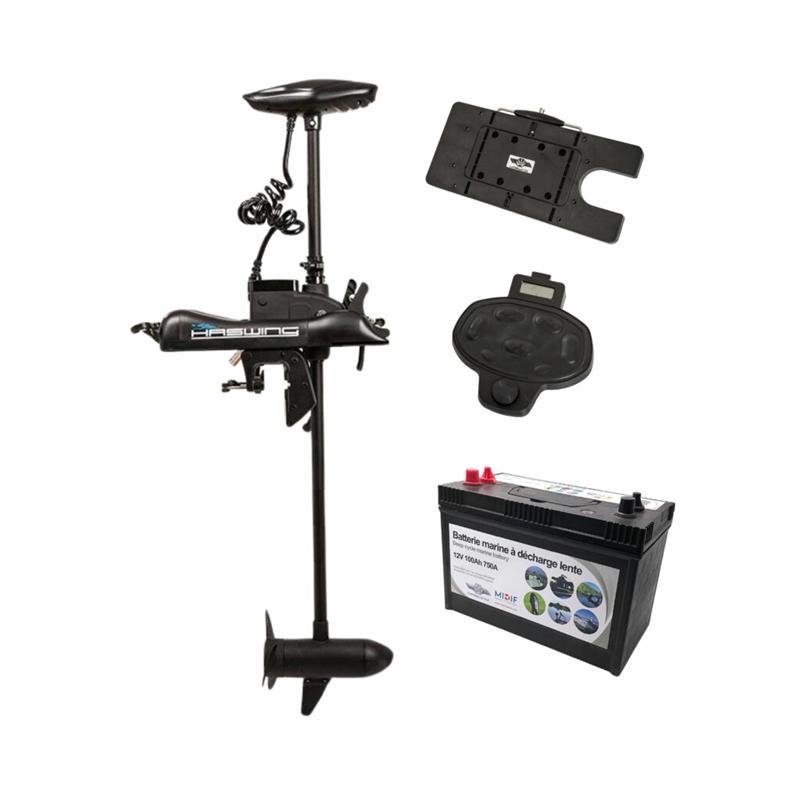

The pack includes :
• 1 HASWING CAYMAN B55 12V motor with 137cm shaft

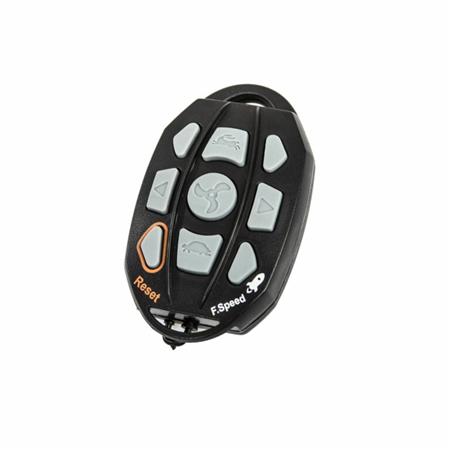

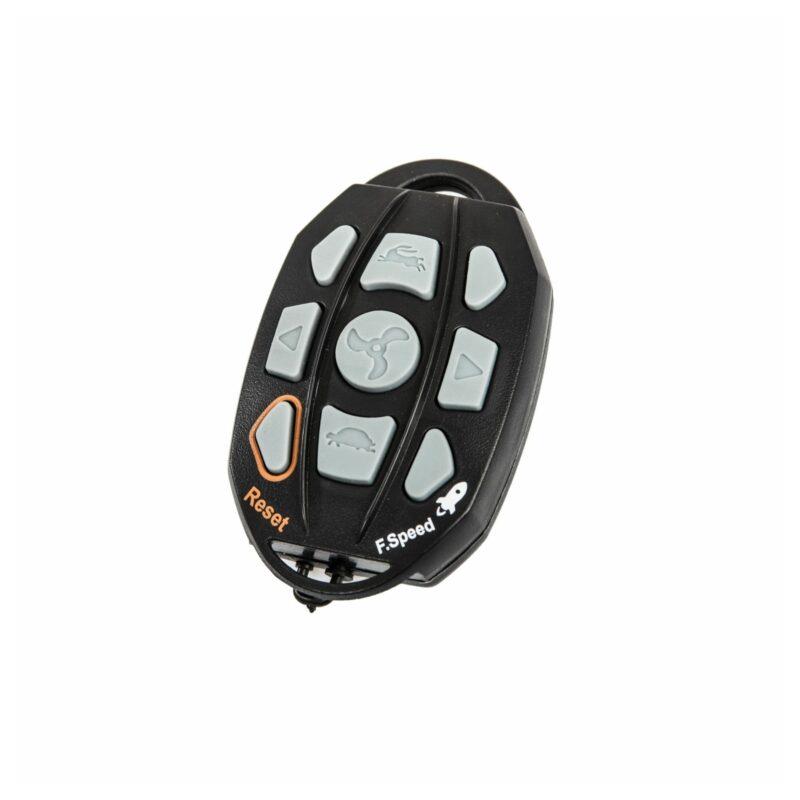

• 1 remote control

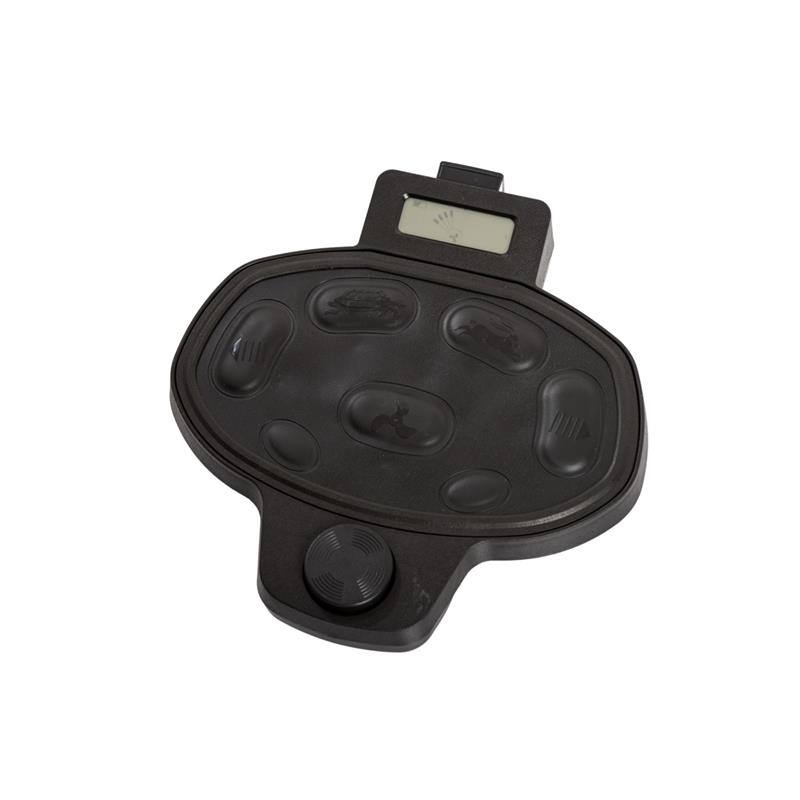

• 1 pedal (foot control)

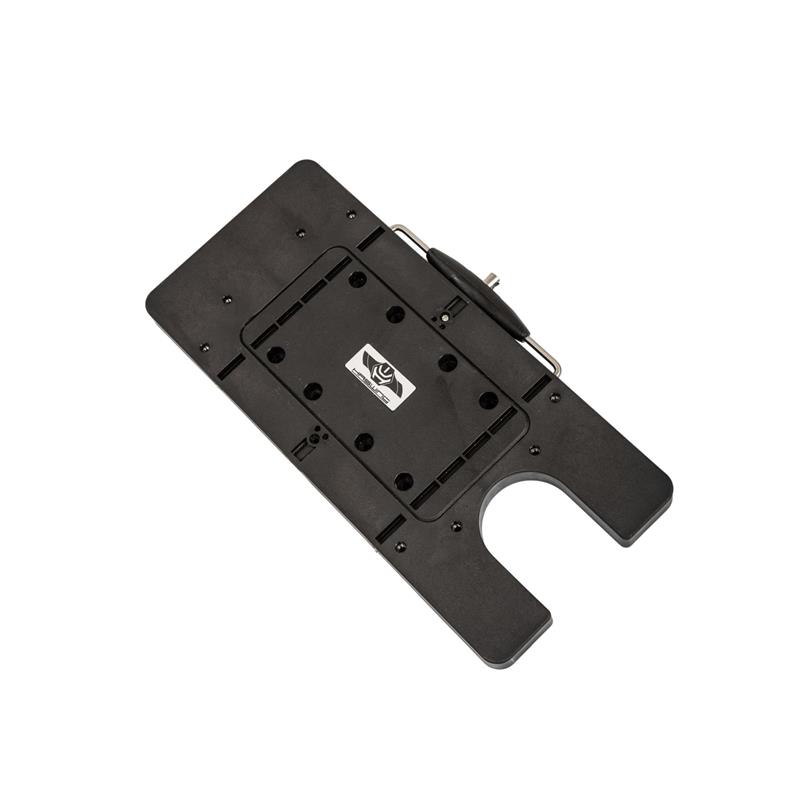

• 1 Quick Release plate
• 1 Haswing marine deep-cycle battery 12V – 100AH 750A – Double terminals

Lead-acid battery maintenance advice :
To keep your lead-acid battery in service for as long as possible, fully recharge it with a suitable automatic charger after each use. During winter storage without use, it is recommended to charge it at least 2 days per month and store it in a dry, ventilated place protected from freezing.

Advice for connecting the motor to a lead-acid battery :
To connect the motor cable to your lead-acid battery, use quick-connect terminals (not supplied) and grease your battery terminals to prevent corrosion.

Motor protection advice :
It is strongly recommended to install an optional 60amp thermal circuit breaker on your power supply and on the motor's positive cable.
