| Function | Value |
|---|
| Screen size | 9 inches |
| Touchscreen | no |
| Classic 2D | yes |
| Down View | yes |
| Side View | yes |
| CHIRP | yes |
| GPS | yes |
| Bathymetry | yes |
| Card reader | yes |
| Live | no |
| Network | yes |
*subtleties and options may be indicated in the full description, do not hesitate to explore further or ask for advice.

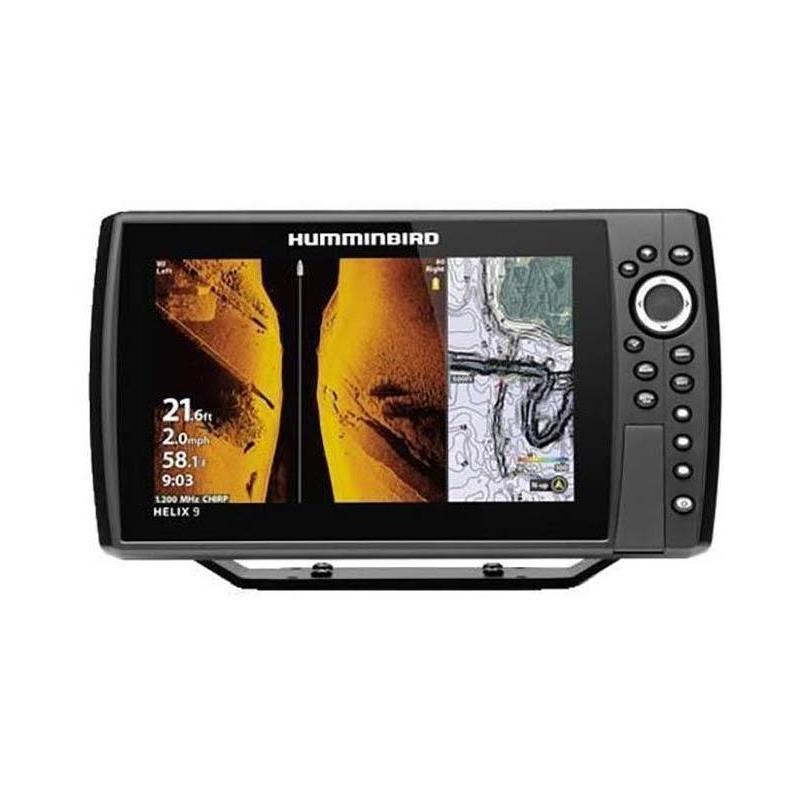

The HELIX 9 CHIRP GPS G4N features a 9-inch screen, a CHIRP Dual Spectrum fishfinder on 2D sonars, as well as MEGA Down Imaging+ and MEGA Side Imaging+. Like all HELIX G4N models, the HELIX 9 includes standard features such as AutoChart Live, Wi-Fi and NMEA 2000, plus Bluetooth and Ethernet networks for compatibility with the One-Boat Network family of products from Humminbird, Minn Kota and Cannon.
This provides the products with a real increase in image definition. All units will be equipped with the new Humminbird Chirp transducer which enables DUAL SPECTRUM Chirp technology. Previously available only on high-end models, MEGA Imaging+ technology equips this new product range. A new advance that offers anglers significantly improved Mega Side Imaging and Mega Down Imaging, delivering even more detail and information. You have never seen your fishing areas this way before. Mega Imaging+ offers 3 times the precision of the best current Imaging technologies. It is undeniably the clearest, sharpest and most accurate you have ever seen thanks to the use of frequencies in the Megahertz range; the fish had better watch out.
Dual Spectrum CHIRP : Dual Spectrum offers two search methods: wide mode for maximum coverage and narrow mode for maximum detail.
MEGA Down Imaging + : Achieve unprecedented underwater clarity with 20% more detail compared to MEGA Down Imaging sonar.
MEGA Side Imaging + : Discover the underwater world like never before with crystal-clear vision and 20% more detail compared to MEGA Side Imaging sonar.
AutoChart Live : Create real-time charts of your fishing spots. Plot depth contours, bottom hardness and vegetation while you drive your boat, with eight hours of built-in recording time.
Ethernet networking : High-speed Ethernet lets you build a powerful, professional-grade fishing system. Easily connect multiple fishfinders and/or electric motors and move up to complementary technologies such as Minn Kota's i-Pilot, 360 Imaging and CHIRP radar.
Bluetooth : Enable features such as wireless software updates from the Humminbird FishSmart app and keep your phone in your pocket by showing notifications on your Humminbird unit. You can also take control of your most used functions with the optional Bluetooth remote (RC2).
Built-in NMEA 2000 network : The HELIX G4N series includes NMEA 2000 support to display engine and boat information and navigation weather data.
Technical data
• Multifunction combo chartplotter / DS fishfinder.
• Dual Spectrum / CHIRP Technology
• MEGA Down Imaging + Technology.
• MEGA Side Imaging + Technology.
• Dual Spectrum transducer, narrow beam 180-240 kHz & wide beam 140-200 kHz
• 9" TFT LCD 65 000 color Full Sunlight.
• Very high definition screen 1024x600 pixels.
• Peak power 8000 watts (1000 W RMS).
• Waterproof rating IPx7.
• Internal WAAS GPS antenna.
• Bluetooth.
• Dual front Micro SD card readers.
• Shortcut keys.
• Ability to take screenshots.
• Compatible Navionics+ / Platinum+ and AutoChart Live.
• Ethernet network compatible.
• Compatible NMEA0183/2000.
• Compatible 360 Imaging.
Specifications :
Transducer features: DUAL SPECTRUM / narrow beam 180-240 kHz & wide beam 140-200 kHz
• MEGA DI+ (1100-1200 kHz)
• MEGA SI+ (1050-1175 kHz)
• CHIRP module frequencies: MEGA Imaging + (405-535KHz / 780-860KHz / 1.000-1.300KHz)
• DUAL SPECTRUM (140-240MHz)
• Number of beams: 4
• 50KHz option: Yes
• Quad beam option: No
• Power (Peak): 8000 W
• RMS Power: 1000 W
• Standard transducer: Transom mount (SH-A107T)
• Plastic thru-hull transducer: Optional (SH-B107T)
• Target separation: 6.5 cm
• Water temperature: Yes
• Screen diagonal: 8" panoramic "
• Flush mount dimensions: 305x168x34 mm
• Bracket mount dimensions: 305x178x105 mm
• Waterproofing: IPx7
• GPS interface: Yes
• Flush kit: Optional (SW-TH910)
• Menu in French: Yes
• Number of colors: 65 000
• Screen resolution: 8" = 1024 x 600 pixels
• NMEA output: Option: AS-QD-NMEA-2000
0183
2000
• Quick release system: No
• Power type: 10-20 Vdc
• Screen type: Color TFT
• Built-in mapping: Coastline contour
• Card reader: Yes
• Number of navigation screens: 6
• Number of Waypoints: 2750
• Track points: 20000
• Number of routes: 50
• Number of tracks: 50
• Card type: Micro SD
• Navionics +
• Navionics PLATINUM
• Navionics PLATINUM +
• SYLMAPS
• 3D map view: Yes
Fishfinder functions :
• Low battery alarm
• Temperature alarm
• Fish alarm
• Depth alarm
• Freeze frame
• Bottom lock
• Screenshot capture
• Large numbers
• Customizable data
• Split screen with 2 frequencies
• Customizable screen
• RTS window
• Noise filters
• Fish ID
• Fish ID+
• Fishloc
• Temperature graph
• Navigation data history
• Structure ID and Reverse
• Navionics card reader
• Grey line and white line
• X-Press menu
• Built-in simulator
• Sonar Echo Enhancement
• Selection of displayed colors
• TruArch technology
• Water temperature
• Direct access key
• Scroll speed
• Bottom speed
• Bottom zoom
GPS function :
• Arrival alarm
• Drift alarm
• Off-course alarm
• Card reader
• Route projection line
• Map north orientation
• Map to destination orientation
• Route plotter
• GPS speed
In the box :
• Display unit
• Screen mounting bracket
• Transom transducer
• Transducer bracket
• 12Vdc power cable
• Soft rubber screen protective cover
• User manual in French
H9G4N-CMSI+TA
