| Function | Value |
|---|
| Screen size | 6 inches |
| Touchscreen | Yes |
| 2D classic | Yes |
| Down view | Yes |
| Side view | Yes |
| CHIRP | Yes |
| GPS | Yes |
| Bathymetry | Yes |
| Chart reader | Yes |
| Live | Yes with optional transducer |
| Network | Yes |
*Any subtleties and options may be detailed in the full description; feel free to take a closer look or ask for advice.

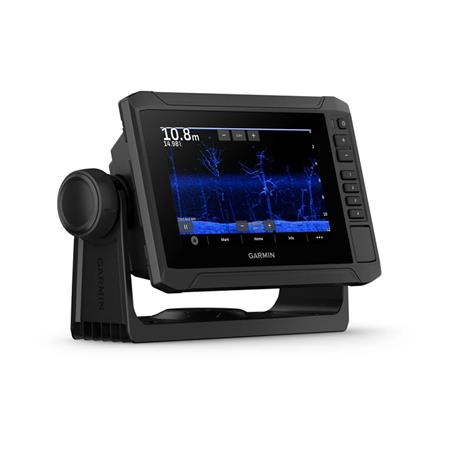

Warning!! The ECHOMAP UHD2 range revolutionises everything, bringing together all the latest technologies and different modes on a single touchscreen with an impressive 800x480 resolution, an Ethernet network port, Wi-Fi mode, the new vivid colour palettes, a precise and powerful GPS with chart reader, CHIRP frequencies, an NMEA 2000 port and a quick-release screen bracket.
For model reference 010-02679-01, it comes complete with its GT54 transom-mount transducer for 2D, ClearVü and SideVü sonar modes.

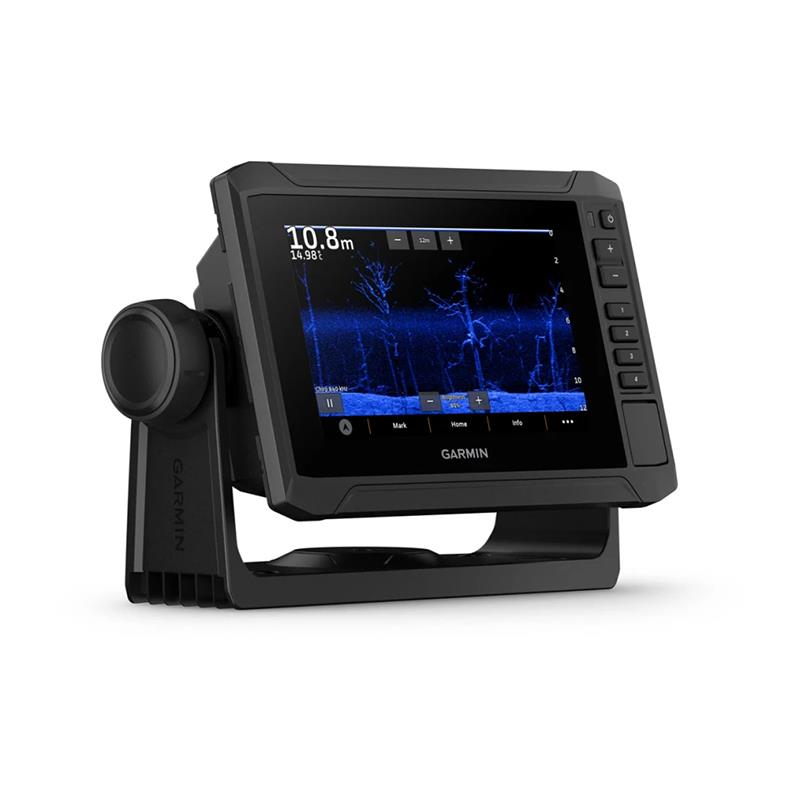

With its high-resolution 800x480 touchscreen and/or using the buttons, you can adjust your various settings with your fingertips in an instant.

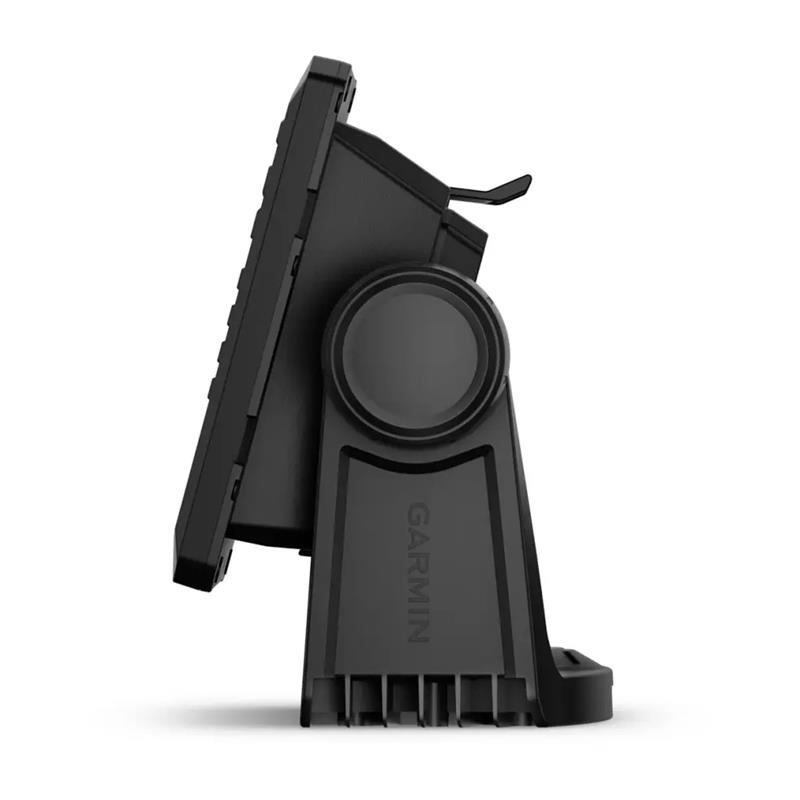

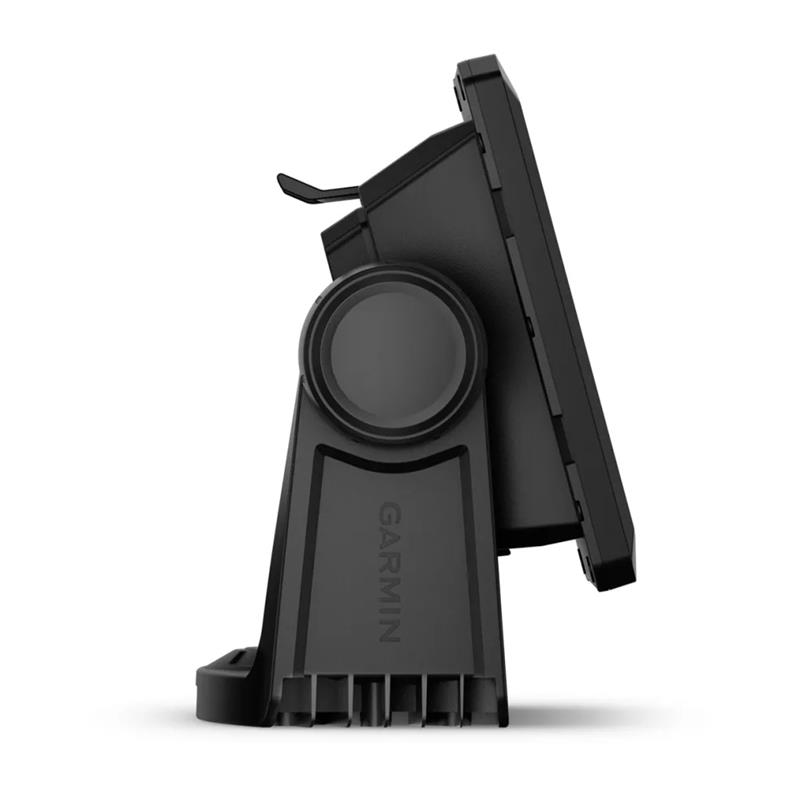

The quick-release screen bracket tilts and swivels so you can position your screen exactly as you wish.
A network port allows you to connect Panoptix transducers and/or LiveScope LVS32 and/or LVS34 transducers for real-time images.
Wi-Fi mode allows you to share sonar information (2D sonar, CV, SV and waypoints) with another compatible UHD2 unit. You can also wirelessly connect your UHD2 unit to your Garmin Force trolling motor.
The vivid colour palettes are a real advantage to help you identify echoes and bottom structure more easily.

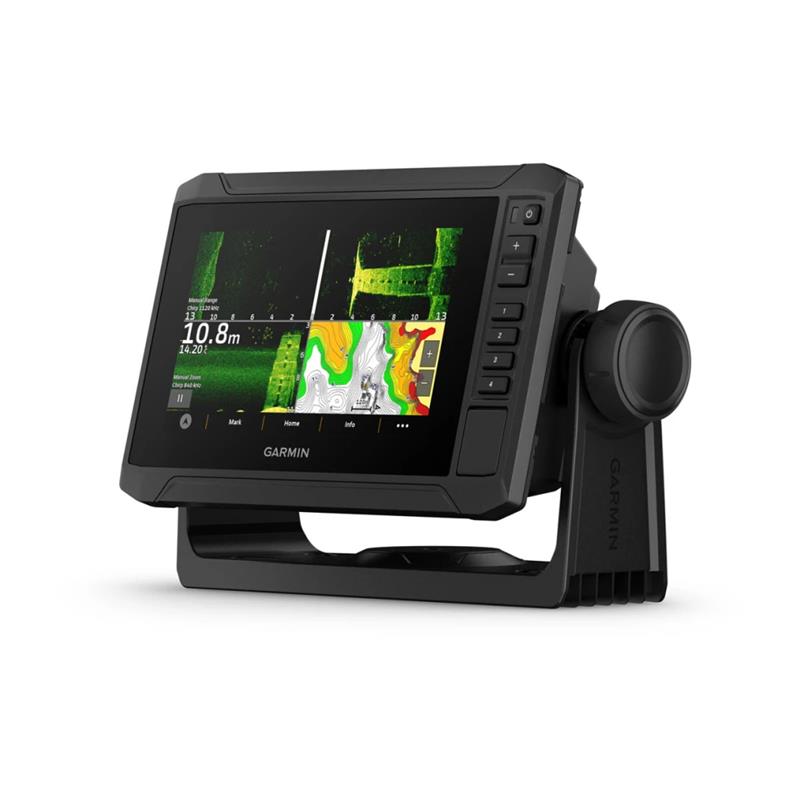

The Quickdraw Contours feature allows you to create your own bathymetric map, and the ActiveCaptain mobile app manages everything, including updates.
GPS chartplotter function with a simple microSD card reader allows you to save your GPS points and use detailed Garmin Navionics+ and Garmin Navionics Vision+ charts as optional extras.
Key points to remember
• easy-to-use touchscreen with button-driven chartplotter and bright, anti-glare display
• high-resolution screen for improved detail, clarity and viewing angle

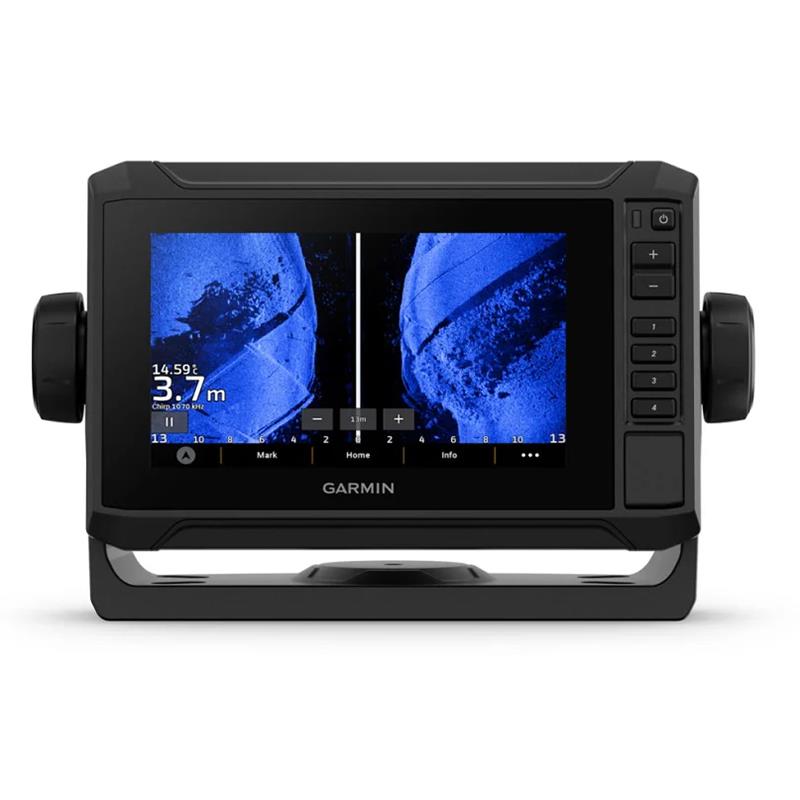

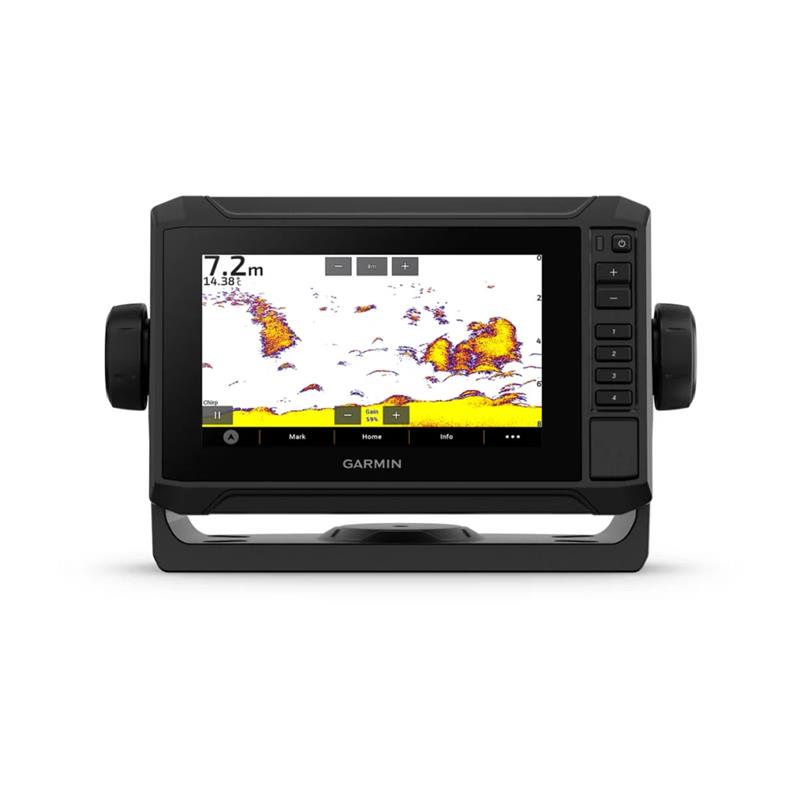

• see what is happening under your boat with traditional Garmin sonars and ClearVü™ and SideVü™ scanning sonars featuring vivid colour palettes
• built-in Wi-Fi® connectivity allows you to share sonar, waypoints and routes wirelessly with another ECHOMAP™ UHD2 chartplotter
• includes multi-band GPS, which uses multiple frequencies for better position accuracy, especially where signals are reflected or weak

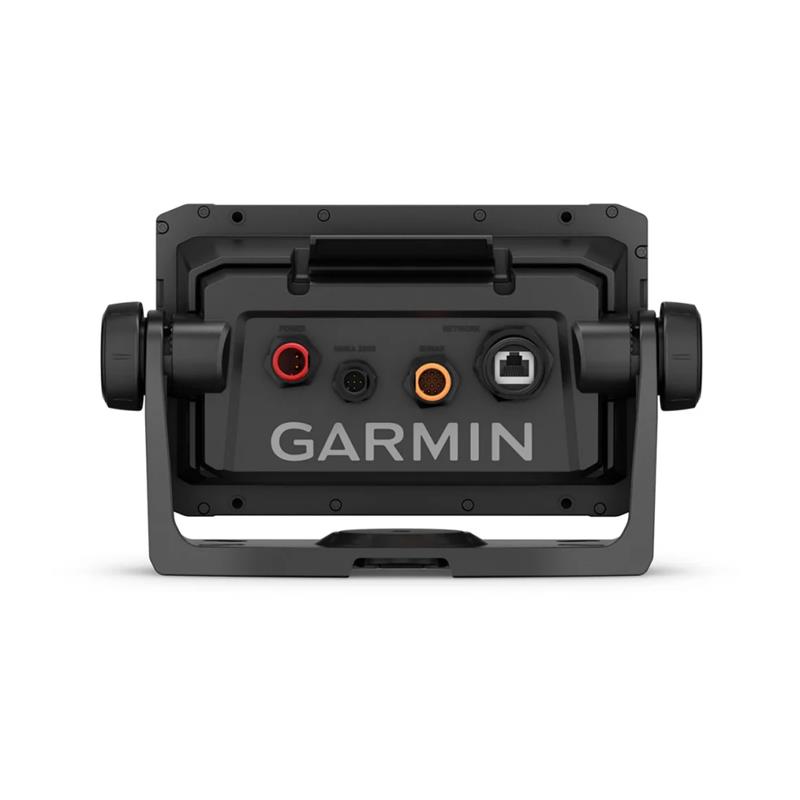

• supports wired NMEA 2000® network connectivity
• pair it with the free, full-featured ActiveCaptain® app on your compatible smartphone to access OneChart™, software updates and more

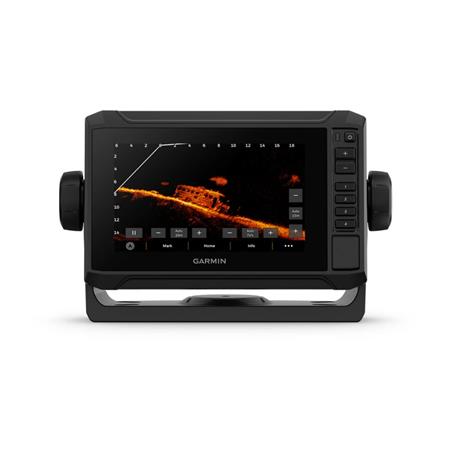

• compatible with LiveScope™ real-time scanning sonar
Technical specifications
• physical dimensions (W x H x D) 20.6 x 13.1 x 6.7 cm
• screen size (W x H, diagonal) 13.8 x 7.8 cm, 15.7 cm diagonal
• resolution 800 x 480 pixels
• water resistance rating IPX7
• internal receiver Yes
• internal receiver Hz 10 Hz
• BlueChart® g3 and BlueChart® g3 Vision Yes
• Garmin Navionics+™ Yes
• Auto Guidance+ technology Yes, with supported cartography
• card slot 1 microSD card; maximum size 32 GB
• waypoints 5000
• track points 50,000
• tracks 50 recorded tracks
• sailing features Yes
• sonar support Yes
• traditional Yes
• ClearVü™ and SideVü™ sonars Yes
• traditional sonar frequencies: single-channel CHIRP, 50/77/83/200 kHz, L, M, H Garmin CHIRP; ClearVü and SideVü: 260/455/800/1000/1200 kHz
• number of pins in the transducer ports 12-pin
• Wi-Fi® connectivity (local) Yes
In the box with GT54 transducer for reference 010-02679-01
• ECHOMAP UHD2 (unit varies by selection)
• GT54-TM transducer
• power cable
• tilting/swivelling mount with quick-release cradle
• protective cover
• hardware
• documentation
In the box without transducer for reference 010-02679-00
• ECHOMAP UHD2 (unit varies by selection)
• power cable
• tilting/swivelling mount with quick-release cradle
• protective cover
• hardware
• documentation
Optional accessories
• LiveScope LVS32 transducer reference 010-01864-00
• LiveScope LVS34 transducer reference 010-02706-00
