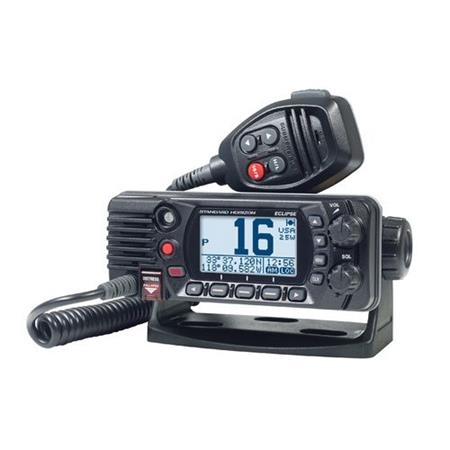

FIXED VHF RADIO GX1400 ULTRA COMPACT STANDARD HORIZON 25W CLASS D IPX8 BLACK WITH INTERNAL GPS ANTENNA

Fixed Vhf Radio Gx1400 Ultra Compact Standard Horizon 25W Class D Ipx8 Black With Internal Gps Antenna

Name: FIXED VHF RADIO GX1400 ULTRA COMPACT STANDARD HORIZON 25W CLASS D IPX8 BLACK WITH INTERNAL GPS ANTENNA
Brand: Standard Horizon
SKU: 120025

Read more-Product description

£231.34

Recommended retail price : £239.94

20 days for returns

Receive our offers and promo codes by email
Subscribe to the newsletter

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

STH-GX1400GPSE

£231.34

Models & specificities Descriptive

Descriptive

Back to menu

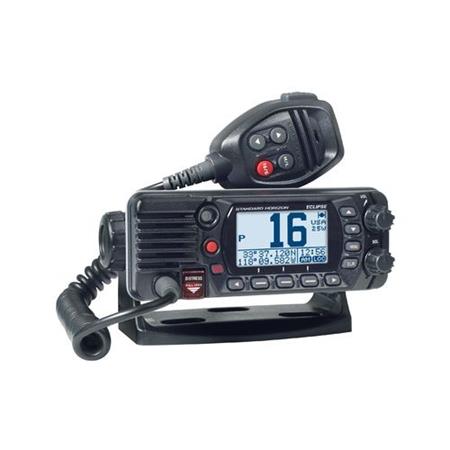

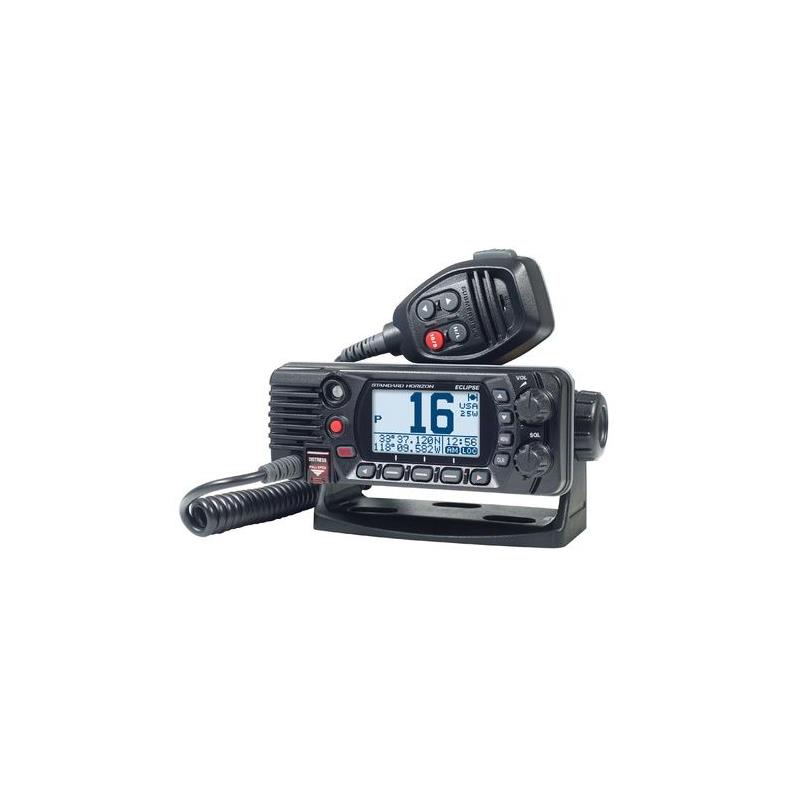

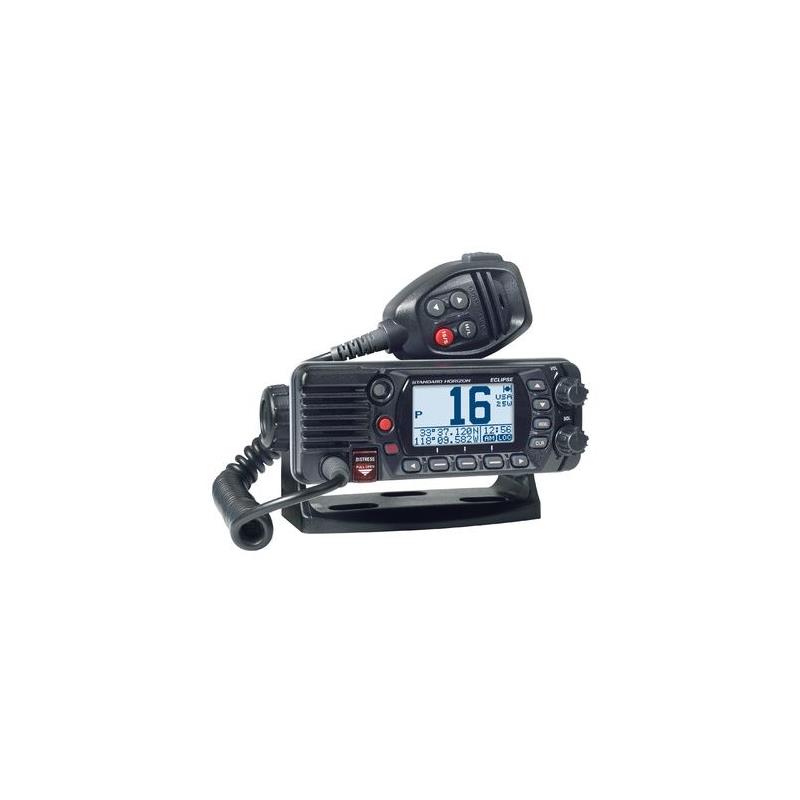

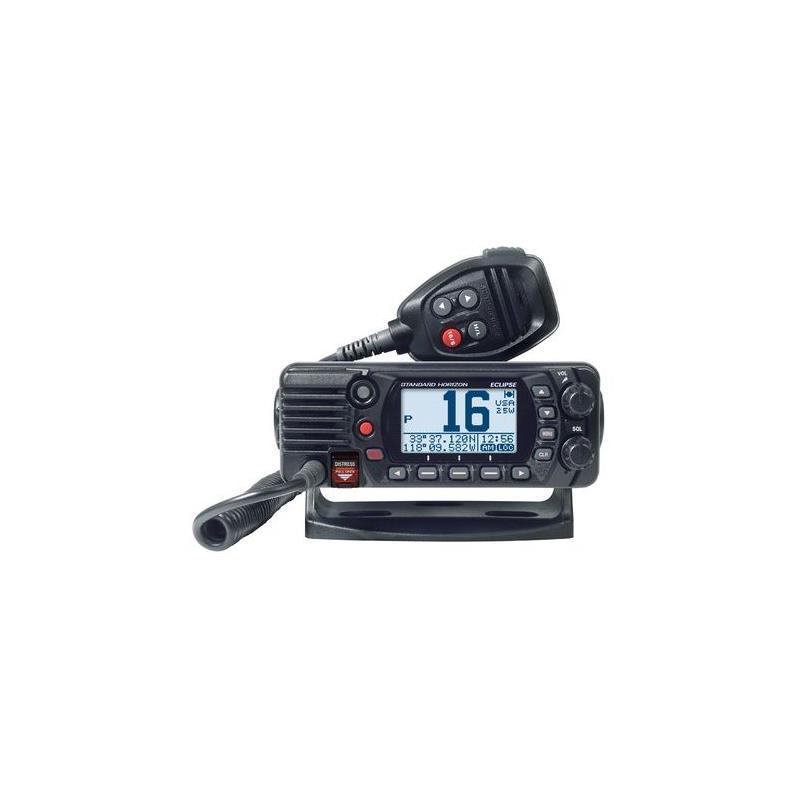

Marine VHF radio GX1400G, 25W compact and complete!

Marine VHF radio system with class D DSC controller. The intuitive icon menu on the large 31 x 55 mm display makes this IPX8 VHF easy to use.

The GX1400E is designed for operation in GMDSS, which includes DSC distress calls, all-calls, as well as frequency scanning to monitor pre-programmed channels or priority channels (dual watch, scheduled watch, priority scan).

The GX1400G receives the position required for DSC functions via an NMEA 0183 interface or the built-in GPS receiver. The user can assign function shortcuts to the keys.

The system can be set for inland navigation by switching it to ATIS. The last 10 used channels can be recalled using the 'preset keys' function. If needed, the 'Polling' function allows exchanging position data (GPS coordinates) with up to 4 vessels within VHF range.

BUILT-IN GPS RECEIVER AND DSC CLASS D

The fixed VHF includes a 66-channel WAAS GPS receiver integrated into the front panel of the radio. A location that allows you to recess your vhf into the dashboard while retaining GPS reception.

This feature allows you to benefit from GPS functions while complying with the new regulations in force since November 2018. View your navigation information (LAT/LON, SOG and COG) on the VHF display.

Built-in DSC Class D: regardless of the channel used, this device is equipped with two receivers, one of which is dedicated to channel 70 so as not to miss any DSC distress call (Digital Selective Calling).

Features :

-Integrated 66-channel WAAS GPS receiver
-Ultra-compact fixed-mount Class D VHF radio
-Compliant with ITU-R M493-13 Class D DSC (Digital Selective Calling)

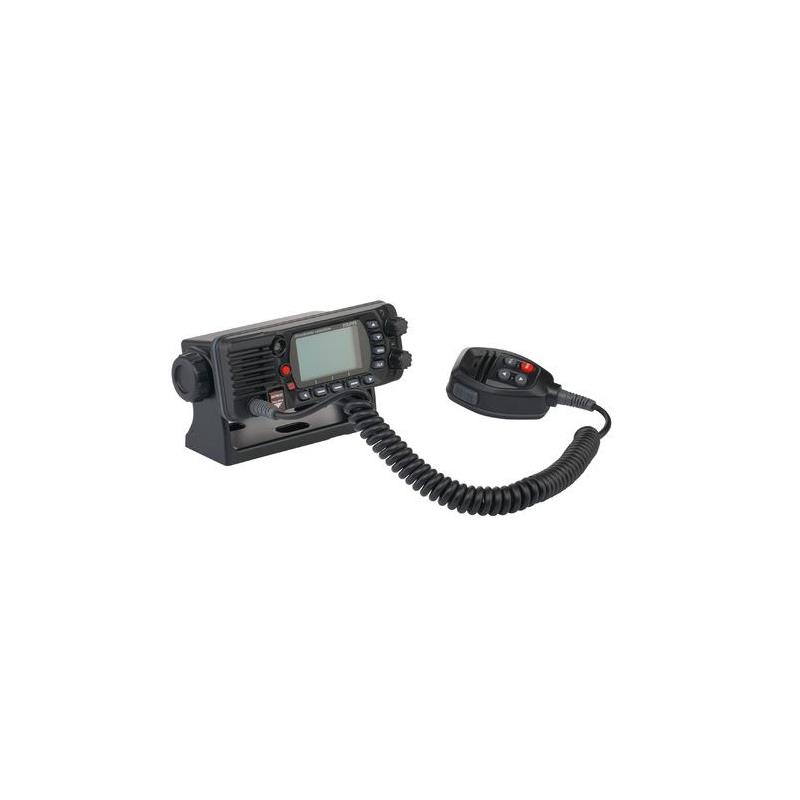

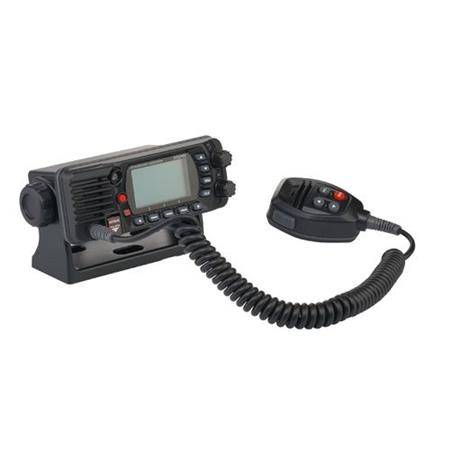

-Radio controls on the microphone
-Easy-to-use E2O icon/menu system
-Display size 31 mm x 55 mm
-Built-in separate receiver for CH70 (DSC call reception)
-DSC test call and Auto DSC channel change selection, GPS position and time displayed on the screen
-NMEA0183 input and output connections to a compatible chartplotter
-Programmable keys
-Automatically polls the GPS position of up to 4 vessels via DSC technology
-IPX8 waterproof rating submersible (1,5 M or 4,92 feet for 30 minutes)
-All American, international and Canadian marine channels
-Preset key to recall up to 10 favorite channels, NOAA weather channel selection with weather alert
-Programmable scan, priority scan and dual watch
-Power: 12 V DC
-Power consumption: 25 W (Hi), 1 W (Lo)
-Mounting dimensions: 131mm x 51 mm
-Front panel dimensions: 156mm x 61 mm

In the box :
-Fixed VHF GX1400GPSE 25W
-Power cable
-Mounting bracket
-Manual on CDDimensions (mm) : 156 x 61 x 100Weight : 0,8 KgGross weight : 1,40 Kg
