Transducer Pack Garmin Livescope Lvs34 + Perche De Sonde Live Basic Pike’N Bass

Name: TRANSDUCER PACK GARMIN LIVESCOPE LVS34 + PERCHE DE SONDE LIVE BASIC PIKE’N BASS
Brand: Garmin
SKU: 358393

Read more-Product description

~~£1767.04~~

Recommended retail price : £1837.44

Shipping within 24h

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Price inc VAT

ENSEMBLE-358393

~~£1767.04~~

Shipped within

24h

Shipped within

24h

~~£1767.04~~

Models & specificities Descriptive

Descriptive

Back to menu

An excellence pack with the brand new sonde LIVESCOPE LVS34 Plus and the LIVE BASIC PIKE ‘N BASS sonar pole in the short 1 m version reference 410191 !!

Excellence goes even further with the new Livescope LVS34 transducer.

The LVS34 works with the GLS10 black box. To switch from the LVS32 to the Livescope Plus, you just need to change the transducer.

Nothing will escape you anymore thanks to the forward, down and perspective modes and the appropriate mounts.

Different views and installation

The latest LiveScope technology, the LiveScope Plus system, offers better resolution, reduces noise and displays clearer images, with improved target separation.
See images more clearly on a brighter screen, thanks to a more sensitive transducer and better target separation.
Monitor the surroundings with sharper images, improved noise reduction and fewer sonar artifacts.
Upgrade your LiveScope Black Box (GLS 10 sonar module) with a new transducer.
Optimize the contrast and clarity of your images thanks to the 7 Vivid color palettes.
The attitude and heading reference system (AHRS) ensures the stability of the sonar view, even in difficult conditions.

It is therefore essential to use the perche de sonde BASIC Pike'N Bass Made in FRANCE which installs easily on all types of boats thanks to the pedestal supplied as standard.
Made of aluminum tubes it adapts to all boat decks of polyester, aluminum, wood or polyethylene.

The brass inserts 247316 247306 and stainless 247406 AMIAUD optional, make installation easier. It allows quick deployment of your transducer and 360° orientation to optimize the view on your screen in all circumstances. It folds easily into the horizontal position to allow you to leave your complete installation safely on your boat during high-speed navigation but also on the road during transport.

Power supply advice :
The sonde LIVESCOPE LVS34/MODULE GLS10 must be powered at 12v in addition to your fishfinder. You must provide enough current in Amperes on your 12V battery for good autonomy over a whole day.
It is recommended to install a switch and/or circuit breaker on the power supply of your LIVESCOPE transducer to be able to cut it off during movement on the water.

Advice for installing the LIVESCOPE transducer on the removable transducer pole :
The mounting of the transducer pole is generally on the starboard side and next to the control station in order to be able to adjust the orientation of your transducer while seated on your seat at the console of your boat and to enjoy a complete view if you are two anglers in vertical fishing mode.
- For navigation with an outboard engine and at high speed, you must fold your pole into the horizontal position to avoid any risk of damage and thus protect your transducer.

Optional accessories :
• Panoptix Livescope transducer mounting kit Perspective Mode reference 010-12970-00
• LiveScope Plus LVS34 transducer only reference 010-02706-10

Optional LIVE BASIC transducer pole accessories :
• Adjustable handle 60cm reference 410180
• Live transducer pole sight reference 410183
• End stop ring Ref 410175
• GM plate transducer mount for transom Ref 410165

Attention !! If you need to raise your transducer out of the water, remember to turn off the PING of the transducer on your screen so as not to run it out of the water.

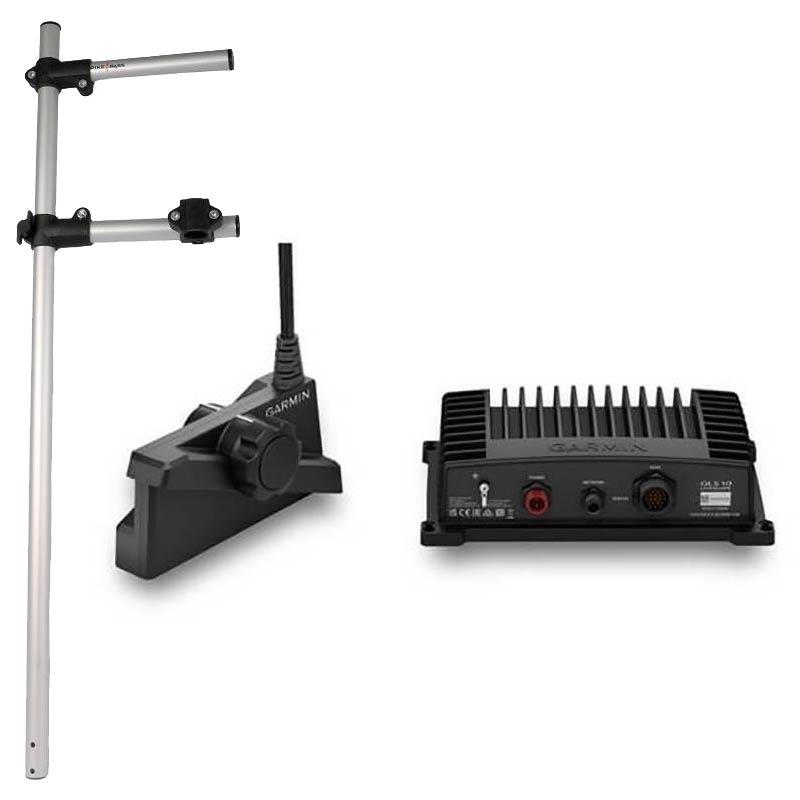

Pack contents :
• LiveScope GLS 10 sonar black box
• Panoptix LVS34 transducer
• Perspective mode mount
• Mount for the electric motor barrel
• Shaft mount
• Power cable
• Garmin Marine Network network cable of 2 meters (small connector)
• Network adapter cable
• Documentation
• 1 Perche de sonde LIVE BASIC PIKE N BASS 1ml reference 410191 with black Pedestal.

Installation guide
