ELECTRIC MOTOR HASWING VENTURA F 5.0 – 160 LBS

Electric Motor Haswing Ventura F 5.0 – 160 Lbs

Name: ELECTRIC MOTOR HASWING VENTURA F 5.0 – 160 LBS
Brand: Haswing
SKU: 381232

Read more-Product description

£1217.13

Recommended retail price : £1217.13

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

18549063

(Unavailable)

Models & specificities Descriptive

Descriptive

Back to menu

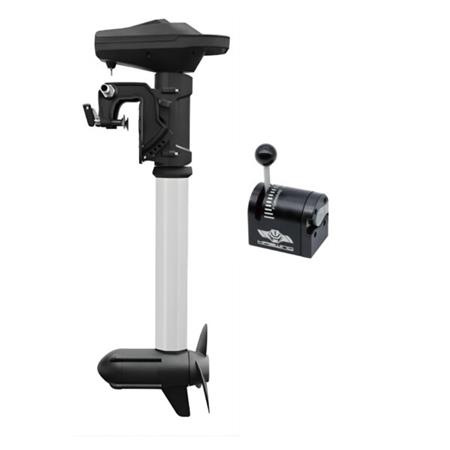

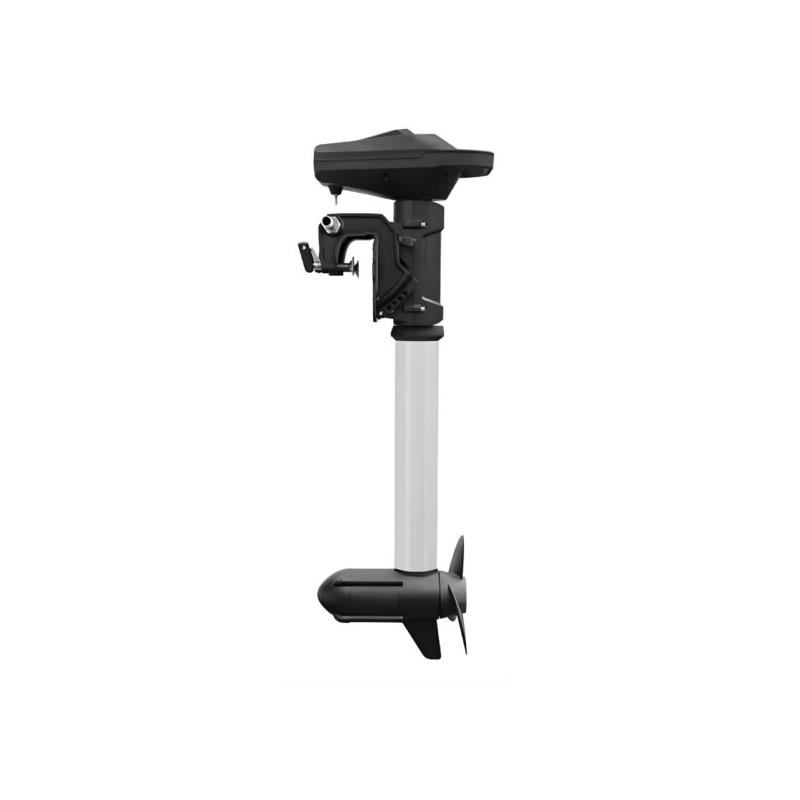

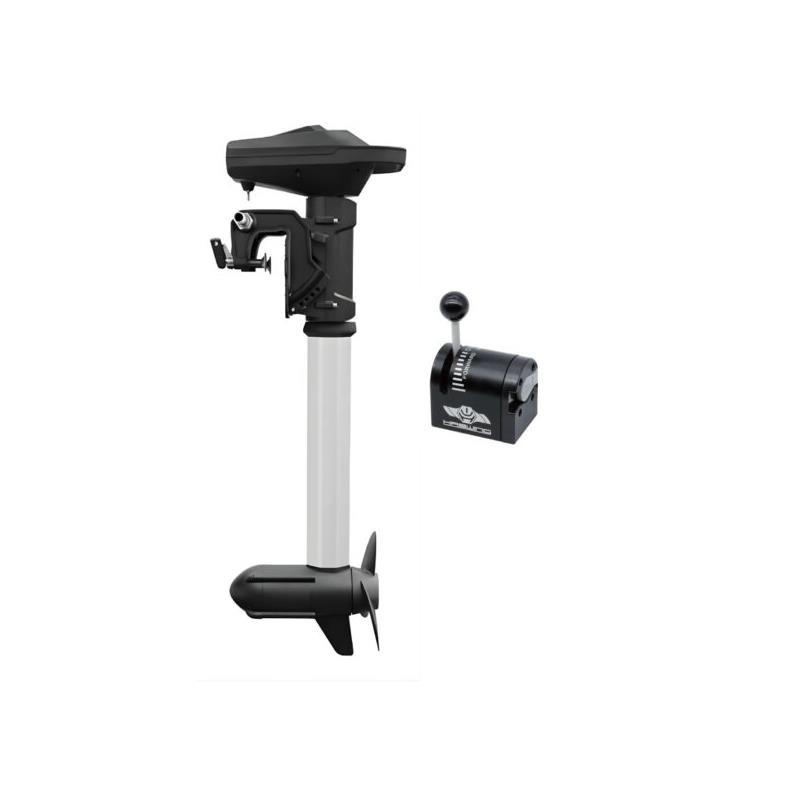

powerful and reliable, the ventura f 5.0 engine in transom mount is equipped with a 24 v brushless motor capable of delivering up to 160 lbs of thrust.

designed to offer high-level performance, it adapts to a wide variety of boats.

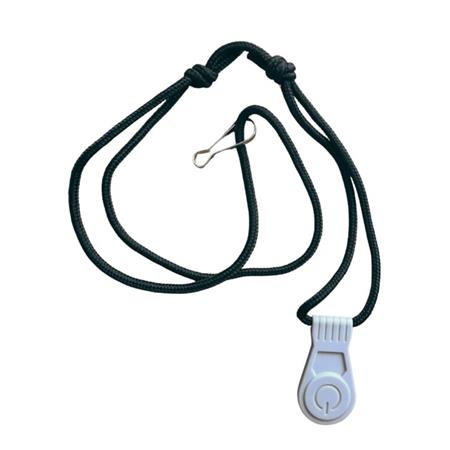

its remote control allows smooth and intuitive handling, while the magnetic emergency stop system guarantees optimal safety. Convenient, the motor tilts and lifts in a single movement, making it easy to use whatever the navigation conditions.

it is also equipped with an lcd screen displaying the battery voltage for clear and immediate monitoring

(steering wheel required, not supplied).

for use in fresh and salt water.

highlights :
• electric outboard motor 24 v, 160 lbs
• max. thrust: 160 lbs
• amp. (max.): 105 a
• power (max.) : 2520 w
• propeller: 3 blades
• user, maintenance and warranty manual
• recommended battery (not included): type 120 ah x 2 slow discharge

technical specifications :
• max thrust : 160lbs
• weight : 15.7kg
• amperage (max) : 105a
• power (max) : 2520w
• voltage : 24v
• battery charge indicator : continuous digital display (lcd screen)
• lead battery recommended as an option type 120 ah x 2 slow discharge
• mounting : at the rear : 7 positions

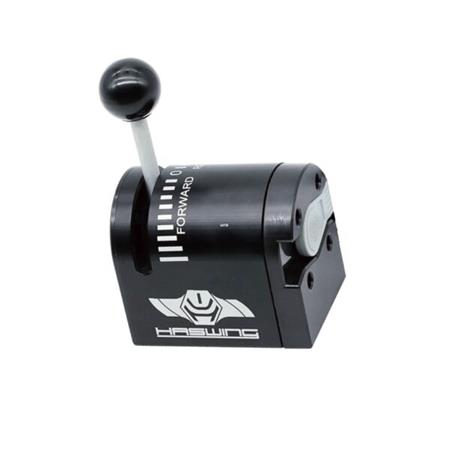

• control system : remote control
• motor body : aluminum casting
• speed adjustment : direct electronic variable adjustment fwd / rev with magnetic key
• black 3-blade propeller
• shaft length : 760mm
• boat length and weight : 8m and 800kg

power supply advice :
this motor runs on 24v and can be powered either by two 12v 120amp slow-discharge lead-acid batteries or by a 24v lithium battery but in brushless model only for high currents.
