STANDARD ROD FOR FISHFINDER PIKE'N BASS WITH PLATE

Standard Rod For Fishfinder Pike'n Bass With Plate

Name: STANDARD ROD FOR FISHFINDER PIKE N BASS WITH PLATE
Brand: Pike'n Bass
SKU: 140975
Rating: 4 (2 reviews)

Read more-Product description

(2 reviews)

£58.87

Recommended retail price : £70.31

Shipping within 24h

20 days for returns

Models & specificities

Descriptive

Reviews

Models & specificities Descriptive Reviews

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Length (cm)

Shipping

Price inc VAT

409170

£58.87

Shipped within

24h

Shipped within

24h

£58.87

Models & specificities Descriptive Reviews

Descriptive

Back to menu

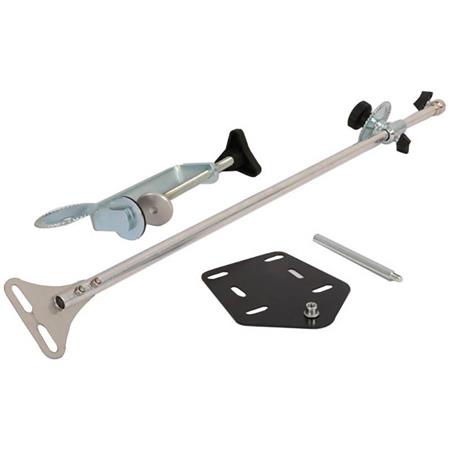

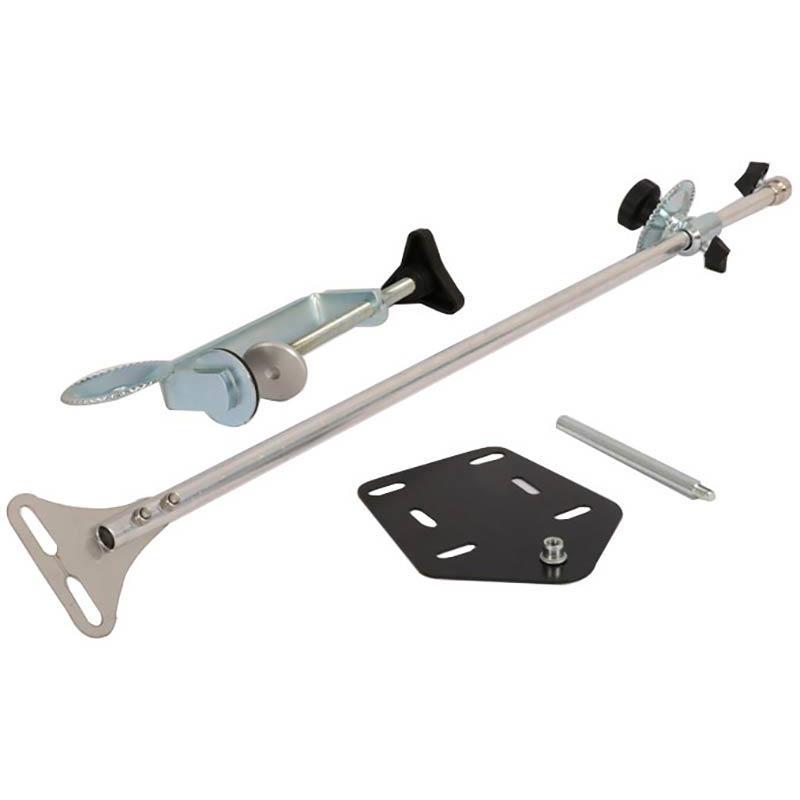

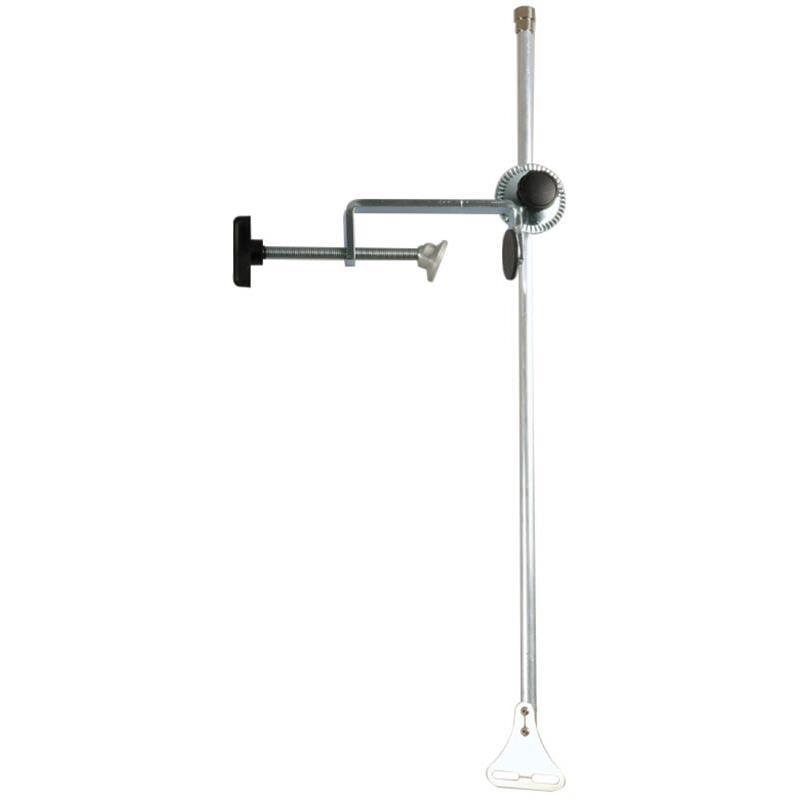

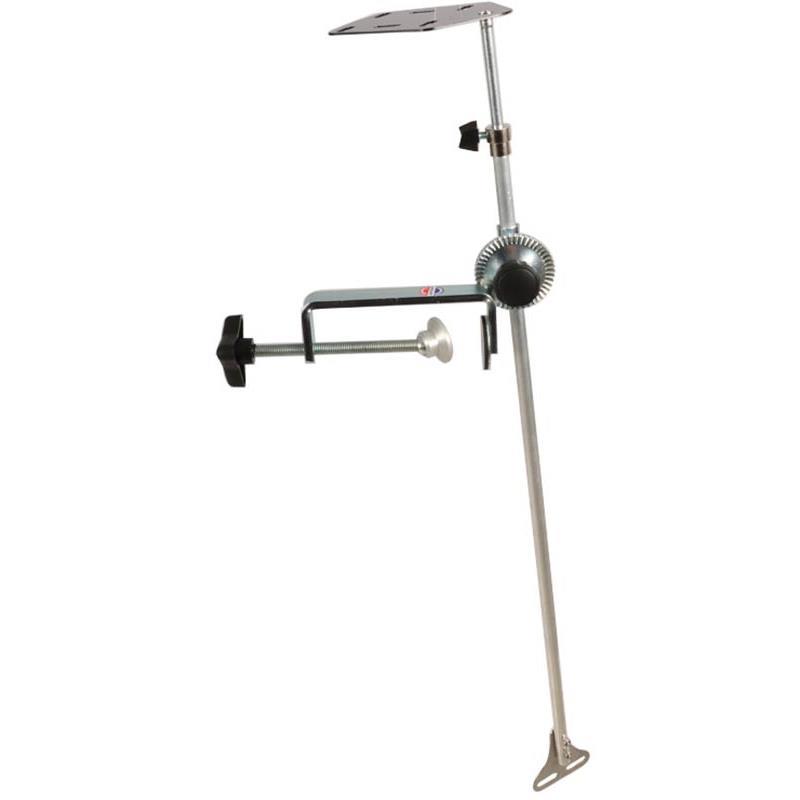

Fishfinder support plus Pike'n Bass transducer rod, height-adjustable and orientable with screen mounting plate
Allows you to quickly attach your fishfinder with the transducer to the edge of your boat

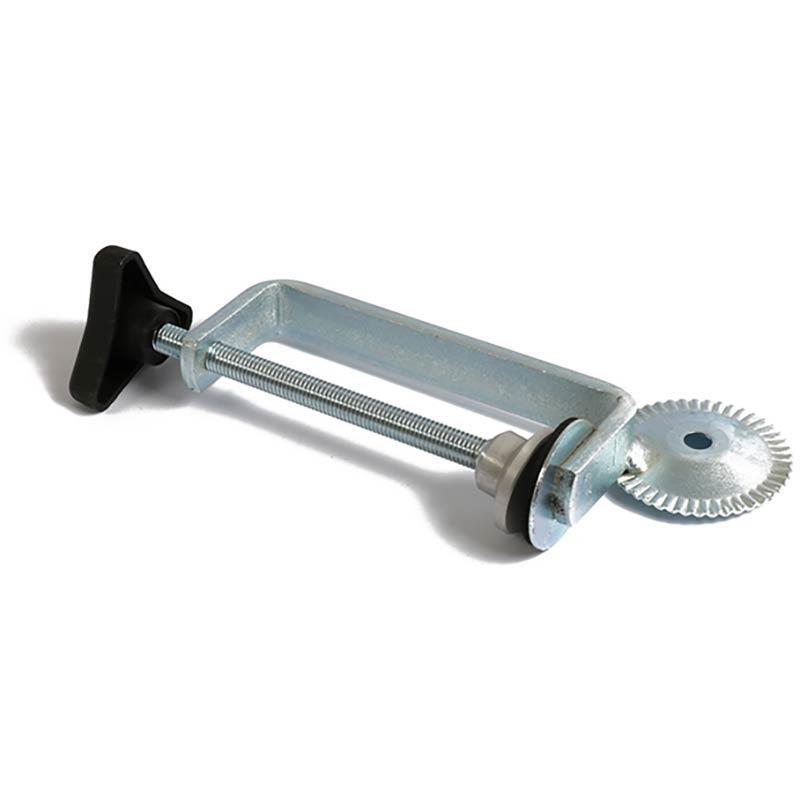

Clamp:
- Material : galvanized steel (flat 20x6mm)
- 1 clamping point
- Maximum clamping width : 106mm
- Maximum clamping height : 40mm
- Serrated welded washer Ø 58mm
- M10 tightening knob with aluminum ball joint total length : 160mm
Rod + transducer support plate:
- Material : aluminum
- Length : 610mm
- Rod Ø : 12mm x 1mm
- Collar to receive screen mounting plate (ref:409200)
-Stainless steel transducer support plate :
- Thickness 1,5mm
- Dimensions: 65*65mm
-Oblong holes : 23*6,2mm for transducer mounting with a minimum spacing of 14mm and maximum of 50mm
- Pivot in galvanized steel with M6 tightening screw

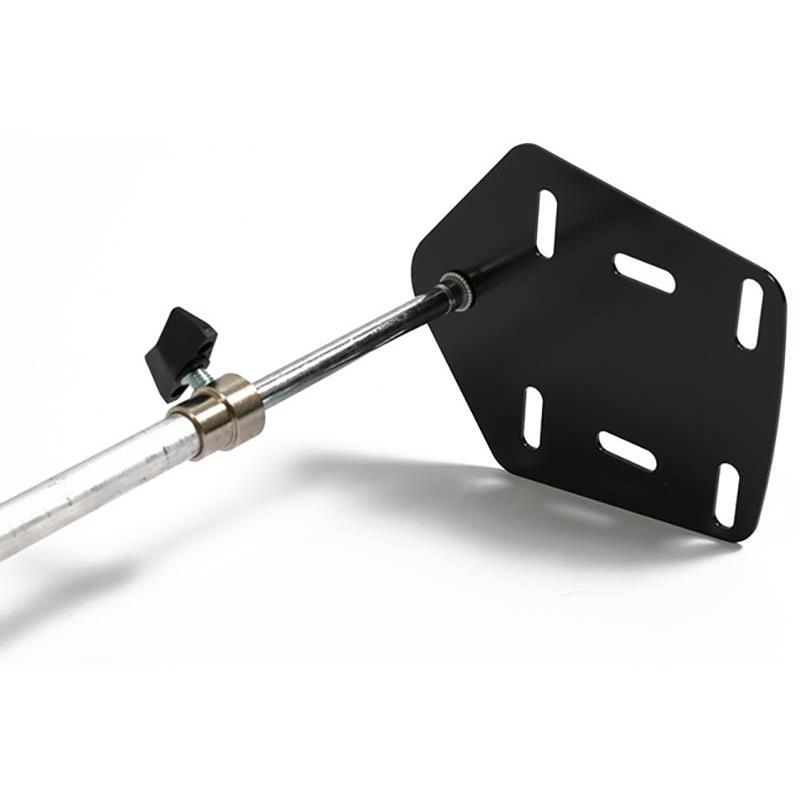

Screen support:
- Plate material : steel cataphoresis treatment
- Dimensions : 127x103mm
- M6 insert for rod attachment
- 6 oblong screen mounting holes Ø:20x6.2mm
- Galvanized steel rod Ø 8mm with M6 threaded end

Made in France(EN)
