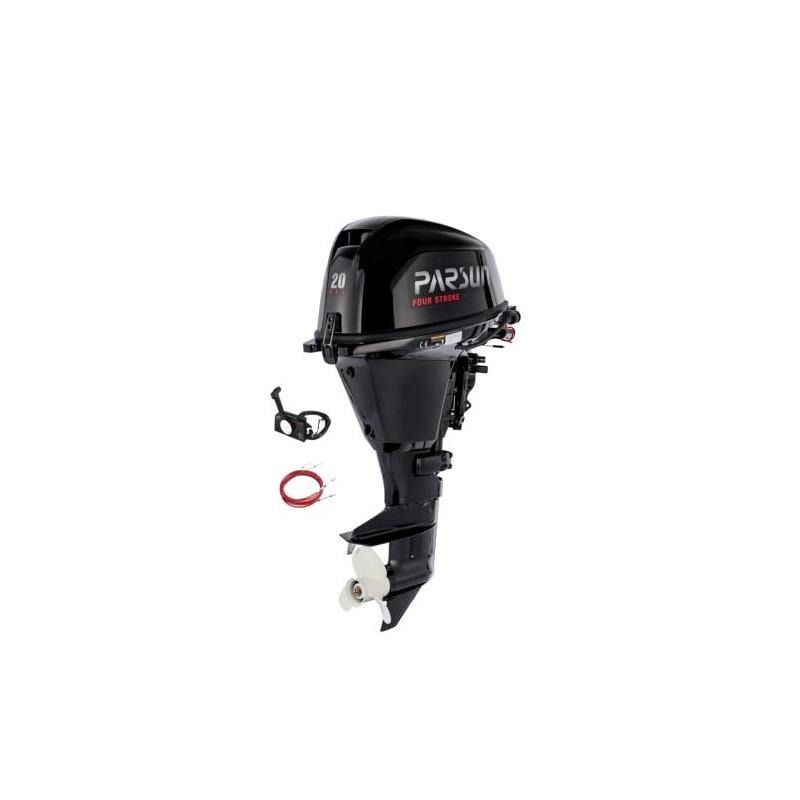

PARSUN 20 HP engine, short shaft remote control
These are robust and dynamic motors, whose quality exceeds the standards required in CE and EPA standards
All PARSUN outboard motors undergo factory quality controls to ensure perfect mechanical operation and to offer our distributors and users the certainty of having one of the best 4-stroke outboard motors on the market.
Short shaft features • Short shaft • Remote control • Overall length: 988mm • Overall width: 420mm • Overall height: 1070mm • Recommended transom height: 381mm • Weight: 52.7 kg
Technical data • Revolutions: 5000-6000 rpm • Power [kw (Hp) @ rpm] : 14.7(20)@5500 • Type of engine: SOHC • Number of cylinder(s): 2 in line • Displacement: 362 cm³ • Bore x stroke: 63 x 58.1 mm • Ignition system: CDI • Starting system: Electric • Positions: Forward-Neutral-Reverse • Gear ratio: 2.08: 1 (27/13) • Tilt: Manual Adjustment • Tank capacity: 24 L (Integrated) • Max consumption: 6.9 L/h • Oil sump capacity: 1.6 L • Lower unit oil capacity: 25 Cl • Three-blade propeller: diam. x pitch [inches] : 3-9 ¼" x 11"
In the pack: • External 24 L tank • Supply duct and priming bulb • Single throttle lever with electric start • Throttle cable • Forward - reverse control cable • 2 ignition keys • Backup launch cord and handle • Emergency stop cord • User manual in French
PLEASE NOTE, Parson engines are delivered: • Without engine oil: the customer must fill it up (type of oil: SAE10W30 or SAE10W40) • With a storage oil in the lower unit: this must be drained, the oil to be purchased is Hypoid SAE 90 oil The fuel to use is strictly unleaded petrol 98.
