Transducer ACCUPHY PingLive Sonar

Description
The ACCUPHY PingLive Mini is a compact and versatile live sonar designed to make live technology accessible to as many people as possible.

Download the « Accuphy Sonar » app now to test and preview the different modes in simulation. Once installed, open the app, go to Settings and enable Simulator mode. If the app works correctly in Simulator mode, your device should have no problem using our products.

Operating without a dedicated screen, it uses a smartphone or tablet as a display interface via a Wi-Fi connection. Its lightweight design and low power consumption make it an ideal choice for light boats such as float tubes or kayaks.

The PingLive Mini offers several display modes (Forward, Down, Combo, Down Scan and traditional sonar) to adapt to all fishing situations, from simple scouting to live observation.

Main features
- Compact live sonar
- 5 modes: Forward, Down, Combo, Down Scan, Traditional Sonar
- Coverage angle: 39° / 78°
- Maximum range up to approximately 70 m
- Wi-Fi connection
- Smartphone / tablet compatible
- Power supply 10 to 18V
- Consumption: 12W to 25W
- Power supply recommendations
- The PingLive Mini operates on 10–18V.
- A suitable battery is recommended to ensure sufficient autonomy for a full session.
- A shut-off system (switch or circuit breaker) is recommended to secure the installation.

Installation tips

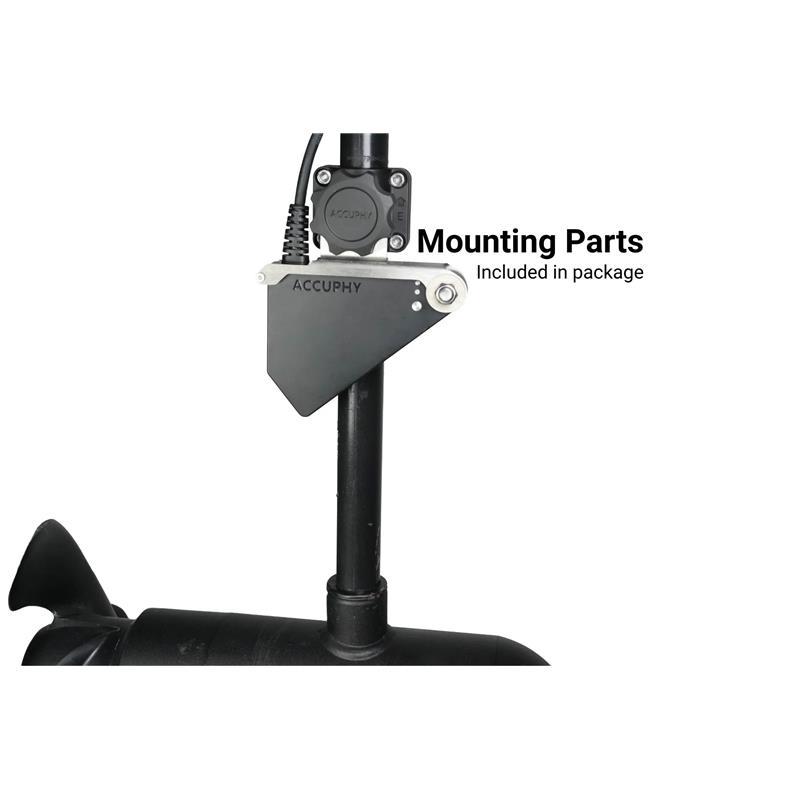

The transducer can be installed on a transom or on a dedicated pole for better orientation.
Using a pole is particularly recommended to fully exploit the live views (Forward and Down) and to precisely adjust the search area.
When navigating at speed, it is recommended to raise the transducer to protect it.

Package contents :

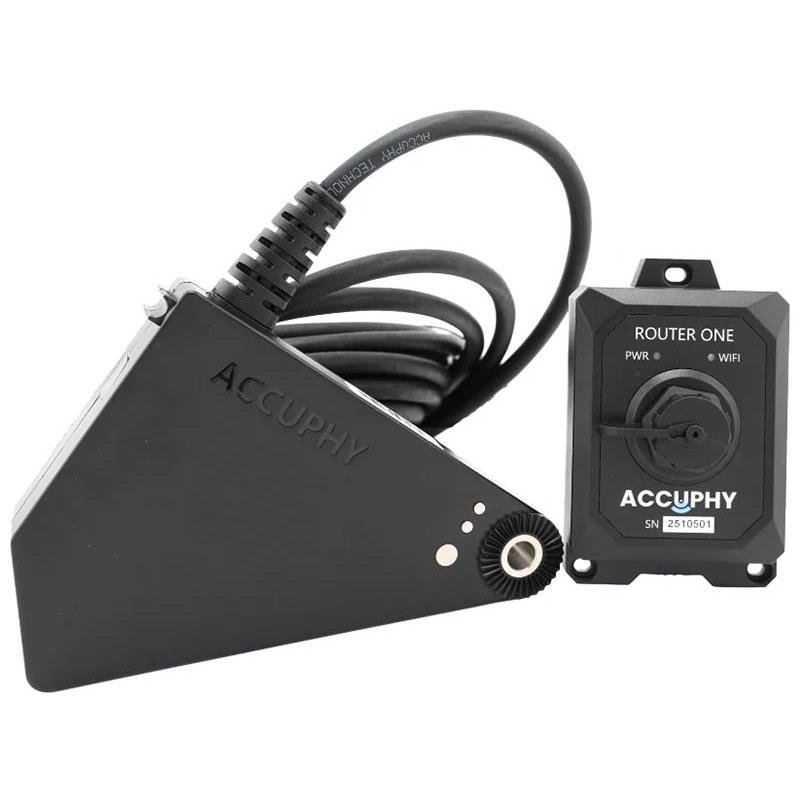

- PingLive Mini transducer
- Wi-Fi router
- Power cables
- Mounting accessories
- Documentation

What is it for ?
- Float tube / kayak fishing
- Discovering live sonar
- Simple and effective scouting
- Recreational fishing

Product highlights
- Simple and quick installation
- Use without dedicated screen
- Accessible live technology
- Compact format and low consumption

Transducer specifications
- Dimensions : 12,5 x 10 x 2,3 cm, or 5 x 3,9 x 0,9 inches
- Weight : 0,6 kg or 1 lb 5 oz
- Transducer beam width: 39° (direct forward and direct down)
- Transducer cable length: 6 m or 20 feet
- Transducer number of pins: 8
- Temperature range: 0°C to 40°C, or 32°F to 104°F

Electrical parameters
- Power input : 10-18 V DC
- Power consumption : 12 W typical, 25 W max.

Sonar parameters
- Frequency : 450 - 1 100 kHz
- Transmit power : 500 W
- Maximum range : 70,0 m or 230 ft (freshwater)

Connection options
- Wireless : Accuphy Wi-Fi router (included)

Software
iOS application (Accuphy Sonar)
Android application (Accuphy Sonar)

User manual
