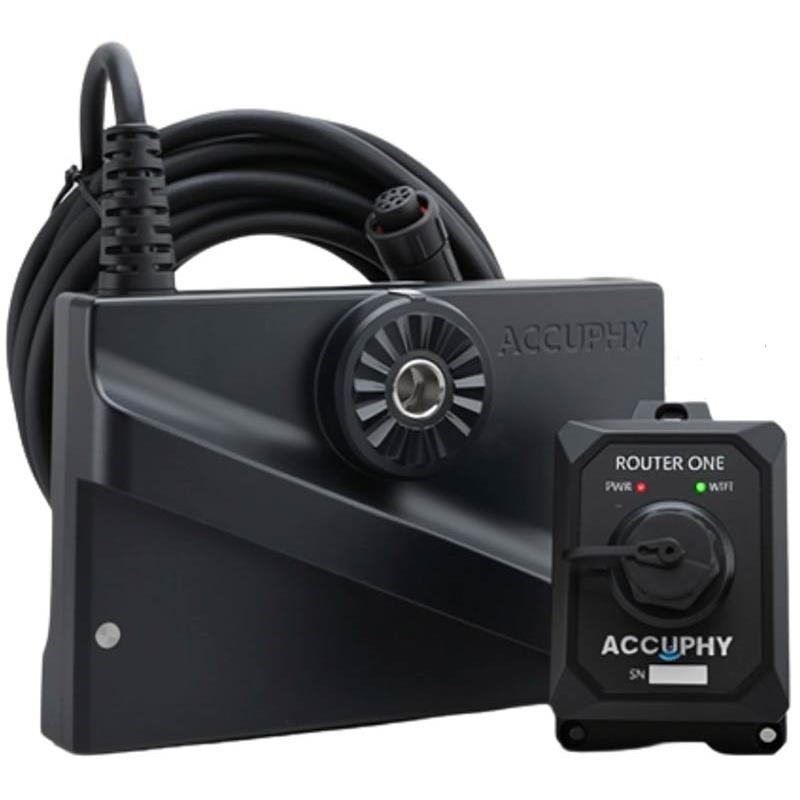

ACCUPHY PingLive Sonar Transducer

The ACCUPHY PingLive Sonar is a next-generation Live sonar system designed to provide a real-time view of underwater activity directly on a smartphone or tablet.

Download the "Accuphy Sonar" app now to test and view the different modes in simulation. Once installed, open the app, go to Settings and enable Simulator mode. If the app works correctly in Simulator mode, your device should have no problem using our products.

Unlike traditional fishfinders, the PingLive integrates all processing directly into the transducer, eliminating the need for an external box.

Data transmission is carried out via a supplied Wi-Fi router, ensuring a simple, quick and uncluttered installation.

Thanks to its wide 135° viewing angle and its different display modes (Forward, Down and Panoramic), it allows precise identification of structures, tracking of fish movements and instant adaptation of your fishing strategy.

The PingLive is aimed at technical anglers seeking precise environmental readings and a modern, high-performance solution.

Main features
• Live sonar with real-time visualization
• 3 views: Forward, Down and Panoramic
• Wide coverage angle 135°
• Maximum range up to approximately 90 m
• Wi-Fi connection via supplied router
• Use with smartphone or tablet (iOS / Android)
• Processor integrated into the transducer (no external box)
• Power supply 10 to 18V
• Power consumption: 22W to 40W

Power supply recommendations
• The PingLive must be powered with 10–18V.
• It is recommended to use a suitable battery offering sufficient capacity to guarantee a full day of autonomy.
• The installation of a switch or a circuit breaker is advised to easily cut the power during transit.

Installation recommendations

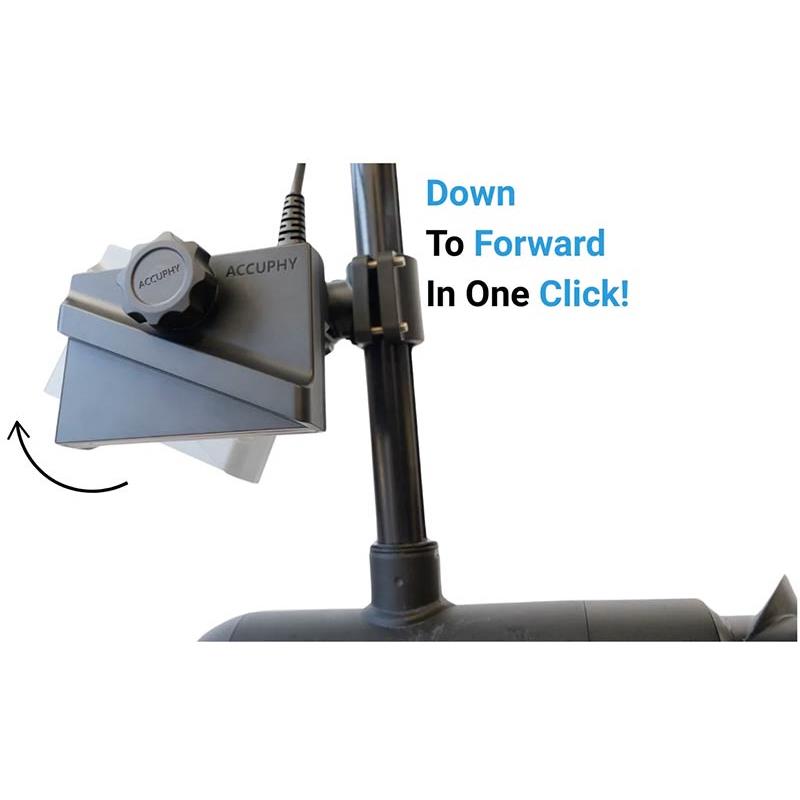

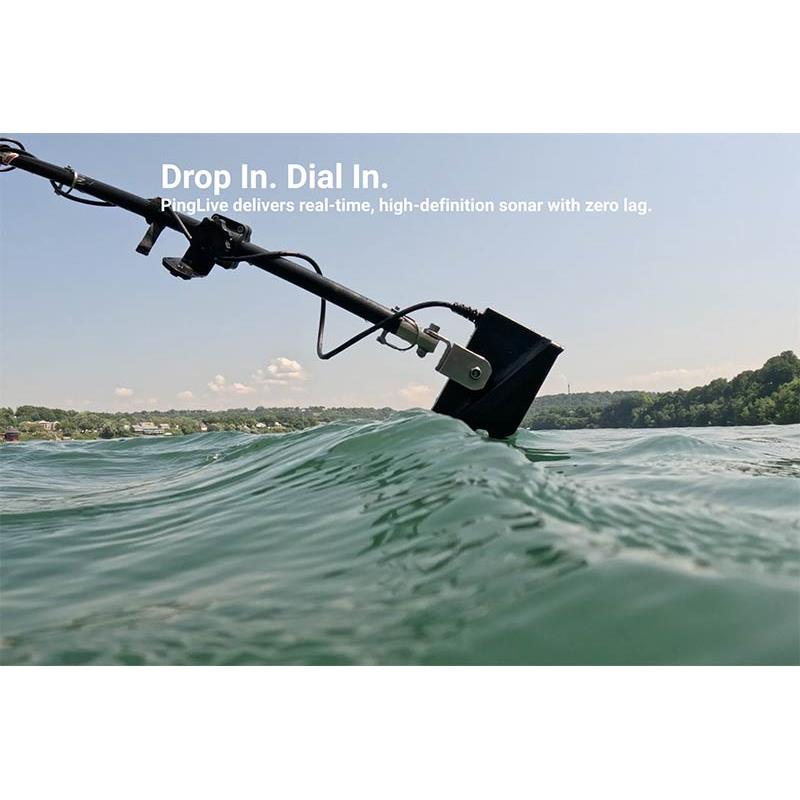

• The transducer can be installed on an adjustable pole or directly on the boat depending on your use.
• For optimal use in active fishing (vertical or casting), it is recommended to mount the transducer on an adjustable pole to precisely control the beam direction.
• When traveling at high speed, it is imperative to raise the transducer to avoid any risk of damage.

Package contents
• PingLive transducer
• Wi-Fi router
• Power cables
• Mounting accessories
• Documentation

Intended use
• Live predator fishing (vertical / SHARP)
• Active prospecting
• Searching for structures and echoes
• Observing fish behavior

Transducer specifications :
• Dimensions: 6.3 x 4.1 x 1.9 in.
• Weight: 1080g (with cable)
• Frequencies: 450 - 1,100 kHz
• Power consumption: 22 W typical, 40 W max.
• Operating temperature: 0°C to 40°C
• Maximum depth/distance: 91 m (300 ft)

Wi‑Fi One router specifications
• Dimensions: 3.35 x 2.95 x 1.38 inches
• Weight: 0.2 kg
• Temperature range: -20°C to 40°C
• Transducer ports: 1
• Power input: 11-24 V DC
• Power consumption: 3 W typical, 6 W max.
• Frequency: 2.4/5.8 GHz
• Wi‑Fi modes: IEEE802.11A/B/G/N/AC
• Effective Wi‑Fi range: 100 feet*
*A power source capable of providing at least 6 A output is required for optimal performance.
