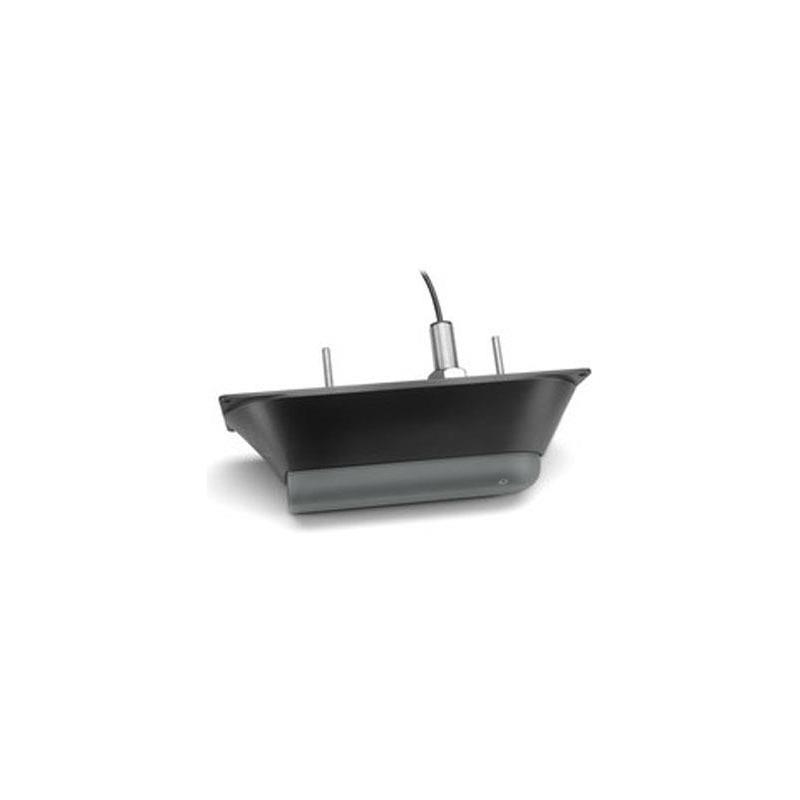

Through-Hull Transducer Garmin Gt21-Th Downvu

Name: THROUGH-HULL TRANSDUCER GARMIN GT21-TH DOWNVU
Brand: Garmin
SKU: 142206

Read more-Product description

£413.51

Recommended retail price : £509.52

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

010-01962-10

£413.51

Models & specificities Descriptive

Descriptive

Back to menu

Through-hull transducer optimized for significant depths and harsh conditions. It provides optimal imaging of the seabed, submerged structures and fish. It delivers 500W power in DownVü CHIRP mode (260/455kHz) and 600W in traditional 2D mode (50/200kHz).

Supplied with stainless through-hull transducer GT21-TH, mounting shoe, installation kit, documentation. Suitable for any type of hull with an angle less than 5°.

Specifications :
• Weight: 10.55 kg
• Cable length: 9m
• Number of pins: 8
• Dimensions :
- Transducer: 228 x 62 x 41 mm
- Threaded shaft: Ø24 x 135 mm
- Mounting shoe: 323 x 116 x 64 mm
• Frequencies :
- Traditional : 50/200 kHz
- DownVü: CHIRP 245-275 kHz and CHIRP 445-465 kHz
• Power :
- Traditional : 600 W
- DownVü : 500 W
• Maximum range :
- Traditional: 457m
- DownVü: 304m
• Beamwidth (°) LF/HF (-3dB):
- Traditional : 40/10
- DownVü : 2.0 x 51@260 / 1.4 x 29@455
• Temperature sensor: yes

Installation guide
