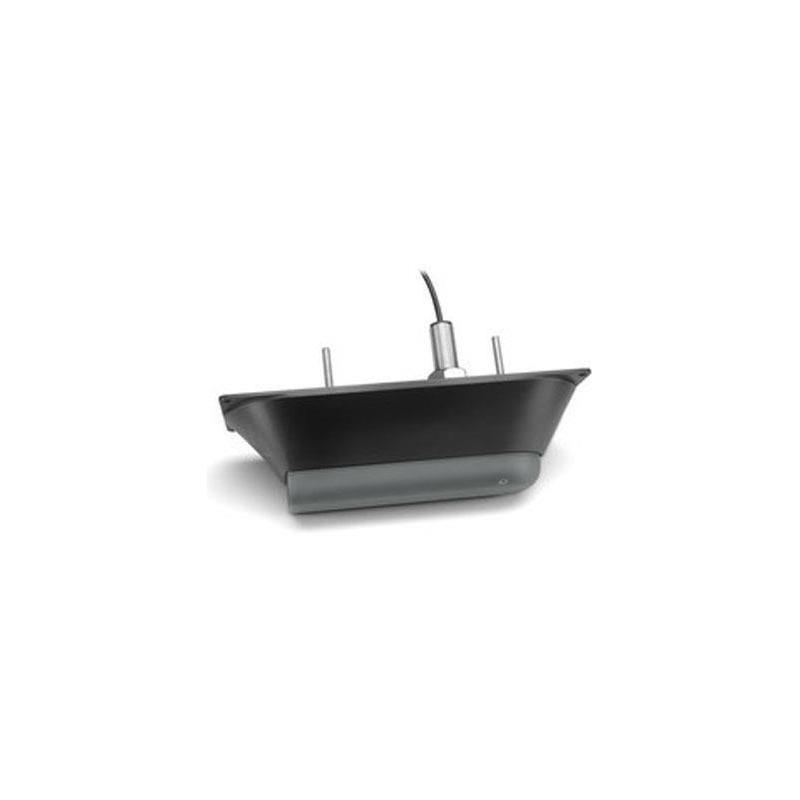

Steel Thru-Hull Transducer Airmar Garmin Gt23m-Th

Name: STEEL THRU-HULL TRANSDUCER AIRMAR GARMIN GT23M-TH
Brand: Airmar
SKU: 142633

Read more-Product description

£721.54

Recommended retail price : £721.54

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Frequency (kHz)

Cons. (W)

Price inc VAT

010-12404-10
(Unavailable)

£721.54

80/160/260/455

600

£721.54

Models & specificities Descriptive

Descriptive

Back to menu

The GT23M-TH transducer is perfect for coastal and offshore anglers who want an excellent traditional CHIRP sonar and a scanning sonar with CHIRP DownVü. This transducer, designed for transom mounting, clearly and accurately displays fish schools thanks to superior target separation and a clear definition of the structure beneath the boat.

The 8-pin transducer provides a traditional CHIRP sonar in the mid band (80-160 kHz) with 600 W power. The CHIRP DownVü element (260/455 kHz) offers 500 W power.

Carefully follow the installation instructions to avoid any damage to your boat.

Specifications :
• Weight : 2.19 kg
• Cable length : 9m
• Connector pin count : 8
• Dimensions :
- Transducer : 228 x 62 x 41 mm
- Transducer shaft : Ø 24 x 135 mm
- Fairing block : 323 x 116 x 64 mm
• Frequency :
- Traditional : CHIRP 80-160 kHz
- DownVü: CHIRP 245-275 kHz and CHIRP 445-465 kHz
• Transmit power :
- Traditional : 600 W
- DownVü : 500 W
• Maximum depth :
- Traditional : 548.6 m (1,800 ft)
- DownVü : 304.8 m (1,000 ft)
• Beamwidth (°) BF/HF (-3dB) :
- Traditional : 24/13
- DownVü : 2.0x51@260 / 1.4x29@455
• Water temperature reading : Yes

In the box :
• GT23M-TH transducer
• Stainless steel strap
• Shoe
• Insulating plate and rings
• Extension cable
• Mounting hardware
• Documentation
