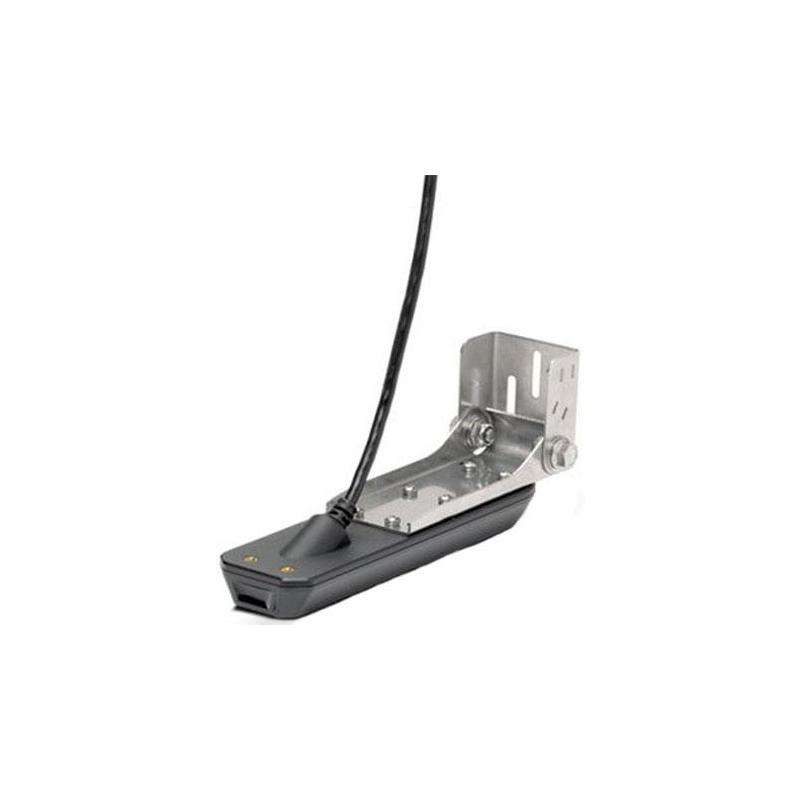

Transom Transducer Humminbird Chirp Ds Et Mega Si+

Name: TRANSOM TRANSDUCER HUMMINBIRD CHIRP DS ET MEGA SI+
Brand: Humminbird
SKU: 189987
Rating: 5 (3 reviews)

Read more-Product description

(3 reviews)

£641.52

Recommended retail price : £676.72

20 days for returns

Models & specificities

Descriptive

Reviews

Models & specificities Descriptive Reviews

Models & specificities

Back to menu

Reference

Price inc VAT

Frequency (kHz)

Transducer

Price inc VAT

SH-A107T

£641.52

150/220/180/240/140/200

With Transom-Mounted Transducer

£641.52

Models & specificities Descriptive Reviews

Descriptive

Back to menu

Transom-mounted Dual Spectrum / Mega Side Imaging+ transducer for your HELIX G3 and HELIX G4 range

Straight from Humminbird’s design offices, these transducers incorporate the best ceramics available and also feature a very low “Q” factor, which protects the ceramics from unnecessary vibration to deliver the clearest, most precise image of the water column. The most advanced fishfinder image ever available on a Humminbird fishfinder.

Specifications :
• Dual Spectrum CHIRP frequencies: Full: 150–220 kHz, Narrow: 180–240 kHz, Wide: 140–200 kHz
• Dual Spectrum CHIRP maximum depth: 1,200 ft (365 m)
• Mega Side Imaging+ frequencies - maximum range (side-to-side): 455 kHz: 440–500 kHz - 800 ft (244 m), 800 kHz: 790–850 kHz - 250 ft (76 m), Mega SI+: 1,075–1,150 kHz - 400 ft (122 m)
• Mega Down Imaging+ frequencies - maximum depth: 455 kHz: 440–500 kHz - 400 ft (122 m), 800 kHz: 790–850 kHz - 125 ft (38 m), Mega DI+: 1,075–1,150 kHz - 200 ft (61 m)
• Transducer characteristics: Dual Spectrum / Narrow beam 180–240 kHz & Wide beam 140–200 kHz Mega SI+ (1,050–1,175 kHz)
• CHIRP module frequencies: Mega Imaging+ (405–535 kHz / 780–860 kHz / 1,000–1,300 kHz) Dual Spectrum (140–240 kHz)
• Dimensions (mm): 25 x 230 x 60
• Gross weight: 0.64 kg
