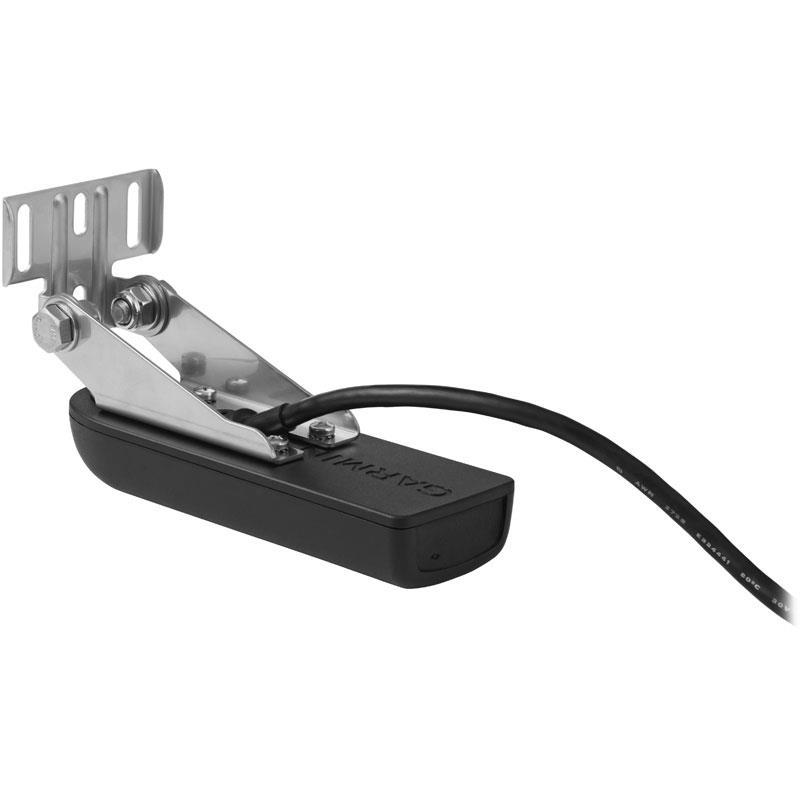

Your Plastic Transducer Airmar Garmin Gt22hw-Tm

Name: YOUR PLASTIC TRANSDUCER AIRMAR GARMIN GT22HW-TM
Brand: Airmar
SKU: 142631

Read more-Product description

£183.92

Recommended retail price : £183.92

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Frequency (kHz)

Cons. (W)

Price inc VAT

010-12403-00
(Unavailable)

£183.92

150/240

250

£183.92

Models & specificities Descriptive

Descriptive

Back to menu

The GT22HW-TM transducer is perfect for freshwater anglers who want a traditional CHIRP sonar and a CHIRP DownVü scanning sonar. This transducer, which mounts on a transom or an electric motor, continuously displays fish targets clearly and sharply, with superior target separation as well as a clear definition of structure beneath the boat.

The 8-pin transducer features a traditional CHIRP sonar in a high and wide band (150-240 kHz) and delivers 250 W of power. The CHIRP DownVü element (455/800 kHz) has a power of 500 W.

The GT22HW-TM is ideal for mounting on an electric motor due to its compact size. Carefully follow the installation instructions to avoid any damage to your boat.

Features :
• Weight : 0.43 kg (0.94 lb)
• Cable length : 6.1 m (20 ft)
• Number of connector pins : 8
• Frequency :
- Traditional : CHIRP 150-240 kHz
- DownVü: CHIRP 425-485 kHz and CHIRP 790-850 kHz
• Transmitted power :
- Traditional : 250 W
- DownVü : 500 W
• Maximum depth :
- Traditional : 800 ft
- DownVü : 152.4 m (500 ft)
• Beamwidth (°) BF/HF (-3dB) :
- Traditional : 24/16
- DownVü : 2.0x50@455 / 1.0x30@800
• Water temperature reading : Yes

In the box :
• GT22HW-TM transducer
• Transom mount
• Electric motor mount
• Mounting hardware
• Documentation
