Transom Transducer Airmar P66 Dst

Name: TRANSOM TRANSDUCER AIRMAR P66 DST
Brand: Airmar
SKU: 193360

Read more-Product description

£268.83

Recommended retail price : £268.83

20 days for returns

Receive our offers and promo codes by email
Subscribe to the newsletter

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Model

Frequency (kHz)

Cons. (W)

Transducer

Price inc VAT

AI-31-472-1-03

£268.83

With temperature

50/200

600

Plastic transom transducer with temperature sensor

£268.83

Models & specificities Descriptive

Descriptive

Back to menu

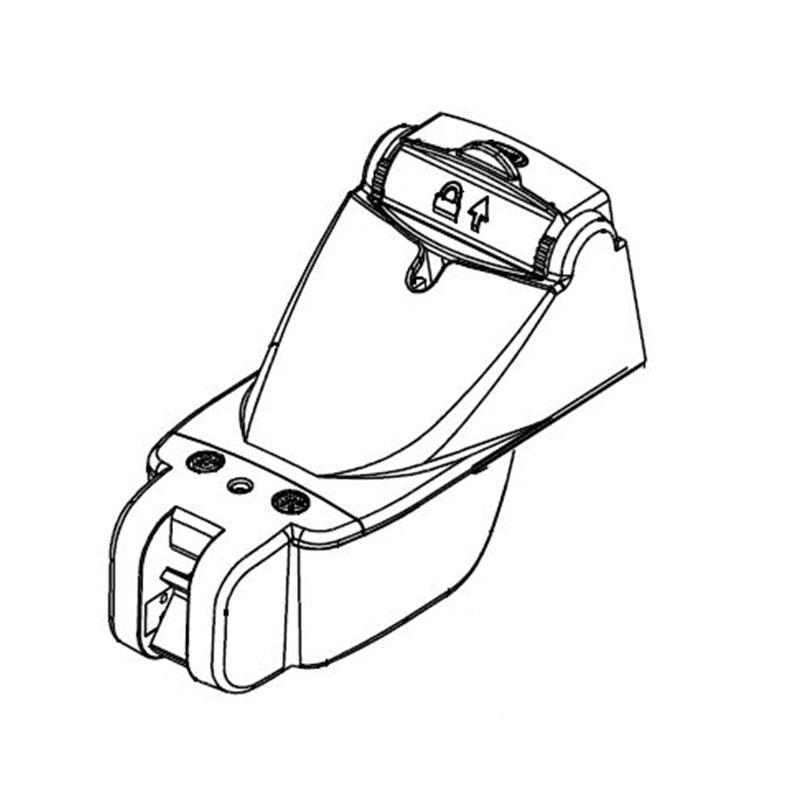

The SP50200TA-2 three-function transducer; depth, speed and temperature, with a transom mount, is the most powerful in its range. The 50 kHz and 200 kHz ceramics produce concentrated beams that highlight the water column and bottom structure.

The SP50200TA-2 transducer offers a 45°/11° beam and fits hull angles from 2° to 20°.

Because of its hydrodynamic shape, the water exiting the transom flows smoothly through the transducer. This results in precise and fast bottom readings with clear images. In addition, this sensor also incorporates a patented noise suppression system. Indeed, this transducer has improved protection against vibration and noise. Thanks to this system, the boat gains a speed of 5 to 8 knots (6 to 9 km/h) compared with conventional transducers with a transom mount. Finally, the plastic bracket allows the sensor to pivot to protect the housing if it is struck from the front.

The SP50200TA-2 transducer is compatible with the bottom discrimination function and ACCUFISH for FURUNO sounders FCV627, FCV587, FCV628 and FCV588, TZTL12F and TZTL15F and on FURUNO combo units GP1670F, GP1870F.

Bottom discrimination :
• Seabeds are composed of very different elements that are often impossible to see. Yet, we would like to know their nature in order to position ourselves on the best fishing spot or to know where to anchor.
• Bottom discrimination technology offers the ability, in addition to classic echo sounder functions, to analyze and illustrate the nature of the bottom: silt, sand, gravel or rock, in depths from 5 to 100 m.
• This sensor is also compatible with the REZBOOST function of the FCV628, FCV588 and the TZTL12F and TZTL15F.

Fishing Applications :
• Lake and sea fishing for small and medium-sized outboard boats

Specifications :
• Plastic mount that lifts on impact
• Depth, speed and temperature functions
• Brand: Airmar
• Ceramic trim: 0°
• Depth: YES
• Speed: YES
• Temperature: YES
• Installation angle tolerance: 2° to 20°
• Beam angle: 45° / 11°
• Frequency: 50/200 kHz
• Compatible with bottom discrimination: YES
• Cable length: 10 m
• Compatible with FURUNO sounders AF/BD/ (RB): with GP1871F GP1971F FCV628 FCV588 BBDS1 TZTL12F TZTL15F TZT2BB TZT9F TZT12F TZT16F TZT19F

Box contents :
1 X Three-function transducer P66DST
1 X 10 m power cable
1 X Mount with installation hardware
1 X Installation manual
