Pack With 12V100amp Marine Battery Haswing Energy Osapian 30 Lbs Avec Batterie Marine 12V100amp

Name: PACK WITH 12V100AMP MARINE BATTERY HASWING ENERGY OSAPIAN 30 LBS AVEC BATTERIE MARINE 12V100AMP
Brand: Haswing
SKU: 362210

Read more-Product description

£303.63

Recommended retail price : £303.63

Shipping within 24h

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Price inc VAT

18548505

Shipped within

24h

Shipped within

24h

Models & specificities Descriptive

Descriptive

Back to menu

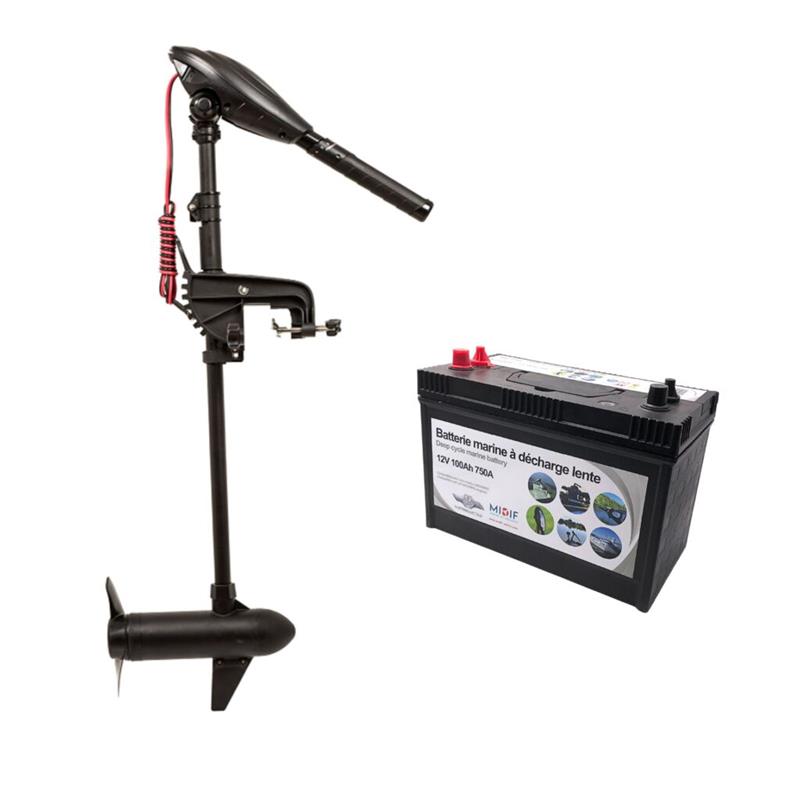

This HASWING Energy pack includes a 12V OSAPIAN 30LBS motor and a slow discharge marine battery from HASWING with double terminals, rated at 12V 100amp.

The Haswing OSAPIAN 30Lbs model, fitted with a 12V motor, stands out for its lightness and compactness, making it easily transportable and simple to handle.

It offers great flexibility thanks to its adjustable height and extendable steering handle, allowing for multi-angular positioning. This motor also has a speed regulator, offering 5 forward speeds and 3 reverse, ensuring comfortable and serene navigation in all waters.

Its charge indicator informs you in real time of the battery level.

Use in fresh and sea water.

Motor Features:
• Osapian 30 Lbs Motor :
• Weight 6.6kg :
• 12 V electric outboard motor, 30 Lbs
• Max. thrust: 30 Lbs
• Amp. (Nominal/max.): 26/30 A
• Power (nominal/max.): 360 W
• Propeller: 2 blades
• Charge indicator level = 5
• Mounting = rear panel 10 positions
• Speed control = 5 forward and 3 reverse
• Shaft length = 76cm

Haswing slow discharge marine battery 2V – 100AH 750A – double terminals:
• Voltage 12V
• Capacity 100amp
• Double connection terminals
• Cold start performances (EN1):750A

Battery Dimensions:
• Length: 330mm
• Width: 173mm
• Height: 240mm
• Weight: 23.5kg

Lead battery maintenance advice:
To keep your lead battery as long as possible, you need to fully recharge it with a suitable and automatic charger after each use. During the winter period without use, it is advised to charge it at least 2 days per month and to store it in a dry and ventilated place protected from frost.

Advice for motor connection on lead battery:

In order to connect the motor cable to your lead battery, use quick connection terminals (not provided) and grease your battery terminals to prevent corrosion.

Motor protection advice:

It is strongly advised to install a 60amp thermal circuit breaker on your supply and on the positive cable of the motor.
