Pack With Marine Battery 12V100amp Haswing Energy Osapian 40 Lbs Avec Batterie Marine 12V100amp

Name: PACK WITH MARINE BATTERY 12V100AMP HASWING ENERGY OSAPIAN 40 LBS AVEC BATTERIE MARINE 12V100AMP
Brand: Haswing
SKU: 362209

Read more-Product description

£329.73

Recommended retail price : £329.73

Shipping within 24h

20 days for returns

Models & specificities

Descriptive

Models & specificities Descriptive

Models & specificities

Back to menu

Reference

Price inc VAT

Shipping

Price inc VAT

18548506

Shipped within

24h

Shipped within

24h

Models & specificities Descriptive

Descriptive

Back to menu

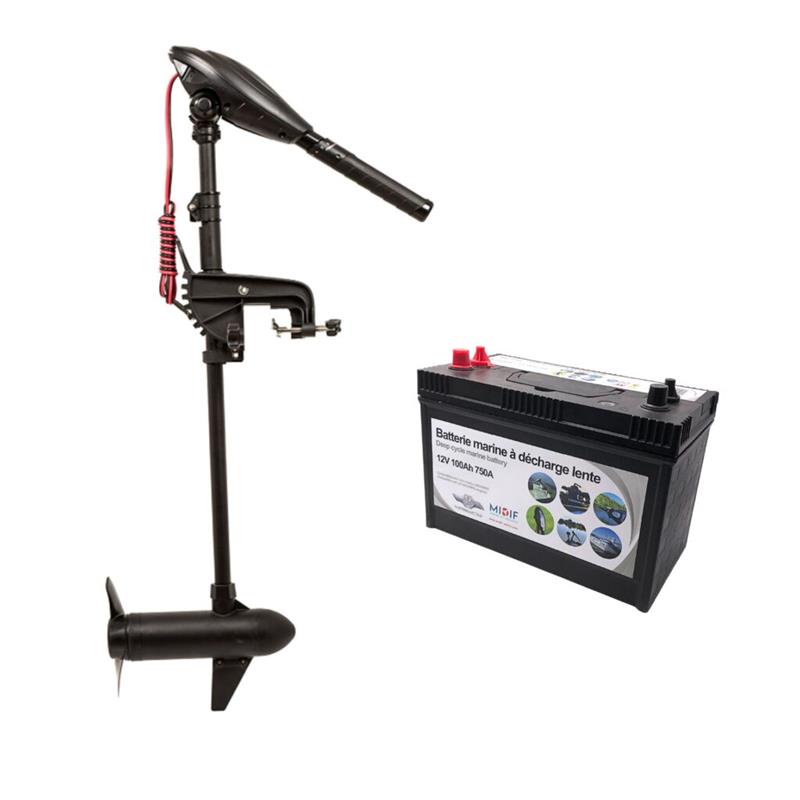

This HASWING Energy pack includes a 12V OSAPIAN 40LBS motor and a 12V 100amp HASWING slow discharge marine battery with dual terminals.

The Haswing OSAPIAN 40Lbs model, equipped with a 12V motor, stands out for its lightness and compactness, making it easily transportable and simple to handle.

It offers great flexibility thanks to its adjustable height and extendable steering handle, allowing multi-angle positioning. This motor also has a speed controller, offering 5 forward speeds and 3 reverse speeds, thus guaranteeing comfortable and serene sailing in all waters.

Its charge indicator informs you in real time of the battery level.

Usable in fresh water and sea water.

Motor Features:
• Osapian 40 Lbs motor:
• Weight 7.1kg:
• 12V 40 Lbs electric outboard motor
• Max thrust: 40 Lbs
• Amp. (Nominal/max): 45/55 A
• Power (nominal/max): 500 W
• Propeller: 2 blades
• Charge indicator level = 5
• Mounting = rear panel 10 positions
• Speed adjustment = 5 forward and 3 reverse
• Length of motor shaft = 90cm

Haswing 2V - 100AH 750A slow discharge marine battery - Double terminals:
• Voltage 12V
• Capacity 100amp
• Double connection terminals
• Cold start performance (EN1): 750A

Battery Dimensions:
• Length: 330mm
• Width: 173mm
• Height: 240mm
• Weight: 23.5kg

Lead battery maintenance advice:
To keep your lead battery as long as possible, you need to fully recharge it with an appropriate automatic charger after each use. During the wintering period without use, it is recommended to charge it at least 2 days a month and to store it in a dry and ventilated place protected from frost.

Motor connection advice on lead battery:

To connect the motor wire to your lead battery, use quick connection terminals (not supplied) and grease the terminals of your battery to prevent corrosion.

Motory protection advice:

It is strongly recommended to install a 60amp thermal breaker on your power supply and on the positive motor wire.

User Manual

Data Sheet

Safety Instructions
